EKI-2701PSI/EKI-2711PSI Startup Manual 1

PoE splitter is powered by PoE and can split PoE input

into individual power output and data output. This device

can easily connect legacy devices like IP cameras or WiFi

Access Points to a PoE network architecture and also

works as a power supply to power up devices where power

is beyond coverage as alternative power source to save

cabling deployment cost.

EKI-2701PSI/EKI-2711PSI plays the role of powered device

(PD) and splits power from PoE to Ethernet devices. In this

case, both power and data can be transmitted up to 100

meters (328 feet) with one single Ethernet CAT5 cable from

power source equipment (PSE) with the power up to 12.95

(EKI-2701PSI)/25 (EKI-2711PSI) watts at 24V

DC

.

Before installation, please make sure that you have re-

ceived the following:

•1 x EKI-2701PSI or EKI-2711 PoE splitter

•1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)

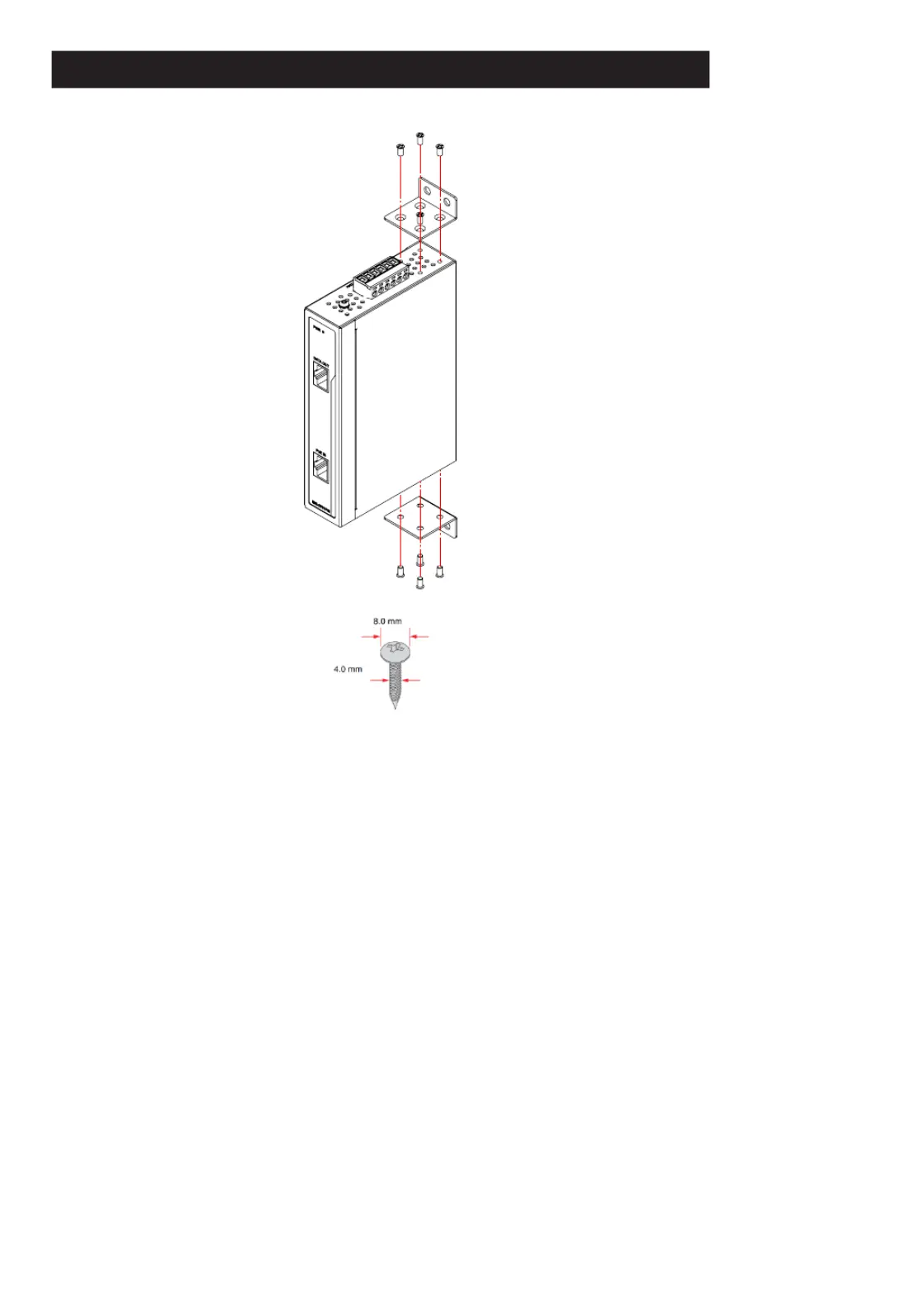

•2 x Wall mounting brackets with 8 screws (M3 x 5L)

•1 x EKI-2701PSI/EKI-2711PSI Startup Manual

If anything is missing or damaged, contact your distributor

or sales representative immediately.

EKI-2701PSI/EKI-2711PSI

Industrial 802.3af/at PoE Splitter

Startup Manual

General

•Compatibility:

-EKI-2701PSI: IEEE 802.3, 802.3u, 802.3ab, 802.3af

- EKI-2711PSI: IEEE 802.3, 802.3u, 802.3ab, 802.3af/at

•LAN:10/100/1000Base-TX

•TransmissionDistance:Up to 100 m

•Connectors: 2 x 10/100/1000Base-T(X) (PoE IN p1-x1 +

DATA OUT X1)

•PowerInput: 44~57V

DC

•PowerOutput:

- EKI-2701PSI: 12.95W@24V

DC

- EKI-2711PSI: 25W@24V

DC

•PowerConsumption:

- EKI-2701PSI: Max. 17.76W

- EKI-2711PSI: Max. 30W

•Dimensions(WxHxD):30 x 140 x 95 mm

•Enclosure:IP30

•OperatingTemperature:-40 ~ 75°C (-40°F ~ 167°F)

•StorageTemperature:-40 ~ 85°C (-40°F ~ 185°F)

•OperatingHumidity:5 ~ 95% (non-condensing)

•StorageHumidity:5 ~ 95% (non-condensing)

•Safety:UL60950 (EKI-2701PSI)

•EMC:CE, FCC Class A

•Warranty: 5 years
