Pagina 1/3

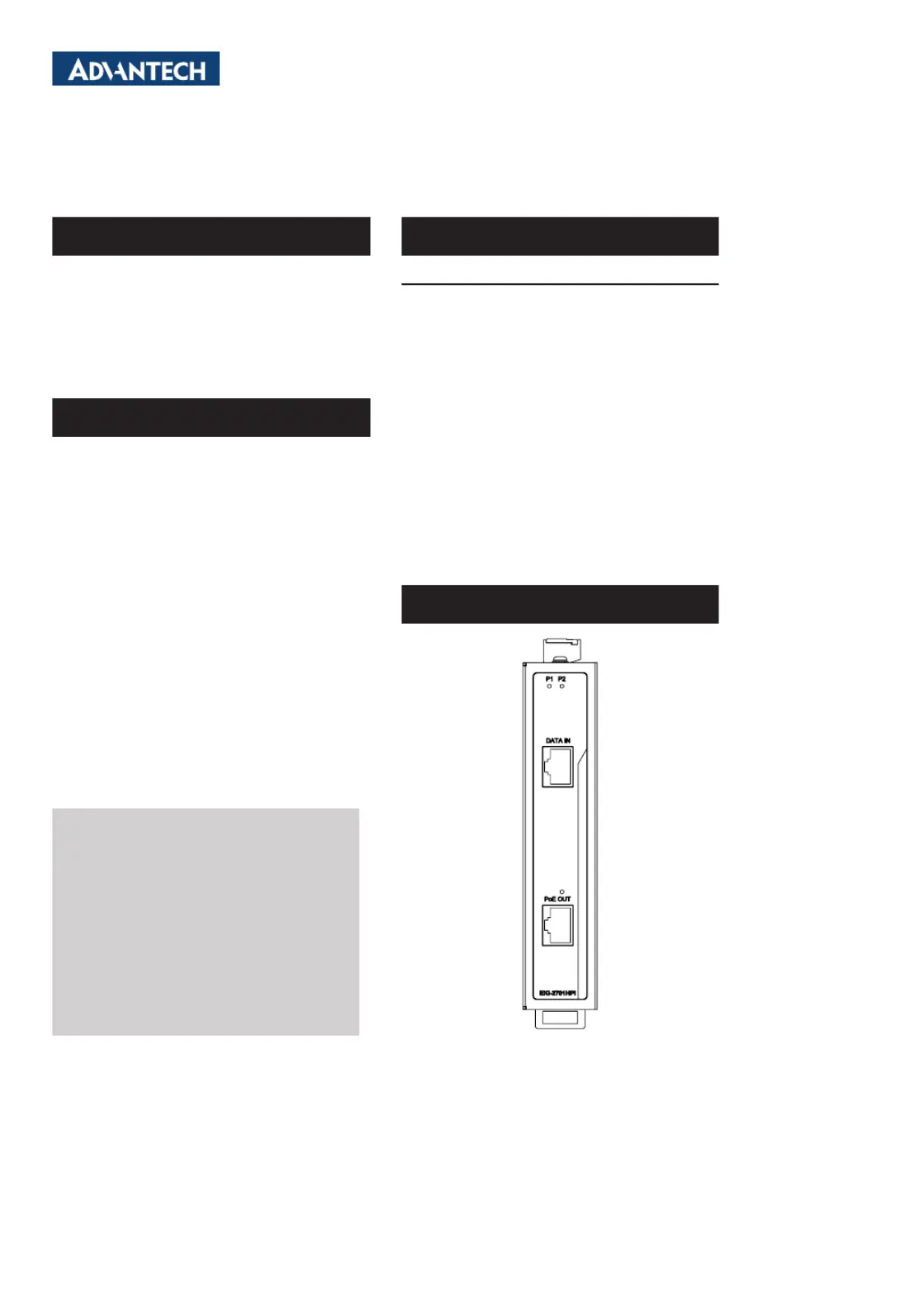

EKI-2701HPI Startup Manual 1
The EKI-2701HPI is a one-port PoE injector designed to
deliver both data and electrical power to Ethernet-enabled
devices using a single Ethernet cable.
Capable of supplying up to 30 watts of power through its
Ethernet port, it can eciently power IEEE 802.3af/at PoE
compliant devices such as wireless access points and IP
cameras, thereby eliminating the need for additional wiring.
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2701HPI PoE Injector
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 8 screws (M3 x 5L)
• 1 x EKI-2701HPI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2701HPI
Industrial IEEE 802.3at Gigabit PoE Injector
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3af,
802.3at
• LAN: 10/100/1000Base-T(X)
• EthernetRJ-45:Up to 100 m
• Connectors:2 x 10/100/1000Base-T(X) (DATA IN p1-x1 +
PoE OUT X1)
• PowerInput:24~48V
DC
, redundant power
• PowerConsumption:33.6W @ 24V
DC
• Dimensions(WxHxD):30 x 140 x 95 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85 °C (-40 ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL508
• EMC:CE, FCC Class A
• Warranty:5 years
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://www.advantech.com/support
This manual is for EKI-270IHPI.
Part No. 2002270101 Edition 1
August 2024
PackingList
Overview
2 EKI-2701HPI Startup Manual
minimum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advan
tech pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de
connecter l’équipement à une prise de
courant. La prise de courant doit avoir une
prise de terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit
être ouvert que par une personne
qualiée.

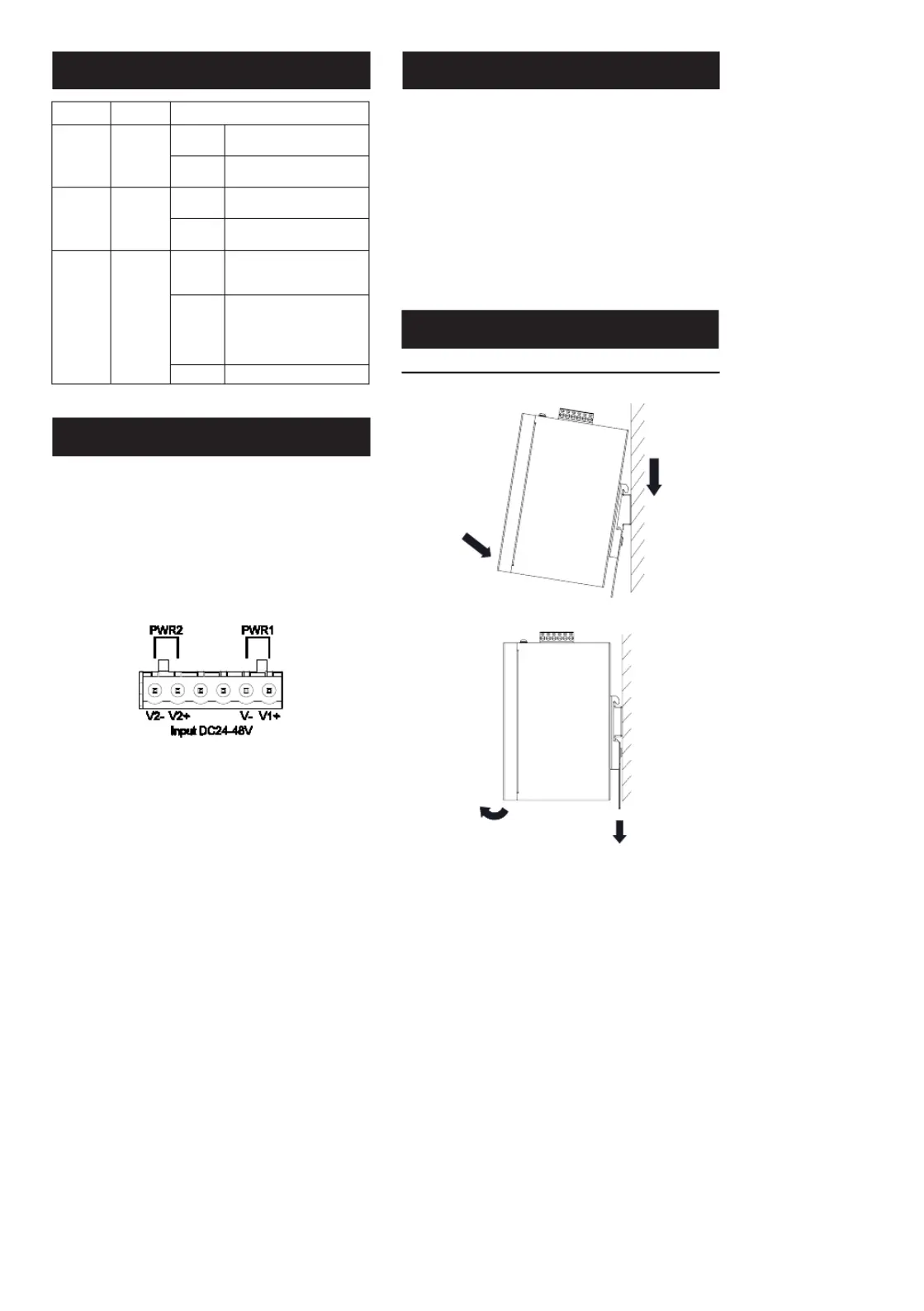

DIN-railMounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
11
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied to
power input.
PoE Green
On
PoE power is being
supplied to the Powered
Device (PD).
Blinking
POE in extreme conditions
(over-load or short or Over
temperature or voltage is
out of range)
No link
O No PoE Output
The EKI-2701HPI injector supports dual +24~48 V
DC
power
inputs. For operation, connecting either power V1 or V2
to the switch is sucient. If both sets are connected, it
enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an
UL certied power supply or DC source suitable
for use at minimum Tma 75 °C whose output
meets SELV or ES1 and is rated at 24-48 Vdc,
0.8A min., if you need further assistance, please
contact Advantech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. The power outlet socket should
have a grounded connection.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by a quali-
ed skilled person.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une
source de courant continu adaptée à une
utilisation à au moins Tma 75 °C dont la
sortie satisfait les conditions SELV ou
ES1 et est évaluée à 24-48Vdc, 0.8A
LEDDenition
PowerConnection
PowerConnection(Cont.)
Mounting
EKI-2701HPI Startup Manual 3

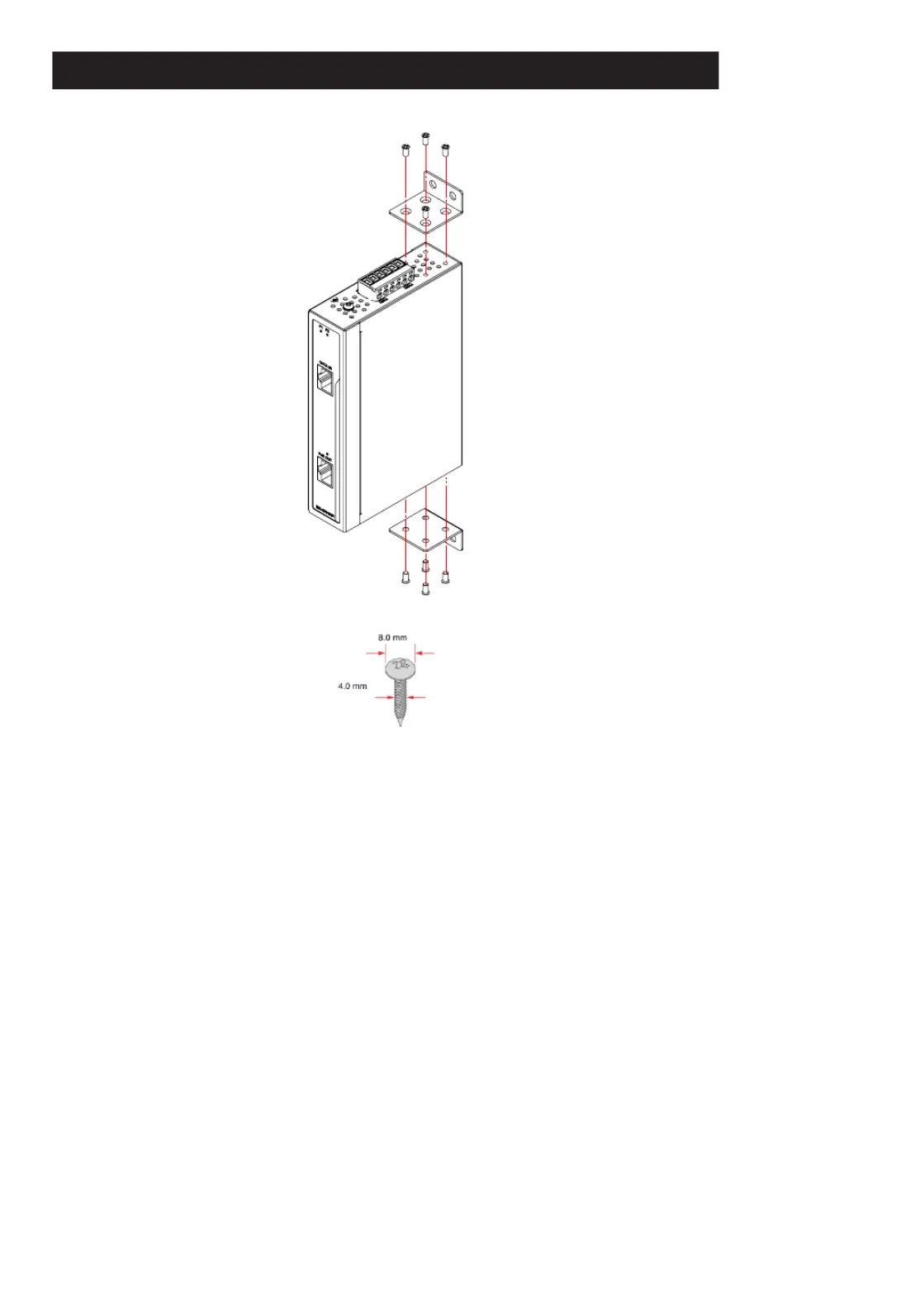

1. Secure the wall brackets to the device with M3 screws, see the following gure. Align the wall mount plate over the screw
on the wall.
2. To mount the wall plate, use screws of the size shown in the following illustration.
Wall Mounting Screw Dimensions
Wall
Mounting
