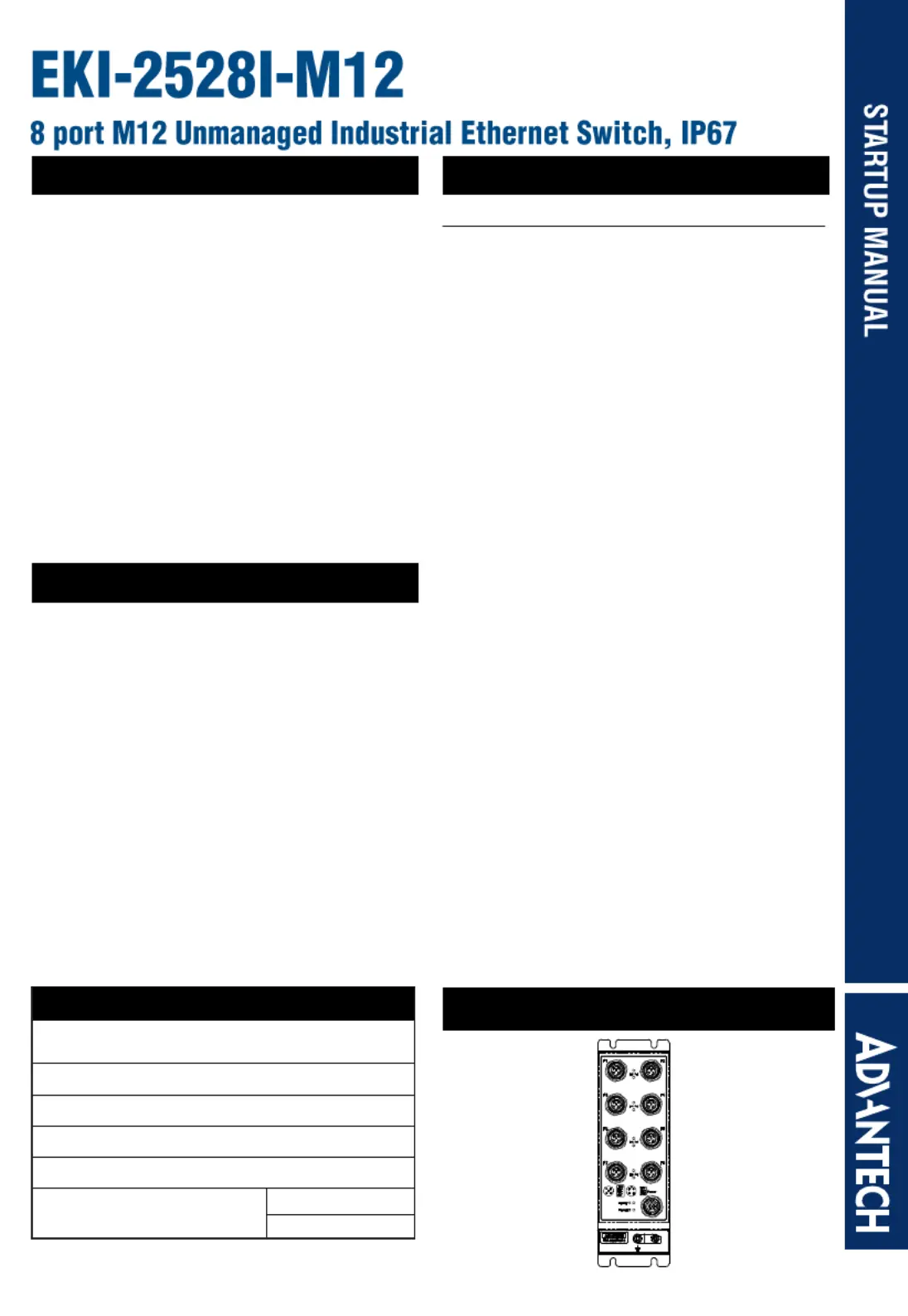

1 Startup Manual

Overview

The EKI-2528I-M12 unmanaged switches are

designed for application in harsh environments. First

of all, the switches provide 8 Fast Ethernet ports with

M12 D-coded connectors which can connect the

cables tightly against vibration and shock. Second,

the switches support 10/100 Mbps, auto MDI/MDI X,

broadcast storm protection. Third, when supporting

wide power input ranging from 12 to 48V with

Polarity Reverse Protection and Overload Current

Resettable Fuse, the EKI-2528I-M12 switches are

robust and economical solutions for your network.

Finally, as the switches are IP67-rated and is

compliant with IEC 61131-2:2017, they are suitable

for PLC application and their associated peripherals.

Packing List

Before installation, please make sure that you have

received the following:









1 x EKI-2528I- Ethernet Switch M12









1 x Bag of Screws for DIN-rail and Grounding









1 x DIN-rail Mounting Kit









1 x EKI-2528I-Startup manual M12

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/products

For technical support and service:

http://www.advantech.com/support/

This startup manual is for EKI-2528I-M12

Part No: 2049252820

1st Edition

March 2019

Specications

General









Compatibility: IEEE 802.3, 802.3u, 802.3x









LAN: 10/100Base- TX









Ethernet RJ-45: Up to 100 m









Connectors:

8 x M12 with D-code

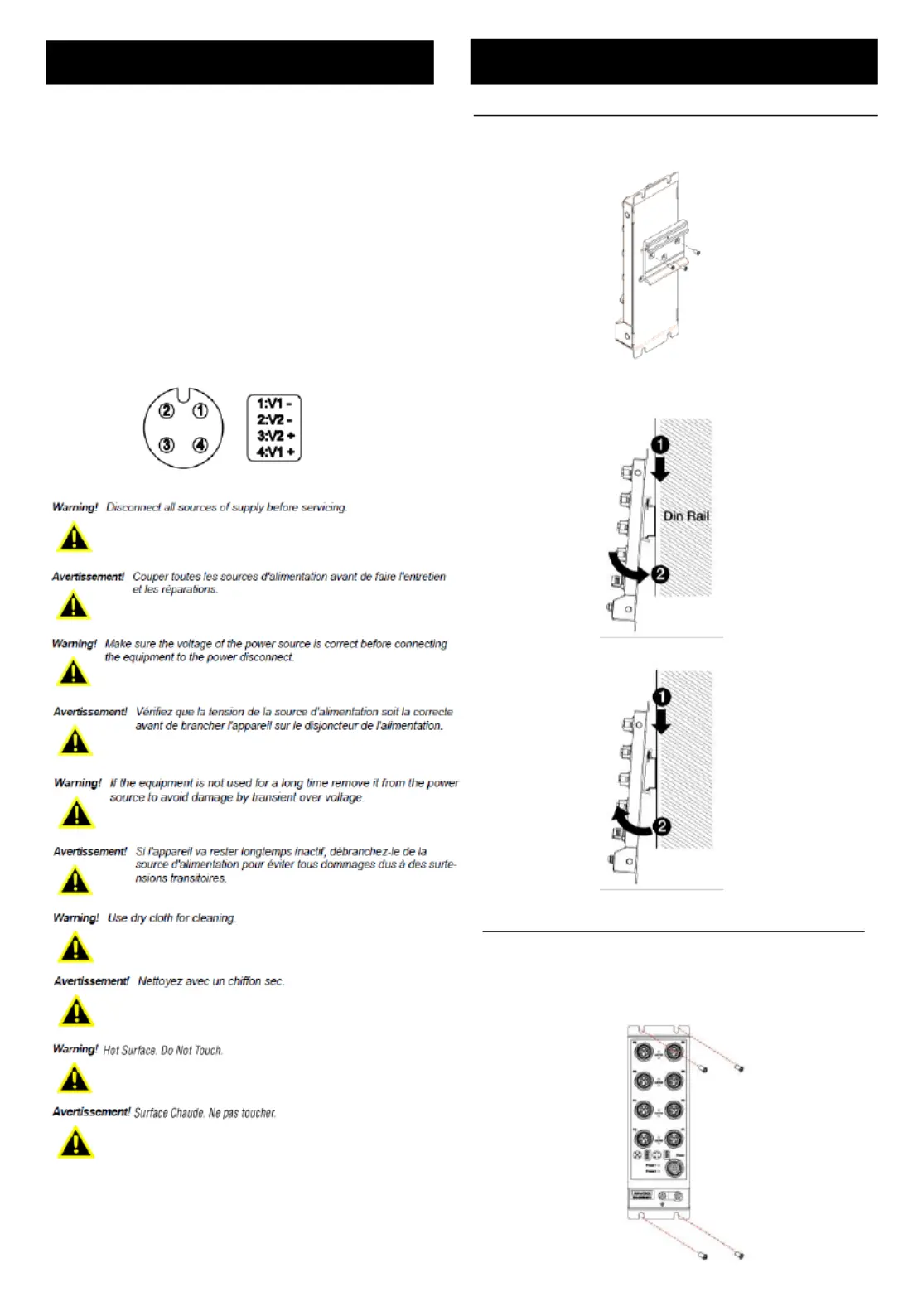

1 x 4-pin M12 A-code for Power Connection









Switch Architecture: Store and Forward









Power Requirement: 12~48V

DC

redundant dual

inputs









Power Consumption: 2 Watts.5









Dimensions (W x H x D): 62 x 194 x 25 mm

(2.44" x 7.63" x 1.00")









Enclosure: IP67









Operating Temperature:

-40 ~ 75 °C (-40 ~ 167 °F)









Storage Temperature:

-40 ~ 85°C (-40°F ~ 185°F)









Operating Humidity: 5 ~ 95% (non-condensing)









Storage Humidity: 5 ~ 95% (non-condensing)









Safety: UL 61010









EMI:

EN 61131-2

CE, CE-LVD, FCC Class A, RCM









EMS:

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

Shock IEC 60068-2- 27

Freefall IEC 60068-2-32









Vibration IEC 60068-2-6: 5g @ -150Hz10









Warranty: 5 years
