ADAM-4520A Startup Manual 1
Before you begin installing your module, make sure that the
following materials have been included:
• ADAM-4520A
• 1 x DIN-rail mounting bracket (attached to module)
• Startup Manual
• 1 x Panel mounting bracket
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
CE Notication
ADAM-4520A, developed by Advantech Co., Ltd. has
passedtheCEtestforenvironmentalspecications.The
test conditions for passing include the equipment being
operatedwithinanindustrialenclosure.Therefore,inorder
to protect the ADAM module from being damaged by ESD,
we strongly recommend the use of CE-compliant industrial
enclosure products.
• Automatic internal RS-485 bus supervision
• NoexternalowcontrolsignalsforRS-485
• Minimum 3000 V
DC
isolation
• Auto detection on baud rate / data format
• Baud rate up to 115.2 kbps
• Networking up to 4000 feet (1200 m)
• Built-in 120-ohm termination resistors
• Poweranddataowindicatorfortroubleshooting
• Power requirement: +10 to +48 V
DC
• Mounts easily on DIN-rail or panel
ADAM-4520A
Robust RS-232 to RS-422/485 Isolated Converter
Startup Manual
ADAM-4520A transparently converts RS-232 signals into
RS-422 or RS-485.
Intelligent RS-485 Control
ADAM-4520A automatically senses the direction of the data
owandswitchestransmissiondirection.
Isolation
TheADAM-4520Aopto-isolatorsprovide3000V
DC
isolation
to protect the host computer from ground loops and voltage
spikes.
Surge Protection
ADAM-4520Aoersinternalsurge-protectiononitsdata
lines. Internal high-speed transient suppressors on each
data line protect the modules from dangerous voltage levels
or spikes.
Common
• Power Requirements: Unregulated +10 to +48 V
DC
• Case: ABS+PC with captive mounting hardware
• Accessories (supplied): DIN-rail mounting adapter,
panel mounting bracket
• Plug-in screw terminal wiring: Accepts AWG 1-#12 to
#22 (0.5 to 2.5 mm)
• Operating Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Humidity: 5 ~ 95%, non-condensing
ADAM-4520A
• Baud rate: 115.2kbps,max.(RTScontrolandRS-422
mode switchable)
• RS-232 Interface: Female DB-9
• RS-422/RS-485 Interface: Plug-in screw terminal
• Power Consumption:
Typical:0.6W@24V
DC
Max.:0.8W@24V
DC
• Isolation Voltage: 3000 V
DC
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/
For technical support and service:
http://www.advantech.com/support/
ThisstartupmanualisforADAM-4520A.
Part No. 2043452000 Edition 1
November 2022
Declaration of Conformity
Overview
Specications
Features

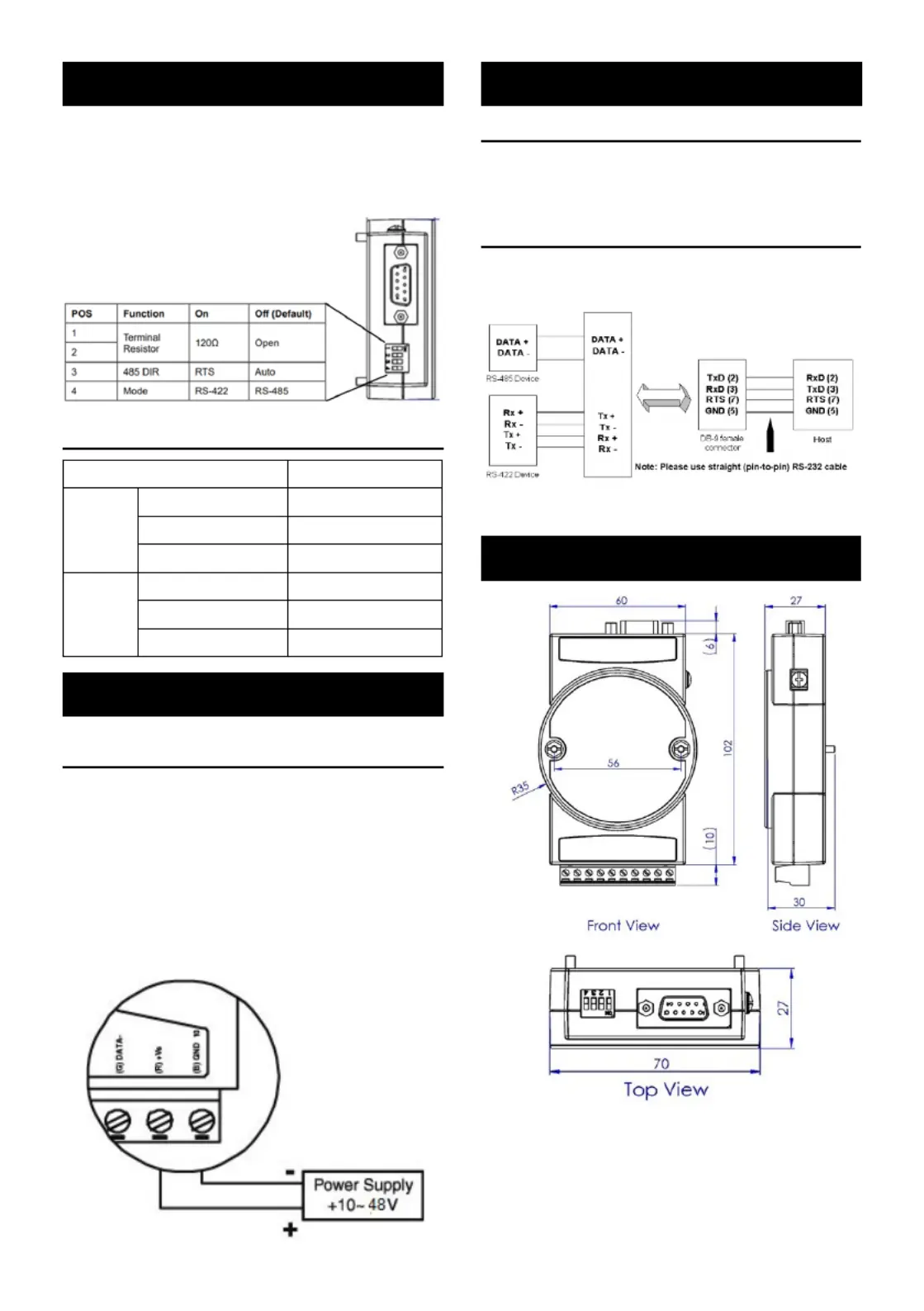

2 ADAM-4520A Startup Manual
TheDIPswitch(SW1)onthetopofADAM-4520Asets
terminal resistors, RS-485 direction, and RS-422/RS-485
mode.
PleaserefertothetablebelowtondtheSW1position
denitions.
ADAM-4520A
Data Flow Direction Indicator LED Status
RS-485
Idle Green
RS-232→RS-485 Dark
RS-485→RS-232 Red
RS-422
Idle Dark
RS-232→RS-422 Green
RS-422→RS-232 Red
Power Supply
ADAM modules are designed to accept industry standard
+24 VDC unregulated power. Operation is guaranteed when
using any power supply between +10 and +48 V
DC
. Power
ripples must be limited to 200 mV peak-to-peak while the
voltage in all cases must be maintained between +10 to +48
V
DC
.Allpowersupplyspecicationsarereferencedatthe
moduleconnector.Thepowercablesshouldbeselectedac-
cording to the number of modules connected and the length
of the power lines. When using a network with long cables,
we advise the use of thicker wire to limit the line voltage
drop. In addition to serious voltage drops, long voltage lines
can also cause interference with communication wires.
Communication Wiring
We recommend that shielded twisted-pair cables that com-
ply with the EIA RS-485 standard be used with the ADAM
network to reduce interference. Only one set of twisted-pair
cablesisrequiredtotransmitbothdataandRTSsignals.
Basic Conguration Hook-Up
Before placing a module in an existing network, the module
shouldbeproperlycongured.Thetwofollowingdiagrams
show typical layouts for both modules.
ADAM-4520A Connection Diagram
Application Wiring
ADAM Dimensions
Switch Settings Application Wiring (Cont.)
ADAM-4520A Startup Manual 3

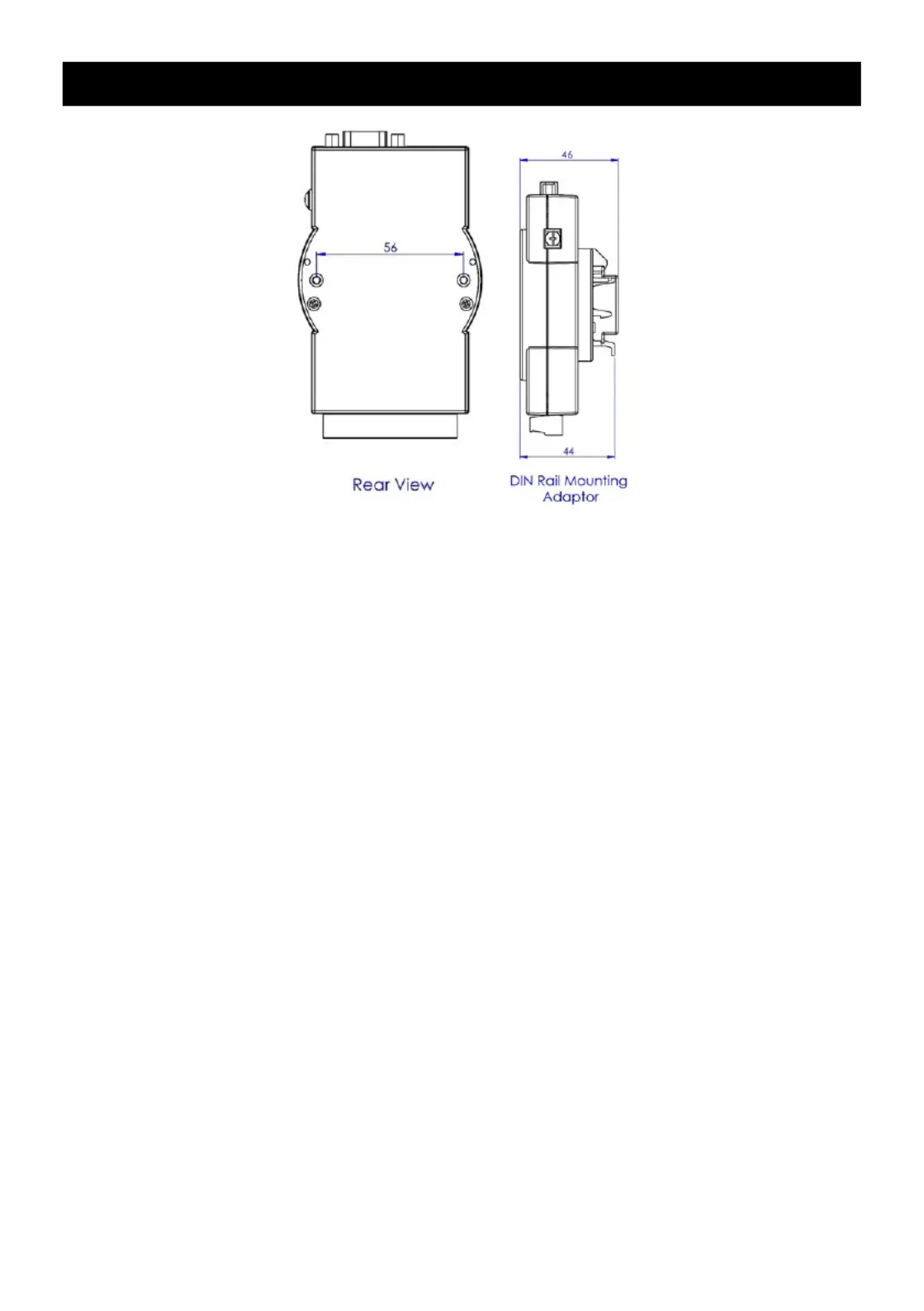

ADAM Dimensions
(Cont.)
