AIMC-3403 Startup Manual 1

Before you begin installing your cards and peripherals,

please make sure that the following items have been

shipped:

AIMC-3403 barebone system x 1

Startup manual for AIMC-3403 x 1 P/N: 2041340300

Startup manual for AIMB-505 x 1 P/N: 2006050510

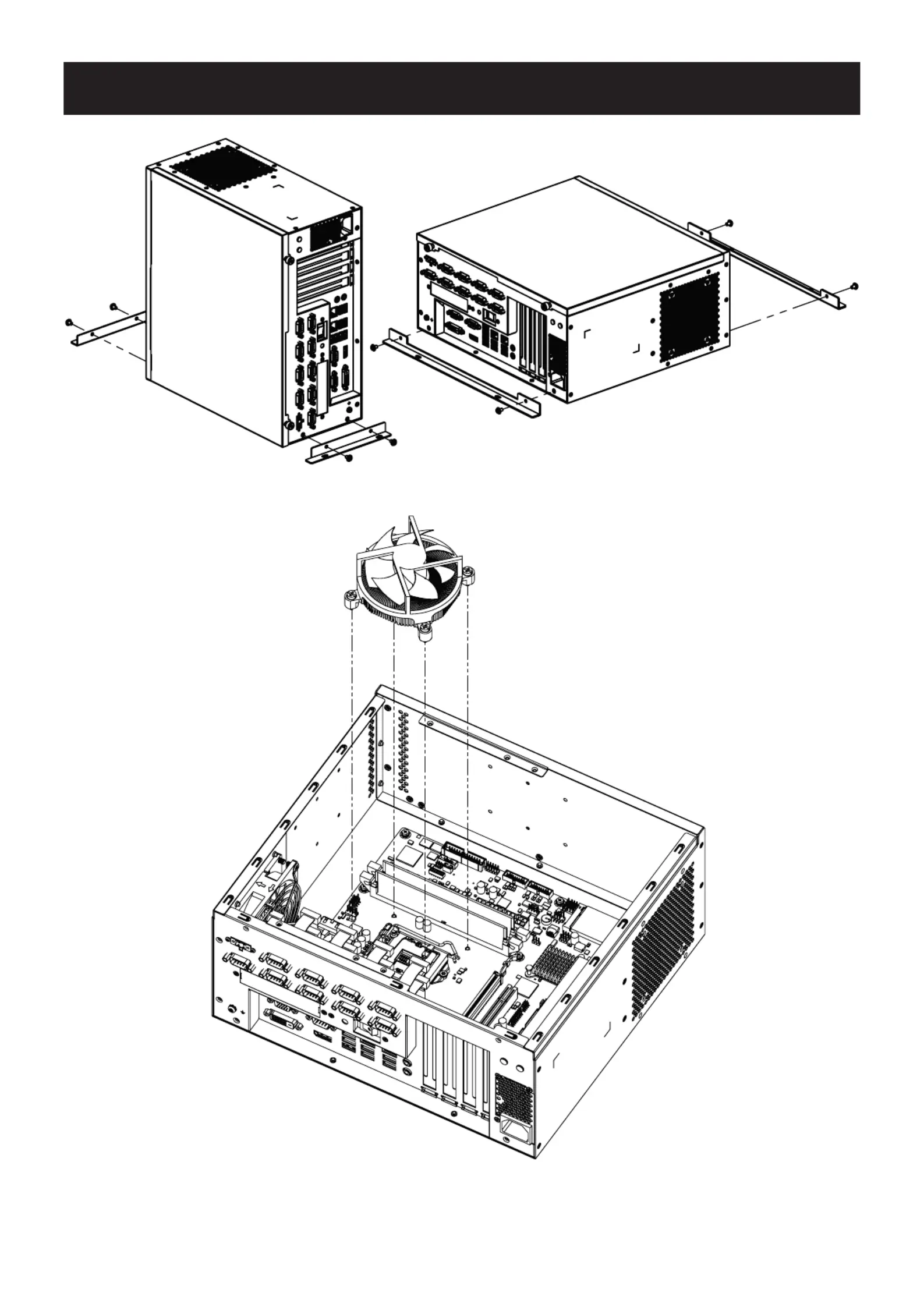

Short mounting bracket x 2 P/N: 960062229N000

Long mounting bracket x 2 P/N: 960065577N000

M4 screws for mounting bracket x8

P/N: 1939000410

M3 screws for HDD x8 P/N: 1930000313

Rubber for HDD x8 P/N: 1990001365

Rubber for chassis stands p1-x4 PN: 1990032090S000

AIMC-3403 Front Access Micro Computer

Startup Manual

Processor System

Intel® 6th/7th generation Core™ i socket CPU

(LGA1151)

Memory

Supports dual channel 288-pin DDR4 2400MHz SDRAM.

16 GB per slot without ECC function; Max. capacity is

32GB

Graphics

Integrated Intel HD Graphics

Ethernet

Interface: 10/100/1000 Mbps

Controller: 2 x Realtek RTL8111G

Drive Bay

2 x 3.5” HDD, SATA 3.0

1 x mSATA

Front I/O

Display:

- 1 VGA, Max. resolution 1920x1200 @ 60Hz

- 1 DVI-D, Max. resolution 1920x1200 @ 60Hz

- 1 DP, Max. resolution 4096x2304 @ 60Hz

- Supports dual display (DP+DVI-D, DP+VGA or DVI-

D+VGA)

USB: 4 USB3.0, 4 USB2.0

Serial: 2 x RS-232/422/485, 8x RS -232

5HPRWH6ZLWFKRQRႇ 2-pin terminal block

Audio: Line-out/Mic-in

Expansion Slots

1z PCIe x16 (Gen.3), 2 x PCIe p1-x1 (Gen.2), 1 x PCI,

1 x Full-Size mini-PCIe (supports mSATA)

Power Supply

Output rating: AC 250W ATX PSU embedded

Input Voltage: 100 VAC ~ 240 VAC

Miscellaneous

LED Indicators: Power, HDD

Control: 3RZHURQRႇVZLWFKUHVHWEXWWRQ

Environments

Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity: 95% @ 40° C (non-condensing)

Physical Characteristics

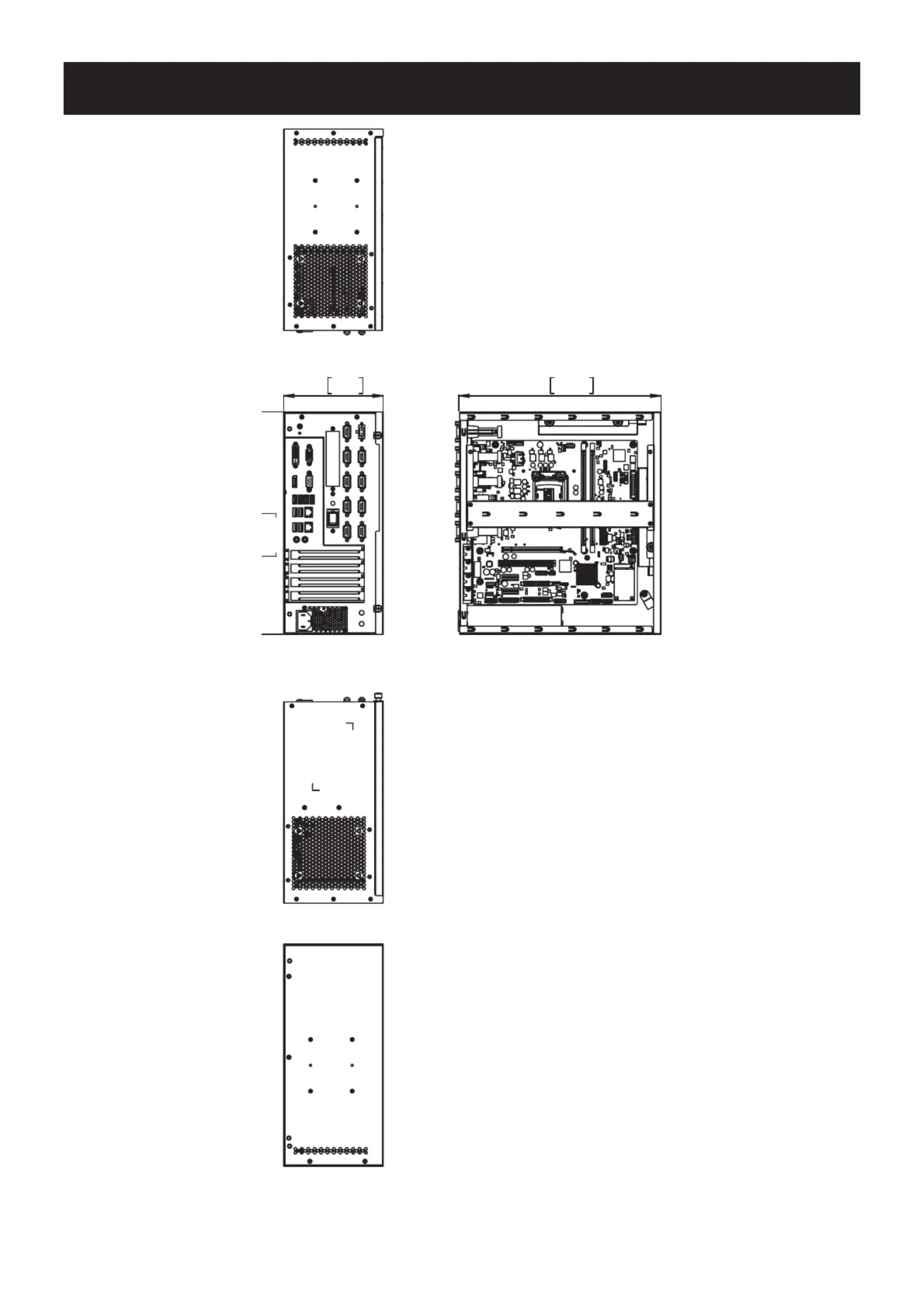

Dimensions (WxHxD): 330 x 148 x 300 mm

Weight: 6.3 kg (13.89 lbs)

Packing List

For more information on this and other Advantech

products,

please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website for AIMC-3403 at:

http://advt.ch/AIMC3403

Part No. 2041340300 1st Edition

Printed in China July 2020

6SHFL¿FDWLRQV
