AIMB-789 Startup Manual 1
AIMB-789 LGA1851 Intel
®
Core™ Ultra (Series 2) ATX
Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
Startup Manual
Specications (Cont.) Packing List
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-789 at:
https://advt.ch/aimb789espt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-789 series Rev. A1, and all
specications are subject to the datasheet on the ocial
website. The information in this manual is subject to
change without notice.
Part No. 2041078900
Printed in China
1st Edition
Feb 2025
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe and PCI slots: One PCIe x16 Gen 5 expansion
slot, one PCIe p1-x8 expansion slot (Gen 4 p1-x4 link), three
PCIe p1-x4 (Gen 4) expansion slots (Gen 4 p1-x4 link), one
PCIe p1-x1 Gen4 expansion slot, and one PCI slot.
• USB 3.2/2.0: 6 USB 3.2 Gen 1 ports (4 rear, 2 via
header), 7 USB 2.0 ports (4 rear, 2 via header, 1 internal
Type-A).
• Serial port: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with BIOS menu
options.
• SPI interface: Advantech-designed SPI connector sup-
ports optional dTPM 2.0 module.
• Watchdog timer: 255 timer level intervals.
Graphics Interface
• Chipset: CPU integrated graphics controller.
• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz
refresh rate.
• HDMI: Resolution up to 3840 x 2160 @ 30 Hz refresh
rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet Interface
• Interface: 10/100/1000 Mbps.
• Controller: LAN1: Intel
®
I219-LM; LAN2: Intel
®
I210-AT.
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
• Power consumption: Intel® Core™ Ultra 65W; DDR5
32 GB x 4
Maximum: +3.3 V at 7.35 A, +5 V at 3.45 A, +12 V at 0.21
A, +5 Vsb at 0.23 A, -12 V at 0.06 A
• Operating temperature: 0 ~ 60°C (depending on CPU
loading and thermal solution)
• Weight of board: 0.7 kg (1.54 lb)
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-789 motherboard
• 1 x AIMB-789 startup manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard Functions
• CPU: LGA1851 socket supporting Intel
®
Core™ Ultra
(Series 2) Desktop Processors.
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel
®
Q870 PCH
Note: Legacy platforms are not supported.
• System memory: Up to 192 GB in four 288-pin DIMM
sockets, supporting dual-channel DDR5 4400 SDRAM.
AIMB-789 supports non-ECC unbuered DIMMs
• M.2 socket: M.2 socket supports up to PCIe p1-x4 Gen 5
M-Key 2280 type storage devices.
Specications
2 AIMB-789 Startup Manual
The board has a number of jumpers that allow you to con-
gure your system to suit your application. The table below
lists the function of each jumper and connector.

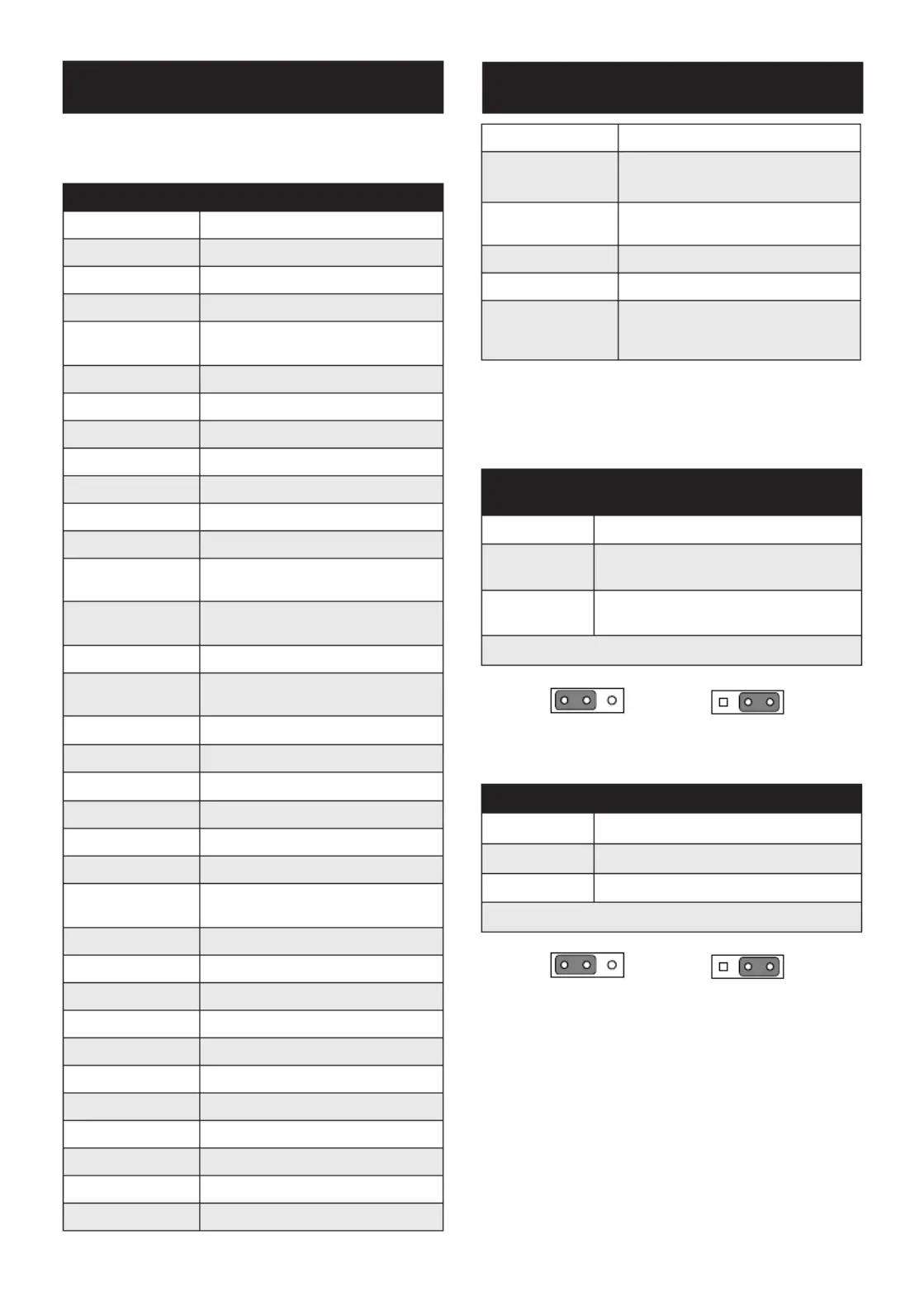

Connector/Jumper List
Label Function
LAN1 ~ LAN2 GbE LAN
USB3C1 USB 3.2 Gen 1 port *2
USB3C2 USB 3.2 Gen 1 port *2
USB3H1
USB 3.2 Gen 1 port *2
(20-pin header)
USB2C1 USB 2.0 port *4
USB2A1~USB2A2 USB 2.0 port (internal Type-A)
USB2H1 USB 2.0 port *2 (10-pin header)
VGA1 VGA connector
COM1 Serial port: RS-232 (DB-9 connector)
HDMI1 HDMI connector
DP1 DP connector
COM2,
COM4 ~ COM6
Serial port: RS-232 (9-pin header)
COM3
Serial port: RS-232/422/485 (9-pin
header)
CPUFAN1 CPU fan connector (4-pin)
SYSFAN1 ~
SYSFAN3
System fan connector (4-pin)
JFP1 + JFP2 Front panel connector
AUDIO1+AUDIO2 Audio connector (Line Out, Mic In)
VOLT1 Alarm board power connector
JCASE1 Case open connector
LANLED1 Front panel LAN indicator connector
NVME1 M.2 2280 M-Key socket
NVME2
M.2 2280 M-Key socket (Only on the
AIMB-789-1 version)
SATA4 ~ SATA7 Serial ATA 3.0 port
PCIE1 PCIe x16 slot (Gen 5)
PCIE2 PCIe p2-x4 slot (Gen 4)
PCIE3 PCI slot
PCIE4 PCIe p2-x1 slot (Gen 4)
PCIE5 PCIe p2-x4 slot (Gen 4)
PCIE6 PCIe p2-x8 slot (x4 Gen 4 link)
PCIE7 PCIe p2-x4 slot (Gen 4 link)
DIMMA1 Channel A DIMM1
DIMMA2 Channel A DIMM2
DIMMB1 Channel B DIMM1
DIMMB2 Channel B DIMM2
ATX12V1+
ATX12V2
ATX 12 V auxiliary power connector
(for CPU)
EATXPWR1
ATX 24-pin main power connector
(for system)
GPIO1 8-bit GPIO from super I/O
SMBUS1 SMBus connector from PCH
SPI_TPM1
SPI (Serial Peripheral Interface)
connector for Advantech dTPM 2.0
module.
Note: The PCIE1&PCIE2 slots can only support graph-
ics cards and storage cards according to the
specication recommended by Intel. Other types
of add-on cards might not work properly.
JCMOS1: CMOS clear data
JME1: Intel® ME update
Closed Pins Result
1-2
*Keep CMOS data
*Enable ME update
2-3
Clear CMOS data
Disable ME update
* Default
*Keep CMOS data Clear CMOS data
*Enable ME update Disable ME update
PSON1: ATX/AT mode selection
Closed Pins
Result
1-2 AT mode
2-3 *ATX mode
* Default
AT mode *ATX mode
123
123
123
123
Jumpers and Connectors
Jumpers and Connectors (Cont.)
AIMB-789 Startup Manual 3

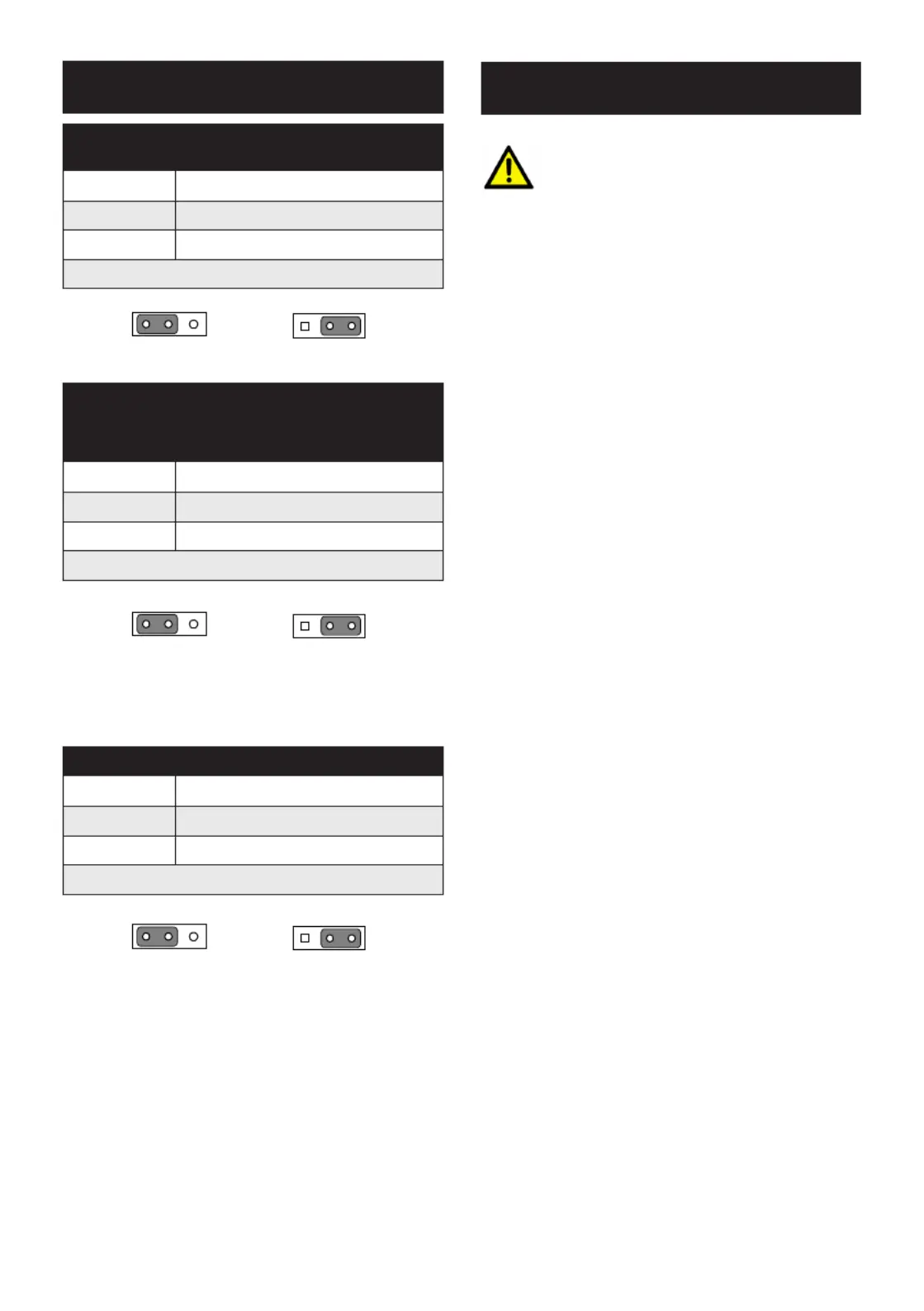

JUSB_2 (onboard USB): USB power source switch
between +5V and +5V_DUAL
Closed Pins
Result
1-2 *USB +5V_DUAL power
2-3 USB +5V power
* Default
*USB +5 V_DUAL power USB +5 V power
SMB1 (clock), SMB2 (data): PCIe SMBus connection
setting for PCIE3~PCIE6 slots
SMB3 (clock), SMB4 (data): PCIe SMBus connection
setting for PCIE1 &PCIE2 slots
Closed Pins
Result
1-2 *Enable PCIe SMBus connection
2-3 Disable PCIe SMBus connection
* Default
*Enable PCIe SMBus connection Disable PCIe SMBus connection
Note: SMB1+SMB2 or SMB3+SMB4 jumpers should
be switched to the same setting, either 1-2
closed or 2-3 closed.
JFV1: VGA dummy load setting
Closed Pins
Result
1-2 Enable VGA dummy load
2-3 *Disable VGA dummy load
* Default
Enable VGA dummy load *Disable VGA dummy load
Note: It is recommended to leave this function disabled
if you use DVI/DP as your main display.
123
123
123
123
123
123
Caution: The computer is supplied with a battery-powered
realtime clock circuit. There is a danger of
explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Discard
used batteries according to the manufacturer’s
instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Jumpers and Connectors (Cont.)
Declaration of Conformity
