ADAM-4510_4510S_4520 Startup Manual 1
Before you begin installing your module, make sure that the
following materials have been included:
• 1 x ADAM-4510, 4510S, 4520
• 1 x DIN-rail mounting bracket (attached to module)
• 1 x ADAM-4510/4510S/4520 Startup Manual
• 1 x Panel mounting bracket
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
CE Notication
ADAM-4510, 4510S and 4520 developed by Advan-
tech Co., Ltd. has passed the CE test for environmental
specications.Thetestconditionsforpassingincludingthe
equipment being operated within an industrial enclosure.
Therefore,inordertoprotecttheADAMmodulefrombeing
damaged by ESD, we strongly recommend that the use of
CE-compliant industrial enclosure products.
• Automatic internal RS-485 bus supervision
• NoexternalowcontrolsignalsforRS-485
• Minimum 3000 V
DC
isolation (4510S/4520)
• TransientsuppressiononRS-485datalines
• Baudrate up to 115.2 kbps
• Networking up to 4000 feet (1200 m)
• Reserved space for termination resistors
• Poweranddataowindicatorfortroubleshooting
• Power requirement: +10 to +30 V
DC
• Mounts easily on DIN-rail or panel
ADAM-4510 RS-422/RS-485 Repeater
ADAM-4510S Isolated RS-422/485 Repeater
ADAM-4520 Isolated RS-232 to RS-422/485 Converter
Startup Manual
ADAM-4520 transparently converts RS-232 signals into
RS-422orRS-485.ADAM-4510/4510Sampliesexisting
RS-485 signals.
Intelligent RS-485 Control
ADAM-4510, 4510S, and 4520 automatically senses the di-
rectionofthedataowandswitchestransmissiondirection.
Isolation (ADAM-4510S/4520 only)
ADAM-4510S and 4520’s Opto-isolators provide 3000 V
DC
isolation to protect the host computer from ground loops
and voltage spikes.
Surge Protection
ADAM-4510/4510Sand4520oerinternalsurge-protection
on their data lines. Internal high speed transient suppres-
sors on each data line protect the modules from dangerous
voltages levels or spikes.
Common
• Power Requirements: Unregulated +10 to +30 V
DC
• Case: ABS+PC with captive mounting hardware
• Accessories (supplied): DIN-rail mounting adapter,
panel mounting bracket
• Plug-in screw terminal wiring: Accepts AWG 1-#12 to
#22 (0.5 to 2.5 mm)
• Operating Temperature: -10~70°C (14~158° F)
• Storage Temperature: -25 ~ 85°C (-13~185° F)
• Humidity: 5 ~ 95%, non-condensing
ADAM-4510/4510S
• Baudrate (bps): 1200, 2400, 4800, 9600, 19.2 k, 38.4
k, 57.6 k, 115.2 k, RS-422 (switchable)
• Isolation Voltage: 3000 V
DC
(4510S only)
• RS-422/RS-485 Interface: plug-in screw terminal
• Power Consumption:
- ADAM-4510
Typical:1.1W@24V
DC
Max.:1.2W@24V
DC
- ADAM-4510S
Typical:1.5W@24V
DC
Max.:1.6W@24V
DC
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
ThisstartupmanualisforADAM-4510,4510S,4520.
Part No. 2003452014 Edition 9
March 2022
Declaration of Conformity
Overview
Specications
Declaration of Conformity

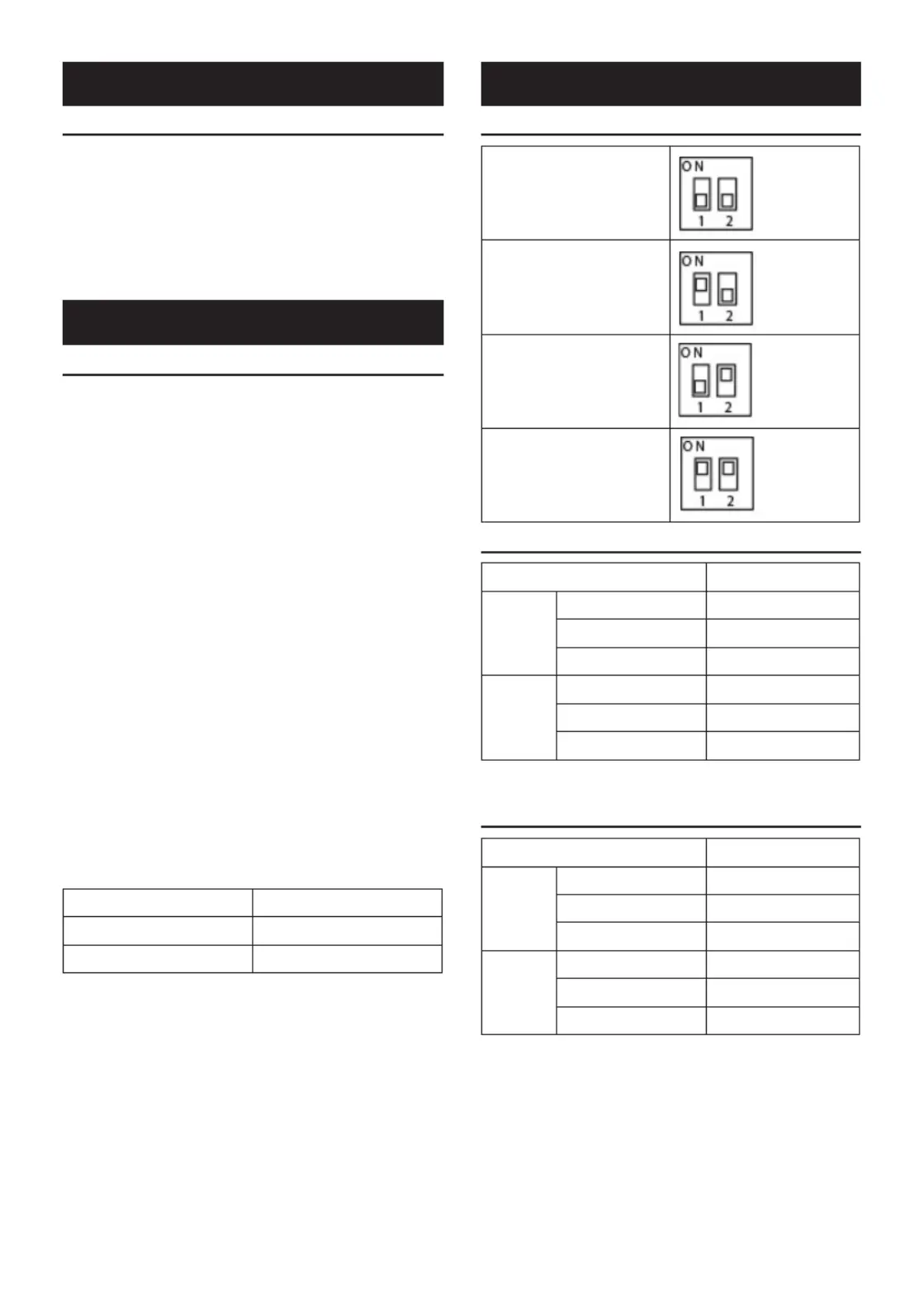

2 ADAM-4510_4510S_4520 Startup Manual
ADAM-4520
• Baudrate (bps): 1200, 2400, 4800, 9600, 19.2 k,
38.4k,57.6k,115.2k,RTScontrolandRS-422mode
(switchable) Isolation Voltage: 3000 V
DC
(4520 only)
• RS-232 Interface: Female DB-9
• RS-422/RS-485 Interface: Plug-in screw terminal
• Power Consumption:
Typical:0.8W@24V
DC
Max.:1W@24V
DC
Intelligent RS-485 Control
DIP switches in the ADAM converter and repeater modules
set the data format (number of bits) and baudrate for the
ADAM network. You need to unpack ADAM module case
to see the switches and jumpers. Your program and the
PC’s serial port should match the setting on the converter
and repeater modules. When you change the setting on the
converter or repeater module, please remember to change
the data format or baudrate for all the connected modules
accordingly.
SW1
Switch 1 controls the data format. Data can be 9, 10, 11
or12bits.Thefactorydefaultis10bits:onestartbit,eight
data bits, no parity bit and one stop bit.
When using the converter in combination with other ADAM
modules, do not change the default setting as ADAM mod-
uleshaveaxeddataformatoftendatabits.Theoptionof
changing to 9, 11 or 12 bits is for use with other modules
thathavedierentdataformats.
SW2
Switch2setsthebaudrate.Theoptionsrangefrom1200
bpsto115.2kbps.Thedefaultis9600bps.IftheRS-422
mode is ON, the rate doesn’t need to be set.
Default Settings
Since these modules are not addressable by the host com-
puter, the baud rate and data format must be set using SW1
and SW2 located inside the module.
Thedefaultsettingsare:
Function Setting
Baud rate 9600 bps
Data format 10 bits
Specications (Cont.)
Data Format Settings (SW1)
9 bits
10 bits
(default)
11 bits
12 bits
ADAM-4510/4510S
Data Flow Direction Indicator LED Status
RS-485
Idle Green
DATA0→DATA1 Dark
DATA0←DATA1 Red
RS-422
Idle Green
Tx0→Rx1 Dark
Rx0←Tx1 Green+Red
Refer to: Figure 2 ADAM-4510/4510S Connection Diagram
ADAM-4520
Data Flow Direction Indicator LED Status
RS-485
Idle Green
RS-232→RS-485 Dark
RS-485→RS-232 Red
RS-422
Idle Dark
RS-232→RS-422 Green
RS-422→RS-232 Red
Switch Settings (Cont.)
Switch Setting

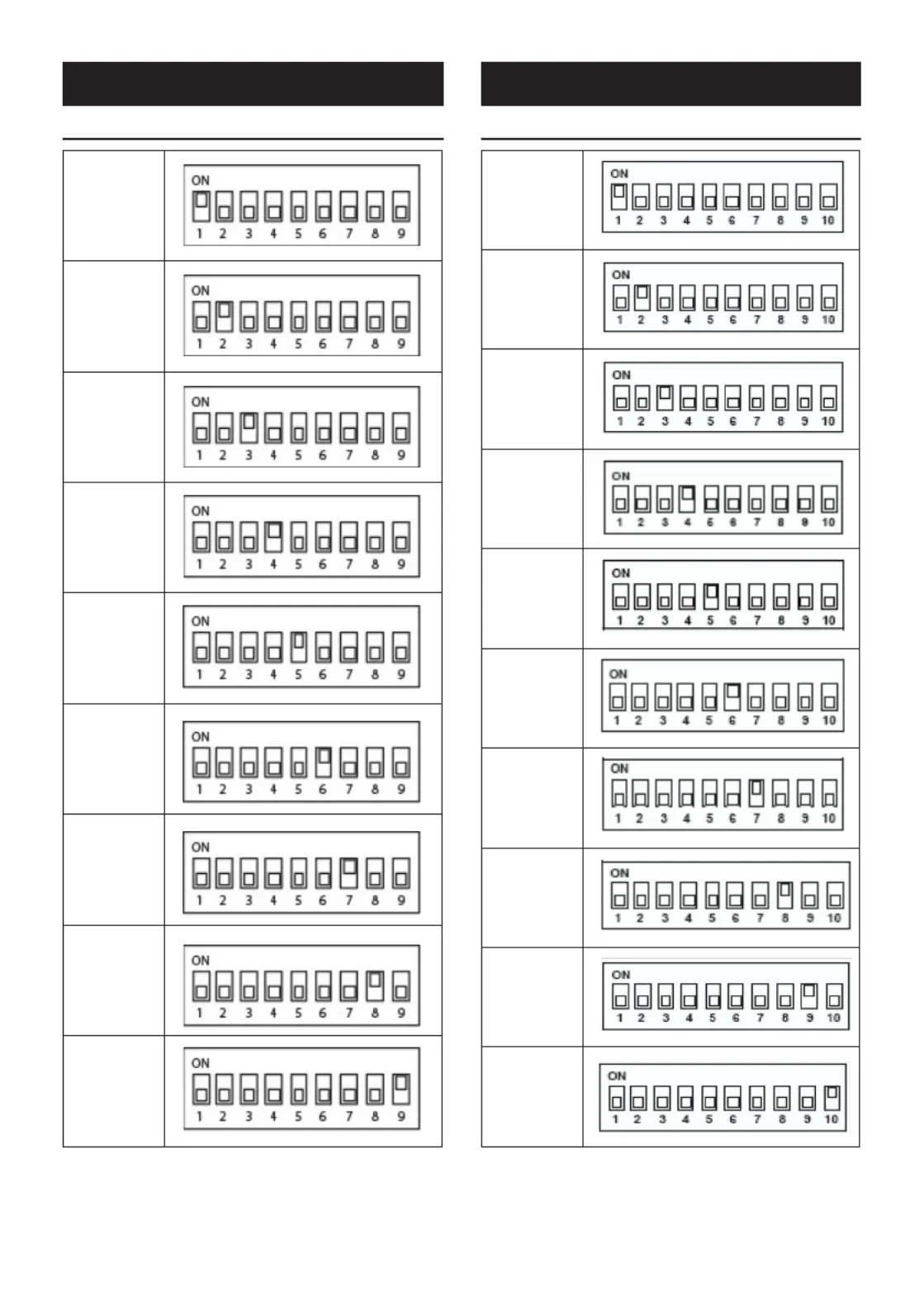

ADAM-4510_4510S_4520 Startup Manual 3
ADAM-4510/4510S Repeater Module
1200 bps
2400 bps
4800 bps
9600 bps
(Default)
19.2 kbps
38.4 kbps
57.6 kbps
115.2 kbps
RS-422
Switch Setting
(Cont.)
ADAM-4520 Converter Module
RTSControl
1200 bps
2400 bps
4800 bps
9600 bps
(Default)
19.2 kbps
38.4 kbps
57.6 kbps
115.2 kbps
RS-422
Switch Setting
(Cont.)
