Startup Manual 1
Packing List
Before installation, make sure that you have
received the following:
• ADAM-3651 Product
• ADAM-3651 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Specications
System Functions
• Digital Input Channels: 8 differential
• Input Type: Sink(Wet contact)/Counter
• Wet Contact Input: Logic Level 0: 0 ~ +5 V
Logic Level 1: +11~30 V
• Rated Voltage: 12/24 V
DC
• Rated Input Current: >5mA@12 V
DC
>10mA@24 V
DC
• Pulse Input Frequency 150Hz
• Over Voltage Protection: +40 V
DC
• Isolation Voltage: 2,000 V
DC
• Power Consumption: 1 w
• Operating Temp.:-40 ~ 70°C
• Warranty: 2 years
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3651.
Part No: 2003A651001st Edition
October 2015
STARTUP MANUAL
ADAM-3651
8-ch Digital Input Module

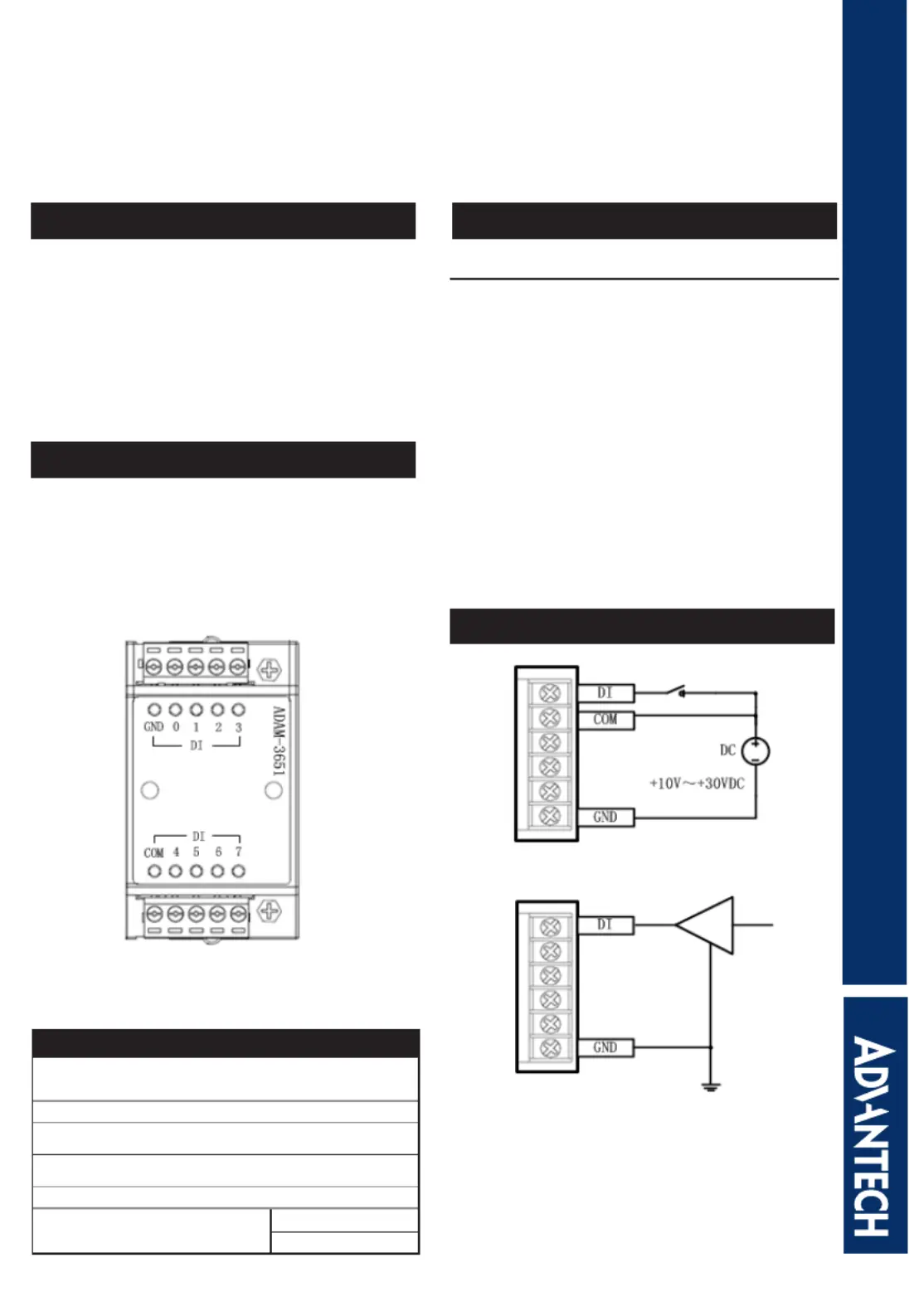

Application Wiring
Overview
The ADAM-3651 provides 8-ch isolated digital
input for users to determine the state of limit
switches or receive remote digital signals. This
module can be used with ADAM-3600 Series In-
telligent remote terminal unit, with wide tempera-
ture range and wireless function

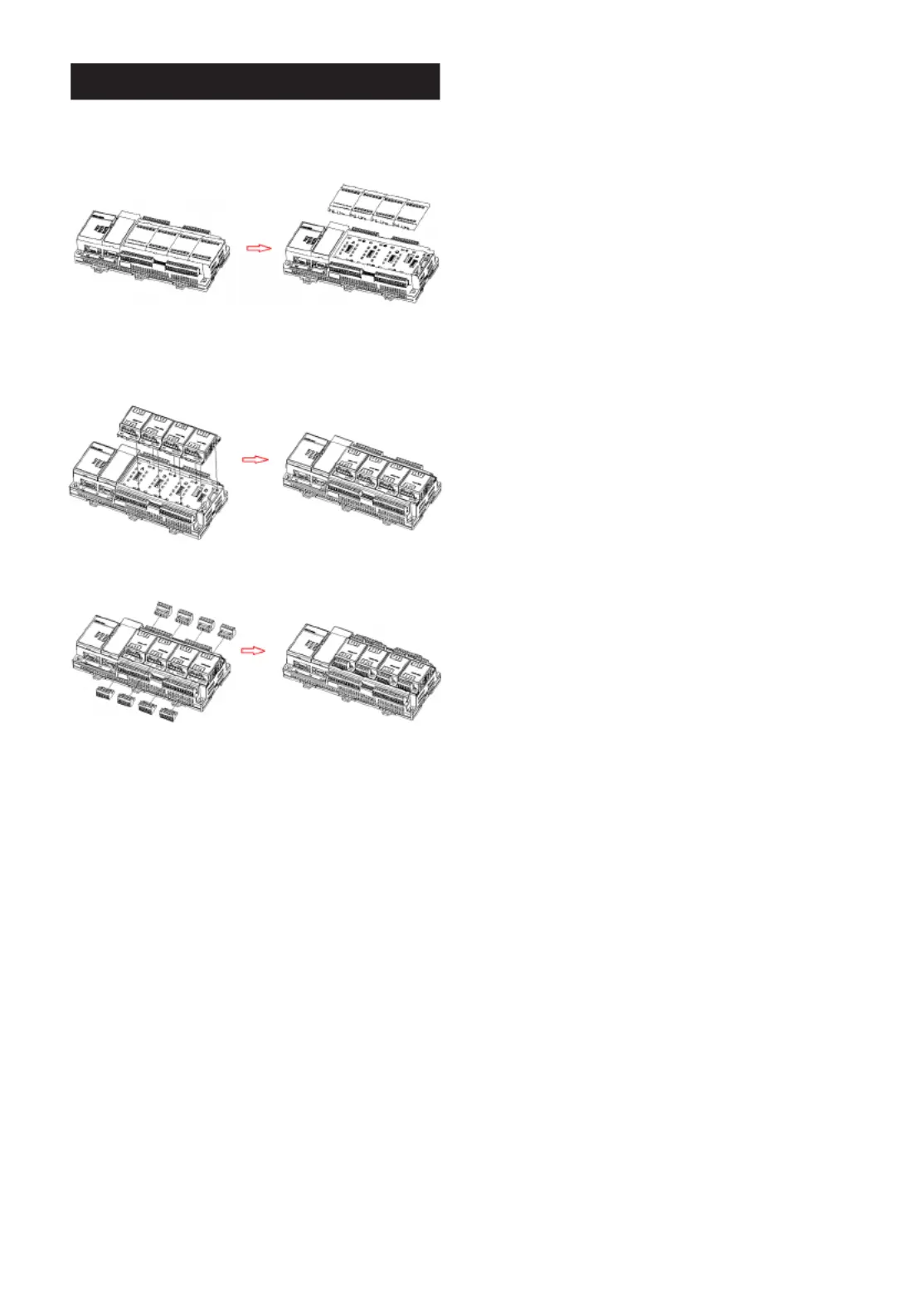

Caution:
When connecting jumpers or installing the card, you should disconnect the power to prevent surges
damaging sensitive electronic components.
