Pagina 1/30
Rev. 10/14
User Instructions

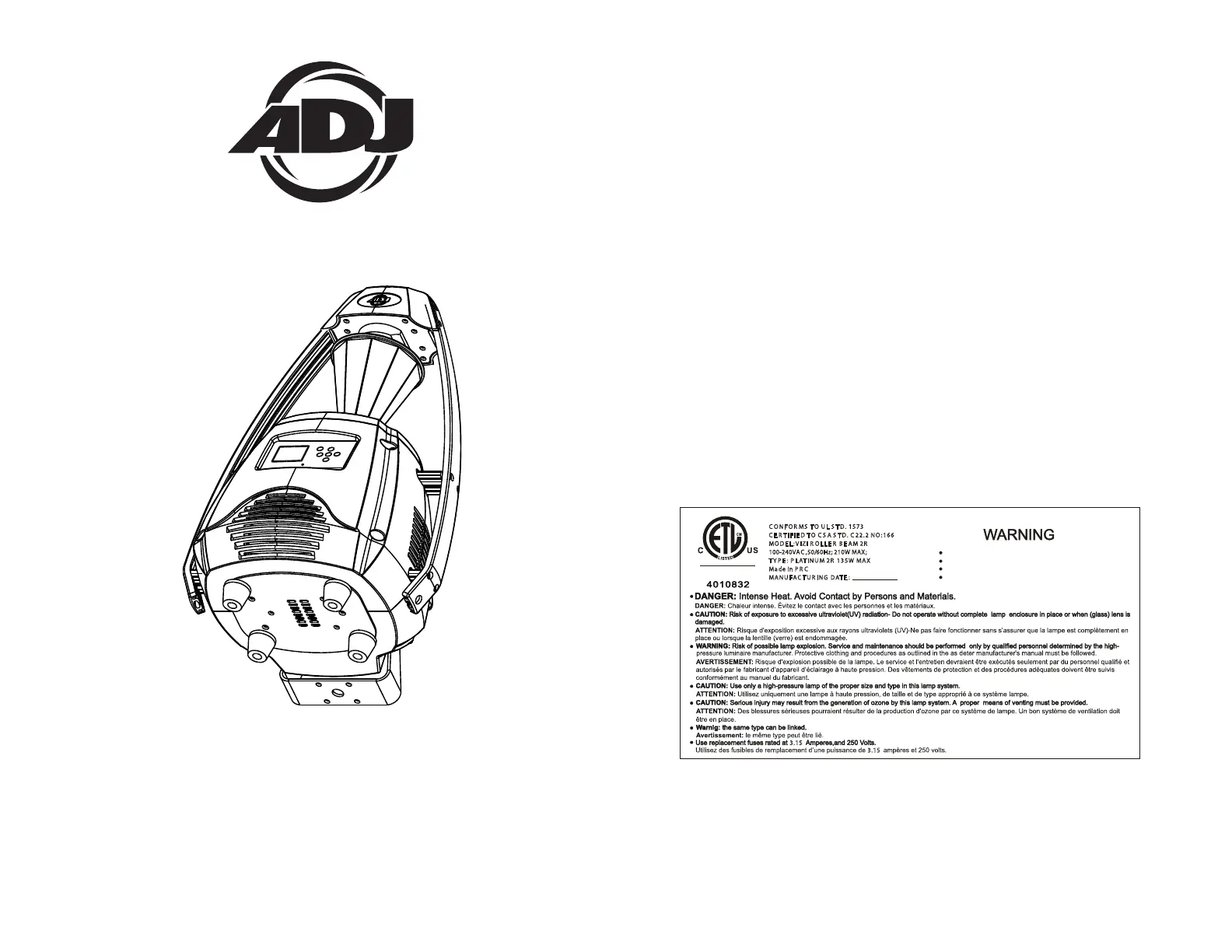

VIZI ROLLER BEAM 2R
©2014 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
N o t for R e s ide ntia l U s e.
N O T F O R H OU S E H O L D U S E
IM P R O P R E A L 'U S A G E D O ME S T IQ UE
D R Y L OC A T I O NS E MP L A C E ME N T S S E C S
3.15
3.15
C O N F O R MS T O U L S T D. 1 57 3
C E R T IF IE D T O C S A S T D . C 2 2. 2 N O : 1 6 6
MO DE L :
100-240VA C ,50/60H z; 210W MAX ;
T Y P E : P L AT IN U M 2 R 1 35 W M A X
Ma de in P R C
MA N U FA C T UR I N G D AT E :
V IZ I R O LL E R B E A M 2 R
Inte rte k
Unpacking: Thank you for purchasing the Vizi Roller Beam 2R by
ADJ Products, LLC. Every Vizi Roller Beam 2R has been thoroughly
tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your
xture for any damage and be sure all equipment necessary to oper-
ate the unit has arrived intact. In the event damage has been found
or parts are missing, please contact our toll free customer support
number for further instructions. Please do not return this unit to your
dealer without contacting customer support rst.
Introduction: The Vizi Roller Beam 2R is a DMX intelligent, unique
cone barrel scanner. The Vizi Roller Beam 2R can be a 11 channel,
13 channel, or 18 Channel DMX unit. The fixture can has three differ-
ent operating modes; show mode, sound-active, or DMX control. The
Vizi Roller Beam 2R can be used as a stand alone unit or in a master/
slave configuration. For best results use fog or special effects smoke to
enhance the beams projections.
During the initial start-up or use of this product a light smoke or
smell may arise from the unit. This is a normal process and is
cause by the heat associated with the lamp.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Vizi Roller Beam 2R General Information
ADJ Products, LLC - www.adj.com - Vizi Roller Beam 2R Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Vizi Roller Beam 2R Instruction Manual Page 2
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Features.........................................................................5
Handling Precautions..................................................................6
Registration......................................................................6
Important Discharge Lamp Warnings.........................................7
Mounting.........................................................................8
Controls and Functions.............................................................10
DMX Set-Up..............................................................................13
System Menu............................................................................16
Error Codes...............................................................................37
Operation...............................................................................39
DMX Traits.................................................................................41
Lamp Replacement...................................................................53
Fuse Replacement....................................................................53
Photometric Chart.....................................................................54
Cleaning..................................................................55
Trouble Shooting.......................................................................55
Warranty.........................................................................56
Specifications....................................................................58
Please see page 7 for important lamp instructions!
