Pagina 1/12
User Instructions
Rev. 2/15
©2013 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indi-
rect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsucient and negligent assembly,
installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
ADJ Products, LLC - www.adj.com - FREQ Matrix Instruction Manual Page 3
• Built in Microphone
• 4 DMX Channel Modes: 1 Channel Mode, 2 Channel Mode, 16
Channel Mode, & 18 Channel Mode
• 12 Show Modes
• 4 Operating Modes - Sound Active, Show Mode, Manual Mode,
and DMX Control
• Sound Sensitivity Adjustable
• UC3 Remote Control Compatiable (Not Included)
• Power Cord Daisy Chaining. See page 18.
FREQ Matrix Warranty Registration
FREQ Matrix Features
To optimize the performance of this product, please read these operat-
ing instructions carefully to familiarize yourself with the basic operations
of this unit. These instructions contain important safety information
regarding the use and maintenance of this unit. Please keep this manual
with the unit, for future reference.
FREQ Matrix General Instructions
The FREQ Matrix 2 year (730 days) limited warranty. Please carries a
fill out the enclosed warranty card to validate your purchase and war-
ranty. You may also register your product online at www.adj.com. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) umber. If the n
unit is under warranty you must provide a copy of your proof of pur-
chase invoice. Please contact ADJ Products, LLC customer support
for a R.A. number.
FREQ Matrix Installation
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
FREQ Matrix Introduction
ADJ Products, LLC - www.adj.com - FREQ Matrix Instruction Manual Page 2
Unpacking: Thank you for purchasing the FREQ Matrix by ADJ Prod-
ucts, LLC. Every FREQ Matrix has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without rst contact-
ing customer support.
Introduction: The FREQ Matrix is part of ADJ’s continuing pursuit for
creating high quality affordable intelligent fixtures. The FREQ Matrix is
a revolutionary 16-zone LED strobe. The unit has 4 operating modes;
Sound Active (with adjustable sound sensitivity), Show Mode, Manual
Mode, or DMX Control. This unit can be used as a stand alone xture,
or in a Master/Slave conguration. This fixture is suitable for theaters,
studios, retail stores, and other similar locations.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide set up help and to answer any question
should you encounter problems during your set up or initial operation.
You may also visit us on the web at www.adj.com for any comments
or suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - FREQ Matrix Instruction Manual Page 5
FREQ Matrix Safety Precautions
ADJ Products, LLC - www.adj.com - FREQ Matrix Instruction Manual Page 4
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 18 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Power Supply: The ADJ FREQ Matrix contains a automatic voltage
switch, which will auto sense the voltage when it is plugged into the
power source. With this switch there is no need to worry about the cor-
rect power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.

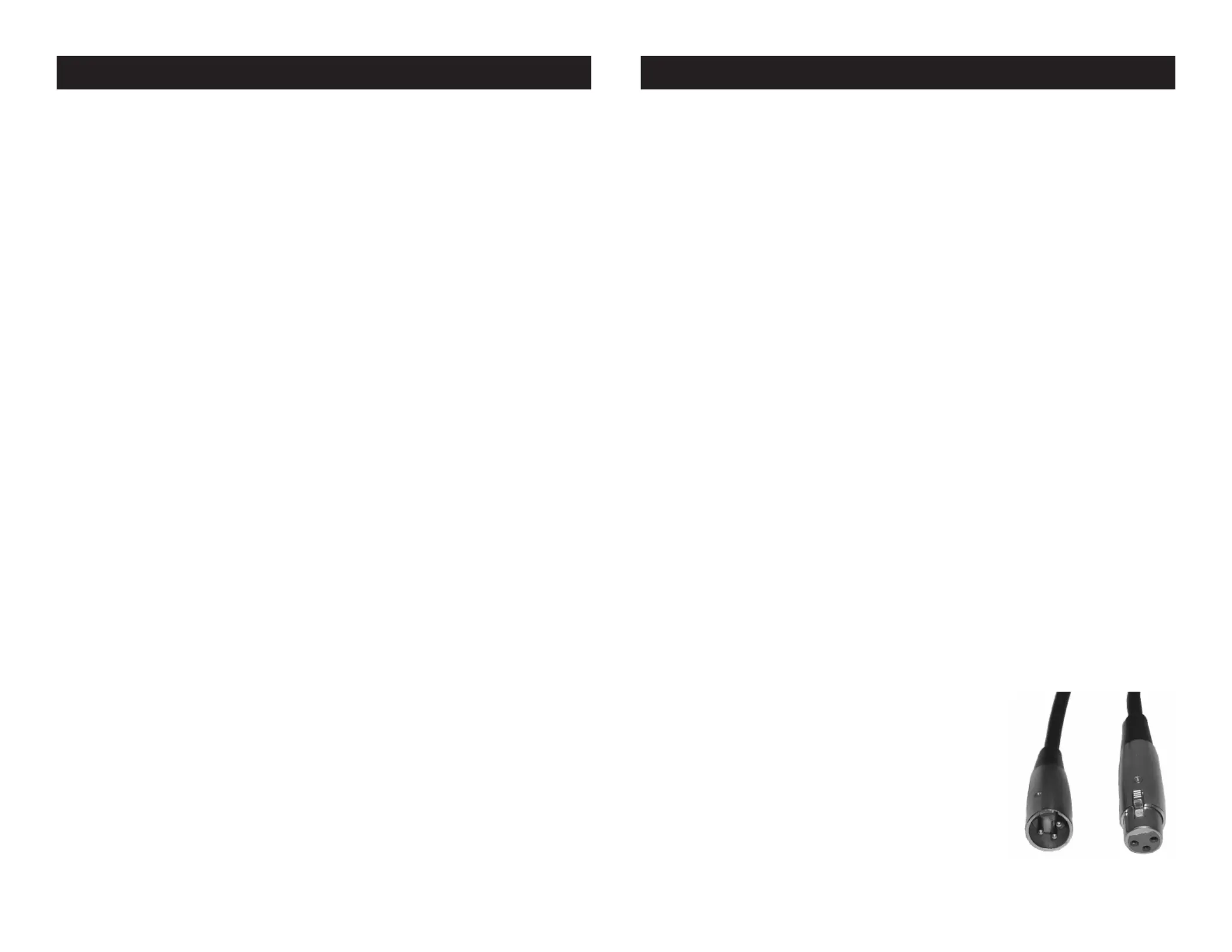

Data Cable (DMX Cable) Requirements (For DMX Operation):
The FREQ Matrix has 4 DMX Channel modes. The DMX address is set
on the rear panel of the FREQ Matrix. Your unit and your DMX control-
ler require a approved DMX-512 110 Ohm Data cable for data input
and data output. We recommend Accu-Cable DMX cables. If you are
making your own cables, be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost
all professional sound and lighting stores). Your
cables should be made with a male and female
XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained
and cannot be split.
FREQ Matrix Set Up
Figure 1
