REMOTE
ADDER
®
PWR
TO LO C A L 1
TO LO C A L 2

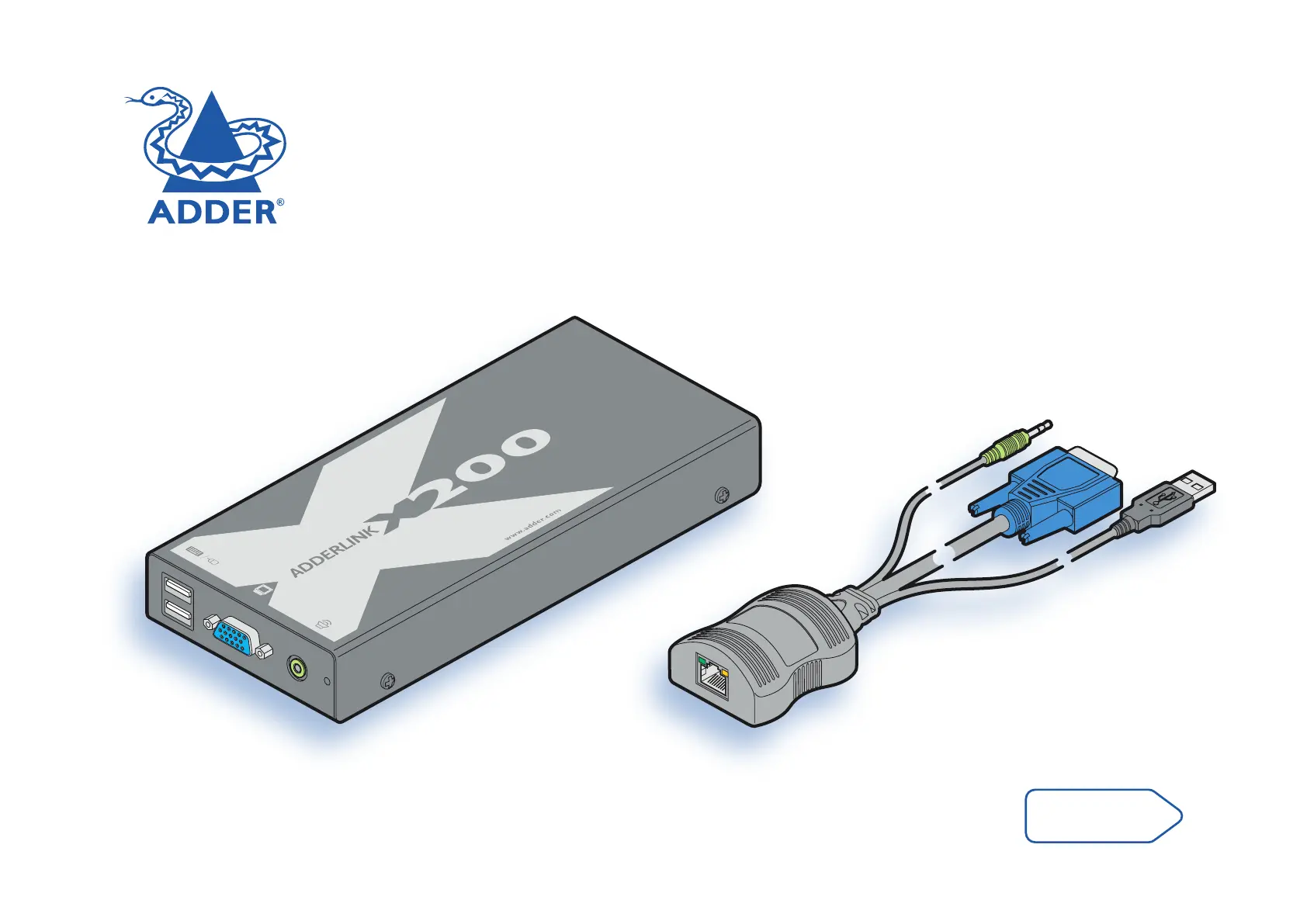

Adder X200 Extender
User Guide
welcome contents
installation
& operation
special
configuration
1
Contents
Welcome
Introduction 2 .................................................................................
Supplied items 3 .............................................................................
What you may additionally need 3 ...............................................
Installation & Operation
Connections 4 .................................................................................
Cable length advice 4 ................................................................
Connections at each CAM (local) unit 5 ...................................
Connections at the X200 (remote) module 6 ...........................
Operation 8 .....................................................................................
General use 8 .............................................................................
Selecting and using computers 8 ..............................................
Locking and unlocking the system 8 ........................................
Special configuration
Configuration 9 ..............................................................................
What are hotkeys? 9 .............................................................
Entering, using and exiting configuration mode 9 .............
Password setting 10 ...................................................................
Mouse switching control 10 ......................................................
Hot plugging PS/2-style connections
and mouse restoration 11 .........................................................
Which restore setting do I use? 11 .......................................
Microsoft and Logitech -specific mouse settings 11 ................
Video compensation (sharpness and brightness)................12
Video skew adjustment (X200AS models only) 13 ...................
Miscellaneous settings 14 ..........................................................
Performing flash upgrades 15 .......................................................
Further information
Getting assistance 17 ......................................................................
welcome contents
installation
& operation
special
configuration
2
Welcome
Introduction
Thank you for choosing the Adder X200 extender
set. These compact modules allow you to remotely
control up to two computer systems from a
common keyboard, video monitor, mouse and
speaker set. The controlling peripherals can be
situated up to 200 metres* from each computer
system (* X200AS skew compensation model).
Peripheral connections to each computer system are
handled by Computer Access Modules (or CAMs).
The long distance link between the CAMs and the
common X200 module is made via Category 5, 5e
or 6 twisted pair cabling.
Special circuitry within the remote module allows
you to make adjustments to the sharpness and
brightness settings to suit your own preferences.
PSU
X200
CAM
CAM
PC1
PC2
AUDIO
AUDIO
KEYB/MOUSE
KEYB/MOUSE
VIDEO
VIDEO
{
X200 model range
Extender pair packages (X200 + CAM)
X200-USB/P 100m extender pair, USB CAM, no audio, no de-skew
X200A-USB/P 100m extender pair, USB CAM, audio, no de-skew
X200AS-USB/P 200m extender pair, USB CAM, audio and de-skew
X200 receivers only (for use with CATx switches etc.)
X200 /R 100m receiver, no audio, no de-skew
X200A /R 100m receiver, audio, no de-skew
X200AS /R 200m receiver, audio and de-skew
X200 modules can be used to connect to
individual computer systems via CAMs or to
many computers via AdderView CATx switches
Product specificaties
| Merk: | Adder |
| Categorie: | Schakelaar |
| Model: | Link X200 |
| Kleur van het product: | Zwart |
| VGA (D-Sub)poort(en): | 2 |
| Maximaal bereik: | 300 m |
