Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice

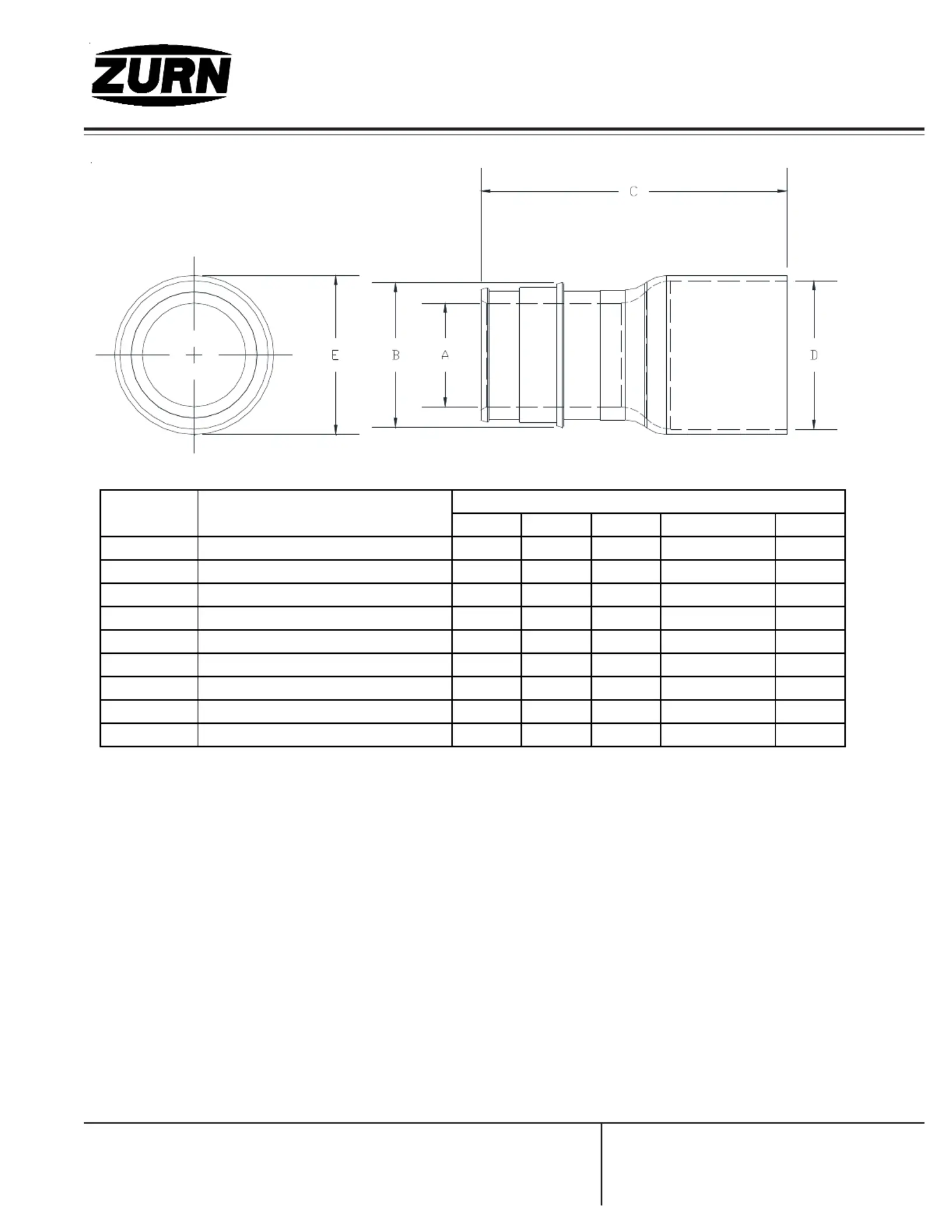

SPECIFICATION SHEET

TAG_______

Zurn Industries, LLC|Zurn PEX, Inc.

116 Maple Street, Commerce, TX U.S.A. 75429 · Ph. 800-872-7277, Fax 800-209-2148

Zurn Industries, LLC

|Specification Drainage Operation

1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929

www.zurn.com

®

Rev.-

Date:08/07/17

C.N. No.136941

Prod. | Dwg. No.QE_GX-FSWT

QE_GX

XL BRASS F1960 EXPANSION PEX x FEMALE SWEAT

ADAPTER

Engineering Specification:Zurn PEX

®

XL-Low Lead Brass F1960 Expansion PEX x Female Sweat Adapter

The QE__GXis used with Zurn Non-Barrier Pex tubing in potable water applications. Not for use in reverse

osmosis systems or in areas with known localized aggressive water chemistries. Manufactured from

EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube and Zurn PEX reinforcing rings are

pressure rated at 160 PSI at 73°F, 100 PSI at 180°F, and 80 PSI at 200°F. These fittings are 3

rd

Party certified

as complying with the following standards: NSF/ANSI Standard 61, NSF/ANSI Standard 372 (Low Lead),

ASTM F1960, CSA B137.5

Accessories

___QER3X1/2" PEX Expansion Reinforcing Ring w/Stop

___QER4X3/4" PEX Expansion Reinforcing Ring w/Stop

___QER5X1" PEX Expansion Reinforcing Ring w/Stop

___QER6X1-1/4" PEX Expansion Reinforcing Ring w/Stop

___QER7X1-1/2" PEX Expansion Reinforcing Ring w/Stop

___QER8X2" PEX Expansion Reinforcing Ring w/Stop

___QEMT345F1960 Manual Expansion Tool Kit - 1/2" to 1"

ABCD*E

QE750GX

1/2" EX PEX x 1/2" Female Sweat0.38 [10]0.61 [16]1.24 [32]1/2" CU FSWT0.71 [18]

QE755GX

1/2" EX PEX x 3/4" Female Sweat0.38 [10]0.61 [16]1.50 [38]3/4" CU FSWT0.96 [24]

QE770GX

3/4" EX PEX x 1/2" Female Sweat0.60 [15]0.87 [22]1.50 [38]1/2" CU FSWT0.95 [24]

QE775GX

3/4" EX PEX x 3/4" Female Sweat0.60 [15]0.87 [22]1.73 [44]3/4" CU FSWT0.96 [24]

QE778GX

3/4" EX PEX x 1" Female Sweat0.60 [15]0.87 [22]1.91 [49]1" CU FSWT1.22 [31]

QE800GX

1" EX PEX x 1" Female Sweat0.80 [20]1.11 [28]2.14 [54]1" CU FSWT1.22 [31]

QE812GX

1-1/4" EX PEX x 1-1/4" Female Sweat0.96 [24]1.36 [34]2.50 [64]1-1/4" CU FSWT1.51 [38]

QE950GX

1-1/2" EX PEX x 1-1/2" Female Sweat1.08 [28]1.49 [38]2.90 [74]1-1/2" CU FSWT1.78 [45]

QE1050GX

2" EX PEX x 2" Female Sweat1.55 [39]2.08 [53]3.59 [91]2" CU FSWT2.31 [59]

Part Number

XL Brass F1960 Expansion PEX x

Female Sweat Adapter Size

Dimensions in In [mm]

*Fittings are designed to accept Nominal copper tubing size
