User's Manual

www.ZALMAN.com

※ To ensure safe and easy installation, Please read the following precautions.

Ver.180112

EBT Series

High Efciency Switching

Power Supply

AC Power Cord

Four Screws

Five Cable Ties

User's Manual

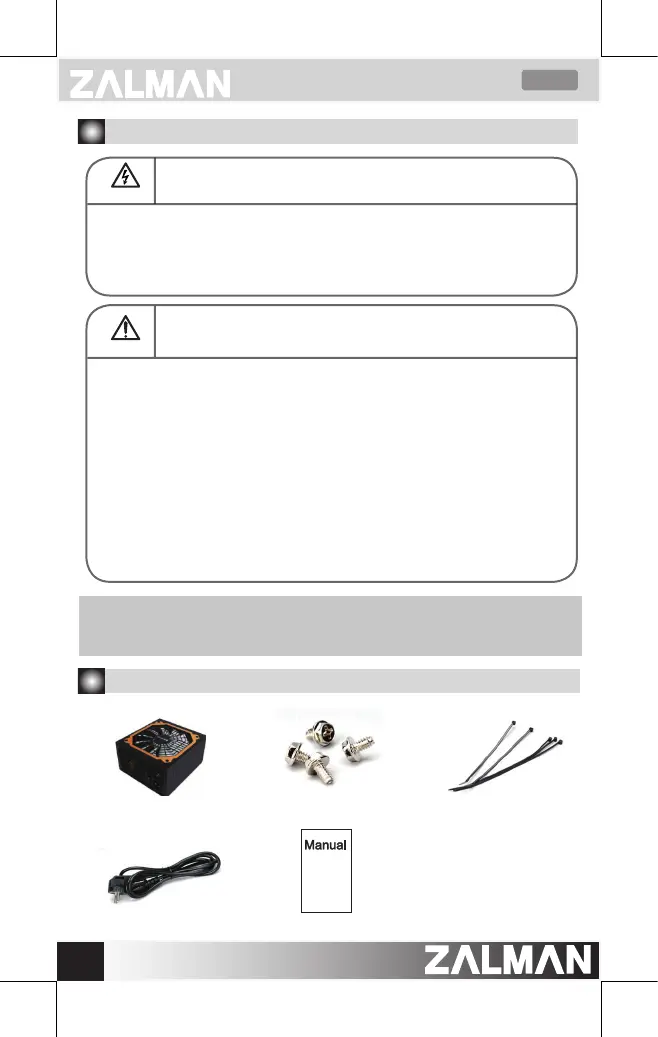

1. Warnings and Safety Precautions

2. Components

▶ Opening the cover of the product while the power cord is plugged into an outlet

may cause electrocution or critical damage to the product.

▶ Handling the power cord with wet hands may cause electrocution.

▶ Inserting 󰘰ngers or metallic objects into the cooling fan may cause injury or

electrocution.

▶ Operating the product in an extremely cold or hot environment can degrade

product performance and lifespan.

▶ Exposure to liquids may cause malfunction.

▶ Operation in a humid or non-ventilated environment may reduce product lifespan.

▶ Plugging the main power connector P1 into the motherboard while the product is

connected to the AC power source may cause damage to the motherboard.

▶ Make sure that the connectors are connected to their designated locations, and

that the connectors are not oriented in the wrong direction when connecting the

DC output connectors.

▶ Please use gloves to prevent injuries during installation.

▶ Product designs and speci󰘰cations may be revised without prior noti󰘰cation to

improve quality and performance.

Neglecting the following may cause serious injury or death.

Neglecting the following may cause minor injuries, degrade product

conditions or cause malfunction.

Caution

Warning

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external

causes, including but not limited to, improper use, problems with electrical

power, accident, neglect, alteration, repair, improper installation, or

improper testing.

English

Product specificaties

Merk:	Zalman
Categorie:	Computervoeding
Model:	Watttera ZM1200-EBT
Kleur van het product:	Zwart
Gewicht:	3700 g
Breedte:	150 mm
Diepte:	180 mm
Hoogte:	86 mm
Geluidsniveau:	- dB
Type verpakking:	Doos
Stroom:	15 A
Meegeleverde kabels:	AC, CPU, PCIe, SATA
Certificering:	NRTL, FCC, CB, CE, TUV, KC, EAC
Bedoeld voor:	PC
Duurzaamheidscertificaten:	RoHS
Temperatuur bij opslag:	-20 - 70 °C
Aantal ventilatoren:	1 ventilator(en)
Stroomspanning bescherming:	Over current, Over power, Over voltage, Short circuit, Under voltage
Luchtvochtigheid bij opslag:	5 - 95 procent
80 PLUS certificatie:	80 PLUS Gold
Totaal vermogen:	1200 W
Power factor:	99
Type koeling:	Actief
Efficientie:	92 procent
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 95 procent
Ventilator diameter:	135 mm
Motherboard power connector:	20+4 pin ATX
Vormfactor van de voeding (PSU):	ATX
Power Factor Correctie (PFC) type:	Actief
Maximale ingangsstroom (@110V):	15 A
Gecombineerd vermogen (+3.3V):	130 W
Gecombineerd vermogen (+12V):	1200 W
Gecombineerd vermogen (+5V):	130 W
Max huidige output (+3.3V):	25 A
Max huidige output(+12V):	100 A
Max huidige output (+5V):	25 A
Max huidige output (-12V):	0.3 A
Max huidige output (+5Vsb):	4 A
Gecombineerd vermogen (-12V):	3.6 W
Gecombineerd vermogen(+5Vsb):	20 W
Aantal SATA power connectors:	3
CPU P4 connector (4-pin):	1
Bekabelingstype:	Volledig modulair
ATX version:	2.3
PCI Express power connectors (6+2 pin):	6
CPU power connector (4+4 pin):	Ja
EPS version:	2.92
Lengte SATA-stroomkabel:	450 mm
Lengte stroomkabel moederbord:	550 mm
Lengte PCI Express-stroomkabel:	550 mm
Lengte CPU-stroomkabel:	650 mm
Ventilator locatie:	Boven
PCI Express connector:	Ja
