*The above information appears on the label affixed to the bottom of the disposer.
For your convinience, write down the model number and serial number prior to installation.
WARNING: When using electrical appliances, basic safety precautions must always be followed,
including:
Read all instructions prior to use.
To reduce the risk of injury, closely supervise children when the appliance is in use.
NEVER put hands or fingers into a waste disposer.
Turn off power switch AND unplug power cord before attempting to clear a jam or remove an
object from the disposer.
When attempting to loosen a jam in a waste disposer, use a long wooden object such as the
handle of a wooden spoon.
When attempting to remove objects from a waste disposer use only long handled tongs or pliers
to avoid reaching in.
To reduce risk of injury by materials that may be expelled by a waste disposer, NEVER put:
Drain Cleaners, China, Glass, Plastic, Metal, Large Bones, Hot Grease, Hot Liquids or other
hazardous materials into the disposer.
When not operating the disposer - leave the stopper in place to reduce the risk of objects falling
into the disposer.
NEVER operate the disposer without the splash guard in place.
The disposer this MUST properly grounded - see the ELECTRICAL CONNECTION section of be
manual.
If the supply cord is damaged, it MUST be replaced by the manufacturer, its service agent, or an
authorized person in order to avoid hazard.
SINK PRO
NANOGRIND
INSTRUCTION MANUAL
BEFORE YOU BEGIN:
Your XO Food Waste Disposer has been designed exclusively for residential use,
for operation on 120V 60 Hz US household current only
Any other use will void warranty and may constitute a hazard.
Read All Instructions Thoroughly Before Installing or Using the Disposer.
Make Certain to Review Instructions Pertaining to RISK, FIRE, ELECTRIC SHOCK
or PERSONAL INJURY Prior to Use.
NOTE:
IMPORTANT:
CAUTION:
RECORD YOUR MODEL # & SERIAL NUMBER HERE:
*MODEL # *SERIAL #
IMPORTANT SAFETY INSTRUCTIONS
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
www.xoappliance.com
Use this appliance for its intended purpose only as described here in the manual.
1.
3 BOLT PRO MOUNT
OPERATING & INSTALLATION
BEFORE YOU BEGIN
ELECTRICAL CONNECTIONS:
If you are not familiar with electrical power and procedures, c
All electrical connections must comply with the National Electrical Code, Section 422 and/or local codes and
ordinances.
DANGER Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
her the appliance is properly grounded.
1.
Read all these instructions completely and carefully.
2.
Save these instructions for the local inspector’s use.
3.
Observe all governing codes and ordinances.
4.
Note To Installer: Leave these instructions with the consumer.
5.
Note to Consumer: Retain these instructions for future reference.
6. Installation of this appliance requires basic mechanical skills.
7. Completion time is approximately 1 hour.
8. Proper installation is the responsibility of the installer - product failure due to improper installation is not
covered under warranty.
YOU WILL NEED:
Philips & Flat Blade Screwdrivers
Channel Lock / Slip Joint Pliers
Hammer
Plumber’s Putty
YOU MAY ALSO NEED: FOR INSTALLATION WITH DISHWASHER:
Petrolum jelly or liquid soap
Adjustable Pipe Wrench
Flexible Drain Pipe
Plumber’s Snake
BEFORE BEGINNING ANY WORK - TURN OFF ELECTRICAL POWER AT THE CIRCUIT BREAKER OR
FUSE BOX AND UNPLUG THE OLD DISPOSER.
1. Disconnect the drain line at the trap. (Water will be present in the trap)
2. Disconnect the old disposer & sink flange. (Support the disposer while removing so it does not fall)
3. Remove the sink flange and all old sealing materials from sink opening, top & bottom.
(Sealing surfaces must be completely clean to avoid leaks)
4. Inspect drain line - use a Plumber’s Snake to clear any hardened grease or accumulation of debris.
www.xoappliance.com
Punch or wooden dowel
Hose clamps
Dishwasher Drain Connector
Stepped Rubber Drain Adapter
1. REMOVAL OF THE OLD UNIT

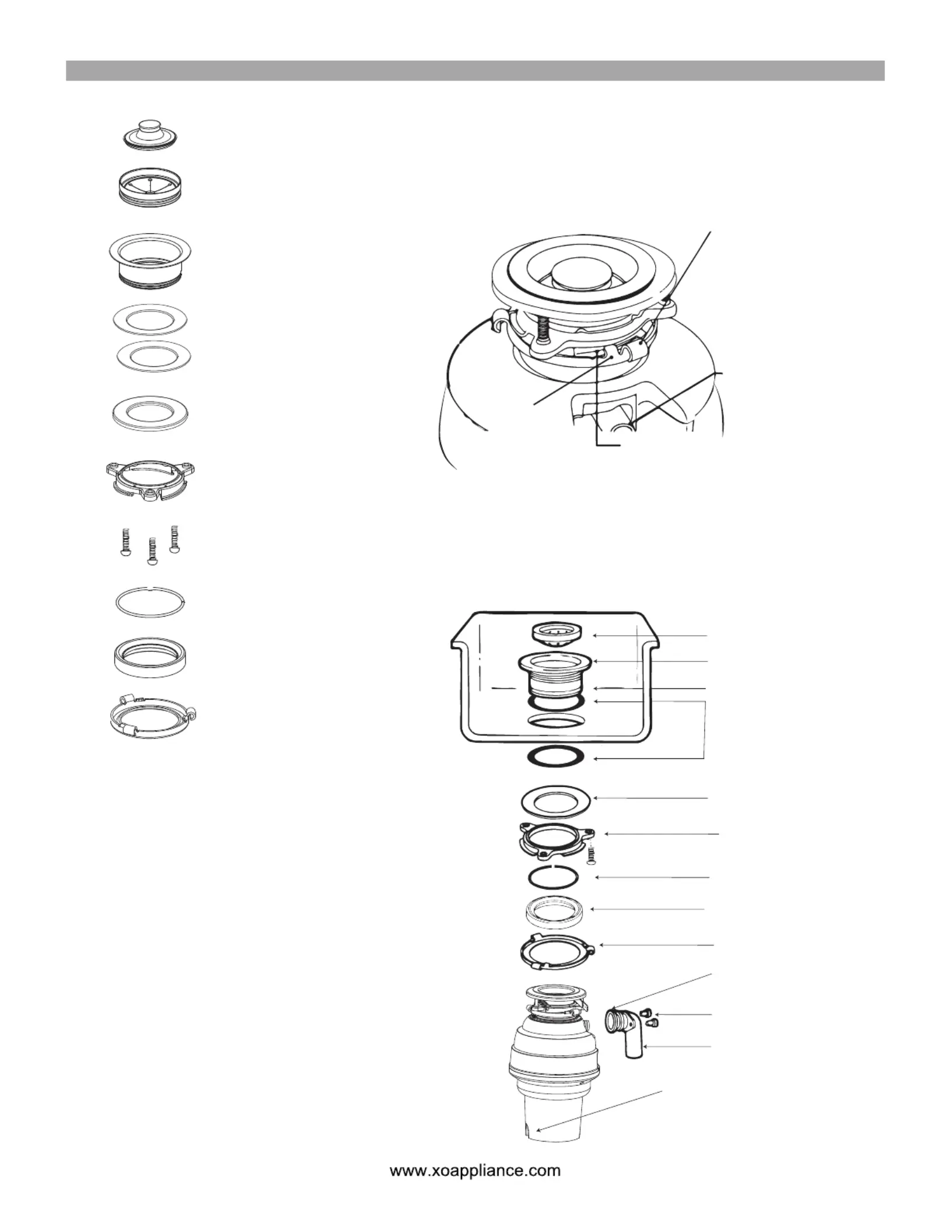

FAMILIARIZE YOURSELF WITH HOW THE DISPOSER ASSEMBLES
NOTE: Cushion Ring included between the Upper
Mount Ring and Lower Mounting Ring.
READ CAREFULLY AND COMPLETELY BEFORE STARTING
NOTE: As the mounting assembly is
properly assembled at the factory,
please pay close attention to the
order of the mounting system parts.
A
B
C
D
E
F
G
H
I
J
STOPPER
REMOVABLE SPLASH GUARD
SINK FLANGE
SUPPORT FLANGE
UPPER MOUNT RING
MOUNT SCREWS
RETAINER RING
CUSHION RING*
LOWER MOUNT RING*
RUBBER GASKET (2)
* Part not disengaged during disposer installation.
Sink Removable Splash Guard
Sink Flange
Upper Mount Ring
Retainer Ring
Cushion Ring
Lower Mount Ring
Rubber Gasket
Reset Button
Rubber Gaskets
Plumber’s Putty may be substituted
between the flange and sink - the
2nd gasket is always used between
the support flange and sink
Support Flange
Elbow Flange & Screw Set
Elbow
Groove
LOWER MOUNT RING
DISPOSER
DISHWASHER INLET
CUSHION RING
MOUNT TAB
