2x 1/4-20 low prole screw
2x 3/8-16 low prole screw

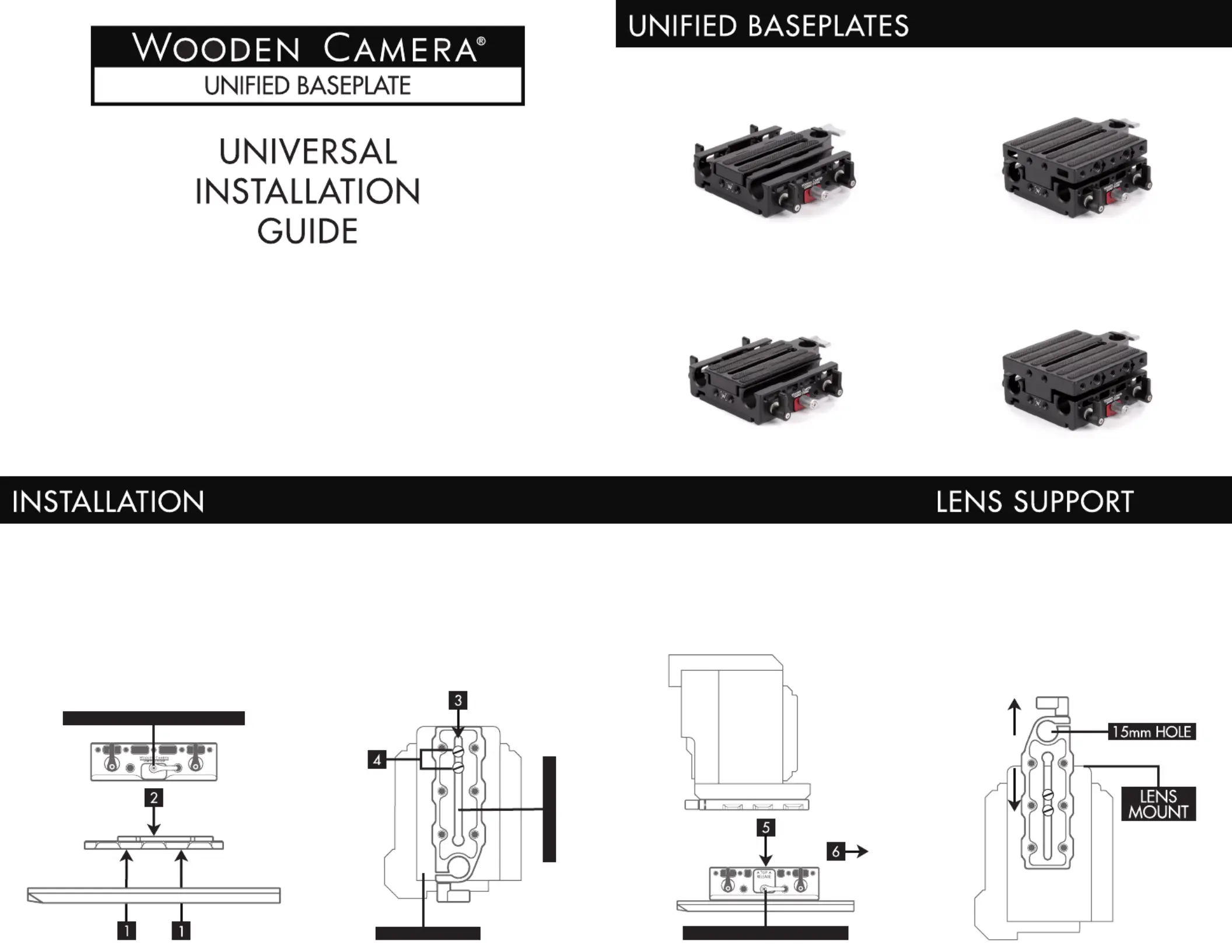

1. Attach Lower Dovetail to Bridgeplate or
Tripod Plate using appropriate screws
with Lens Arrows facing forward.
2. Select Baseplate Core, drop onto
Dovetail, slide forward and tighten
Thumbscrew.
3. Select Top Dovetail, locate Screw
Channel, and insert 3/8-16 or 1/4-20
Screws as needed.
4. Locate 1/4-20 or 3/8-16 Holes on
Camera Bottom, align, and tighten top
Dovetail to Camera.
5. With Camera Lens facing forward, lower
Camera and Top Dovetail into Core.
6. Slide Camera forward and tighten
Top Dovetail Thumbscrew.
To use Vertical 15m Rod Clamp as Lens
Support, insert 1/4-20 or 3/8-16 Screw
into Screw Channel, with Rod Clamp under
Lens Mount, align 15mm Hole to desired
position and install Unified Lens Adapter
Support Kit (SKU 227900 sold separately).
Tighten screws to camera and Thumbscrew
to 15mm support.
CAMERA BOTTOM
SCREW CHANNEL
TOP DOVETAIL THUMBSCREW
ADJUST
POSITION
LOWER DOVETAIL THUMBSCREW
(FS7, CANON C-SERIES)
SKU:222100
(VENICE, URSA MINI, F55/F5)
SKU:222200
(FS5, EVA1, VARICAM LT/35)
SKU:222400
(CANON C200, C200B, C700)
SKU:242800
© Wooden Camera, Inc. 2011–2019
