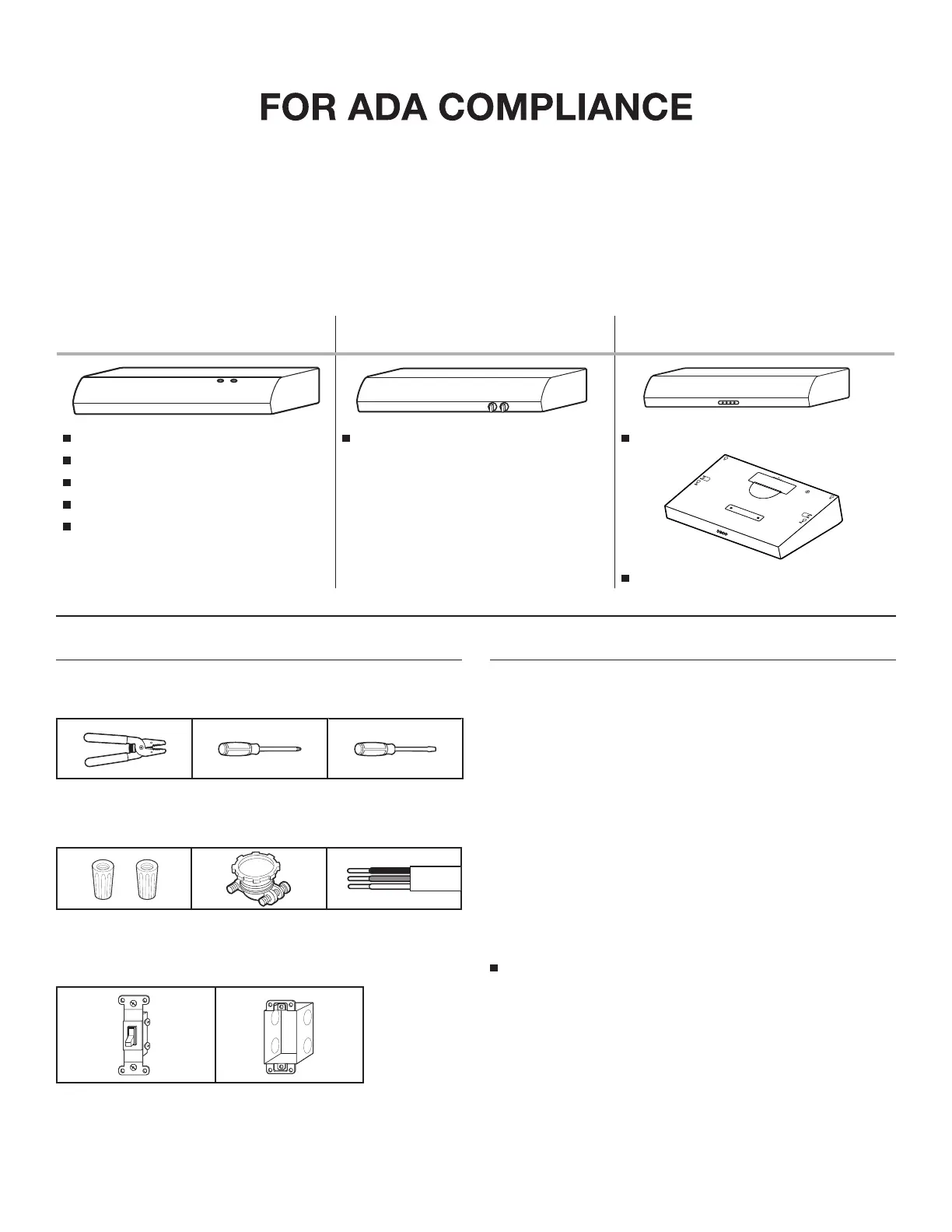

RANGE HOOD INSTALLATIONINSTRUCTIONS

For questions about features, operation/performance, parts, accessories, or service, call: 1-800-253-1301.

In Canada, for assistance, installation, and service, call: 1-800-607-6777.

Residential range hoods can be installed to comply with Sections 308 and 309 of ADA Guidelines when used with appropriately

mounted controls installed at 15" (38.1 cm) to 40" (101.6 cm) above the floor, and control access should not require reaching over

a cooking appliance.

The following range hoods can work in an ADA-compliant situation when the range hood is wired to operate from a dedicated

standard electrical wall switch. To facilitate this application, share the information on the following pages with your electrician

when preparing for the installation.

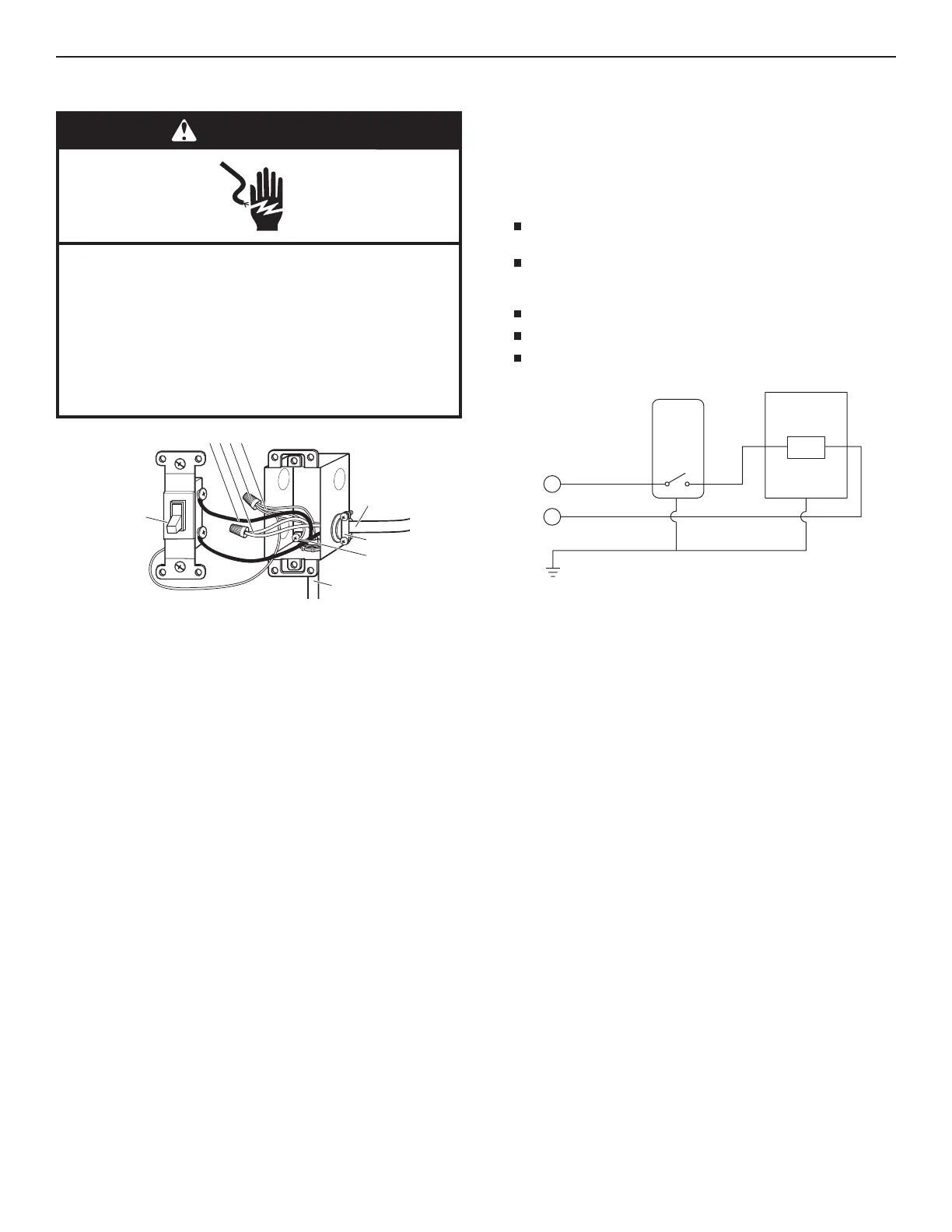

NOTE: All the models can be controlled only by one remote switch. The switch activates or deactivates the motor and the light

ofthehood.

INSTALLATION REQUIREMENTS

Toolsand Parts

Tools Needed

Wire stripper#2 Phillips

screwdriver

Flat-blade

screwdriver

Parts Needed

UL Listed/CSA

Approved wire

connectors

UL Listed/CSA

Approved

1/2" (13 mm)

strain relief

UL Listed #14

(minimum)

3 wire cable

UL Listed single pole

toggle light switch

UL Listed deep

single-gang

switch box

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70

(latest edition), or CSA Standards C22.1-94, Canadian Electrical

Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local

codes and ordinances.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A 120-volt, 60 Hz., AC-only, 15-amp fused electrical circuit

is required.

Two-Speed Range Hoods

(withrockerswitch)

Intermediate Range Hoods

(withrotaryswitch)

Three-Speed Range Hoods

(withpushbuttons)

UXT20

UXT30

UXT40

UXT41

WVU17U

UXT42UXT52

WVU37U

W11108368C
