InstructionManual
HandWinch Lift (
A
djustableStraddle
)
PartNumber:
273512, 273513 & 273514
Note: Operator MUST read and understand these operating instructions before using this Lift.
Table of Contents
1 General Information ......................................................................................................... 1
1.1 Description...................................... ................................................... ..................... 1
1.2 Specifications.......................................................................................................... 2
2 Pre-Operation.................................................................................................................... 2
2.1 Inspection................................................................................................................. 2
3 Assembly.......................................................................................................................... 3
4 Function Tests....................................... ............................................................ ................ 6
3.1 Test Brake Operation............................................................................................... 4
3.2 Test Winch Operation.............................................................................................. 4
3.3 Braking..................................................................................................................... 4
3.4 Parking..................................................................................................................... 4
5 Operation........................................................................................................................... 6
5.1 Raising and Lowering Load-Manual Winch............................................................. 6
5.2 Moving Machine with a Load................................................................................... 7
5.3 Transporting Unit..................................................................................................... 7
5.4 Loading Unit............................................................................................................. 7
5.5 Positioning Load...................................................................................................... 7
5.6 Extended Storage.............................. ....................................................... ............... 7
6 Part Information................................................................................................................. 8
6.1 Part Diagram............................................................................................................ 8
Hand Winch Lifter (Adjustable Straddle)
(Part # 273512, 273513 & 273514)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HAND WINCH
LIFTER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Page 2of9
©Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
6.2 Part List.................................................................................................................... 9
Hand Winch Lifter (Adjustable Straddle)
(Part # 273512, 273513 & 273514)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HAND WINCH
LIFTER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
NOTE: All of the information reported herein is based on data available at the moment of printing. We reserve the
right to modify our own products at any moment without notice and liability in any sanctions. So, it is suggested to
always verify possible updates and changes.
1.1 DESCRIPTION
Thank you for purchasing a Wesco Manual Winch Lift. This unit is designed to lift material to and
from shelves, move office equipment and install ceiling and wall appliances on level surfaces, including
workshops, warehouses, stockrooms, receiving departments. It is perfect for when aisles and congested
areas prevent the use of larger equipment. It is constructed of durable steel with a lightweight aluminum
frame. The forks can be inverted to provide two different lift heights. It is operated by a hand-crank winch.
1.2 SPECIFICATIONS
Part
Number
Model #
Load
Cap.
(lbs)
Lifting Height (in.) Overall Dimensions (in.)
Load
Center
(in)
Forks Up
Forks
Down
L W H
273510 HWLFX-4 400 120.5 99 34-1/2 24 67 10
273511 HWLFX-5 500 71 48.5 34-1/2 24 67 10
273512 HWLSD-3.5 350 142 120 43 29 79-3/4 10
273513 HWLSD-4 400 120.5 99 43 29 67 10
273514 HWLSD-5 500 71 48.5 43 29 67 10
273515 HWLCB-3.5 350 140 118.5 46 29 79-3/4 10
273516 HWLCB-4 400 120.5 99 46 29 67 10
273517 HWLCB-5 500 71 48.5 46 29 67 10
Materials and specifications are subject to change without notice.
2. PRE-OPERATION
2.1 Inspection
A visual inspection should be performed by the operator prior to each work shift. This inspection is designed
to discover if anything is apparently wrong with a machine before the operator test it.
Inspect the machine for modifications, damage or loose or missing parts. A damaged or modified machine
must never be used. If damage or any variation from factory delivered condition is discovered, the machine
must be tagged and removed from service. Repairs to the machine may only be made by a qualified service
technician, according to the manufacturer’s specifications. After repairs are completed, the operator must
perform a per-operation inspection again before testing the machine functions.
Check the following components or areas for damage, modifications and improperly installed or missing parts:
- Winch and related components
- Base components - Cable Anchor - Cable (frays, abrasions)
- Legs - Cable and pulleys -Brake system (if equipped)
- Roller wheels - Carriage hold-down assembly - Wheels and casters
- Inner and outer frames - Forks - Glide buttons
Check the entire machine for:
- Dents or damage
- Corrosion or oxidation
- Cracks in welds or structural components
Page 3of9
©Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
Hand Winch Lifter (Adjustable Straddle)
(Part # 273512, 273513 & 273514)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HAND WINCH
LIFTER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.

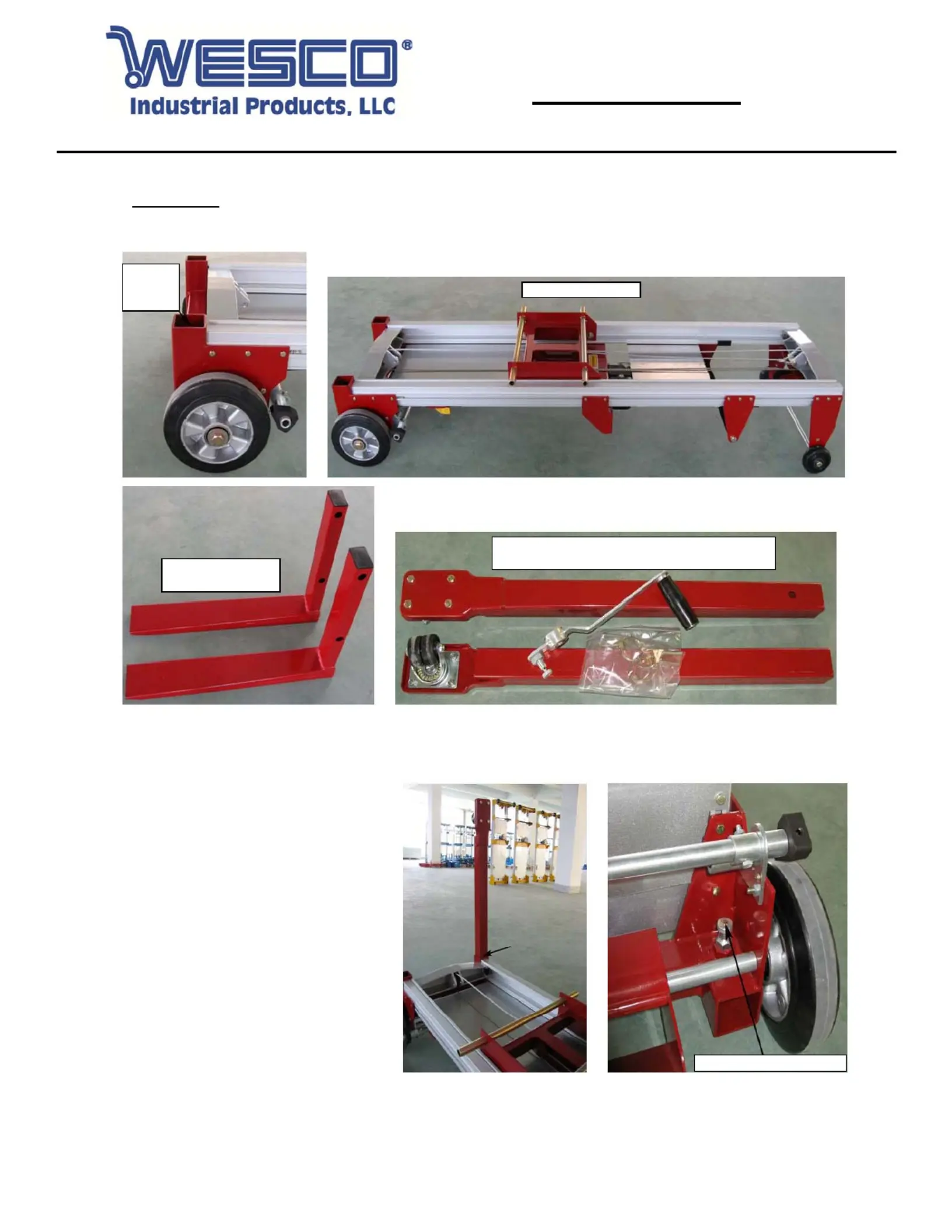

3. ASSEMBLY
Unassembled Unit Breakdown
Step 1: Connect the support legs to the main assembly
1) Insert a support leg into each of the
openings in the main assembly.
2) One at a time pull the retaining pegs
to allow the legs to slide further into
the openings.
3) Slowly release the pegs. You may
have to wiggle the leg to get the peg
to drop.
4) Pull upwards on each of the support
legs to verify that they are held in
place by the pegs. The legs should
not be able to slide out of the
opening.
5)
If a leg comes out of the opening, the
corresponding peg did not engage
properly.
Support
Leg
Openings
1) Main Assembly
2) Box 2 contains: 2 pcs standard support legs; 4
pcs fork retaining pins; 1 pc winch handle
3) Box 1 contains:
2 pcs forks
Spring-loaded retaining peg
