Waterstone 9065 Handleiding

Bekijk gratis de handleiding van Waterstone 9065 (1 pagina’s), behorend tot de categorie Niet gecategoriseerd. Deze gids werd als nuttig beoordeeld door 3 mensen en kreeg gemiddeld 4.8 sterren uit 3 reviews. Heb je een vraag over Waterstone 9065 of wil je andere gebruikers van dit product iets vragen? Stel een vraag

REQUIRED TOOLS:PARTS INCLUDED:

Adjustable Wrench

Optional Caps - Soap, Lotion and Finish

(TRADITIONAL MODELS ONLY)

COUNTER

OR SINK

SPACER IS FOR

#4065 AND #9065

MODELS ONLY

1-3/8”

HOLE

A

B

C

F

G

D

E

1.

2.

3.4.

5.

6.7.

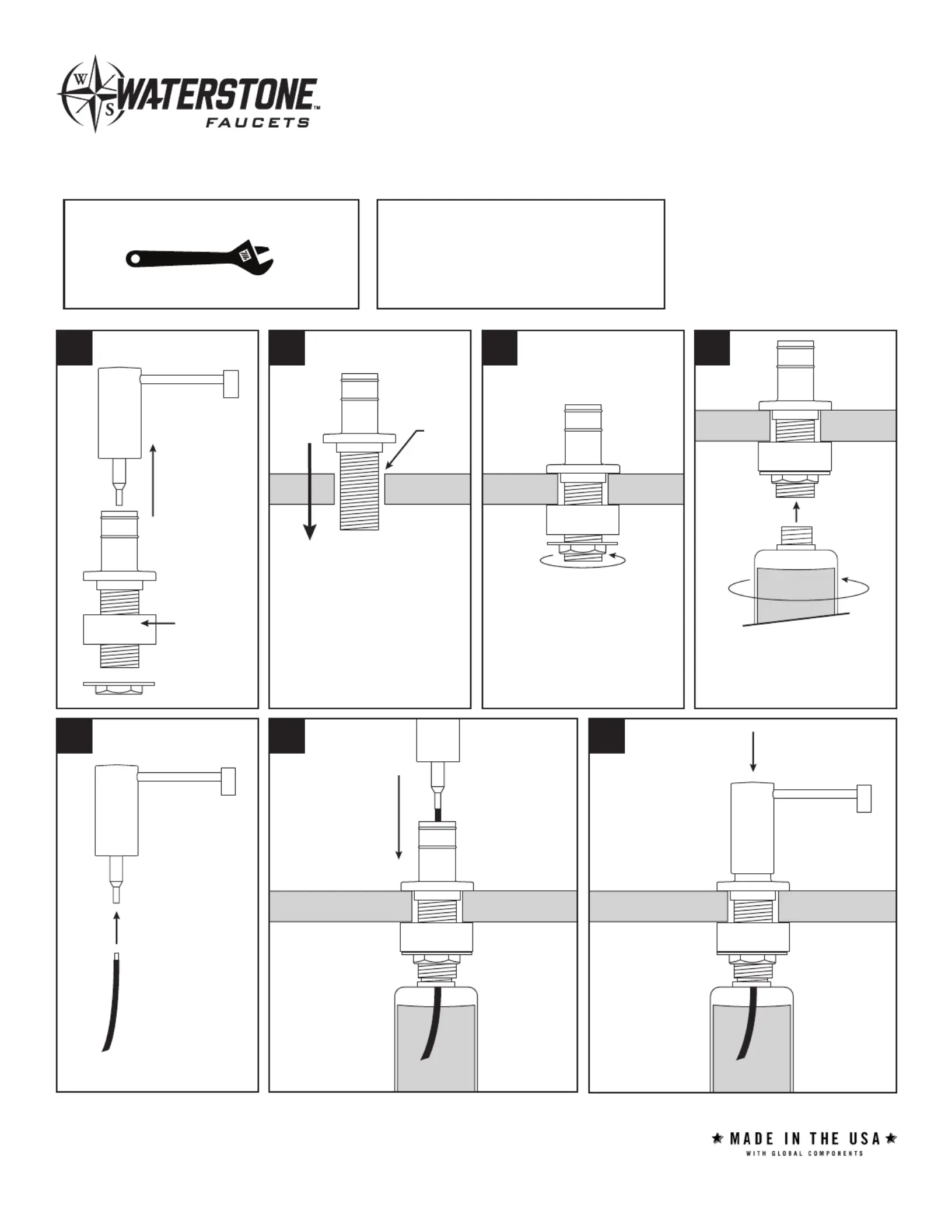

BEFORE YOU BEGIN YOUR INSTALLATION:

038-SOAP Rev. D

SOAP/LOTION DISPENSER INSTALLATION

Model #s 4055, 4060, 4065, 9065

Slide the brass spacer ring up to top

of dispenser shroud, then thread

the clamp nut. Tighten nut snug to

underside of sink or counter.

Add soap or lotion to plastic bottle. Thread

bottle (E) into bottom of dispenser

shroud.

Pull and remove

spout (A) from

dispenser body

(B). Remove clamp

nut (C) and brass

spacer ring (D) from

threaded shroud.

Slide red tubing (F)

into tube tting (G) at

bottom of spout.

Insert open end of red

tubing down through

dispenser and into

plastic bottle.

Push down on spout to

secure over white O-rings.

Pump spout a few times to

get soap or lotion owing.

Fit dispenser body through 1-3/8” hole

on counter or sink. (No plumbers

putty is required. O-ring seals base).

41180 Raintree Court • Murrieta, CA 92562

1-888-304-0660 • 951-304-0520

www.waterstoneco.com
