WATERSTONE, LLC

POTFILLER INSTALLATION INSTRUCTIONS

For Potfiller Part #’s 3100, 3150

Tools needed for installation:

- 1/4” hex wrench (provided in installation kit)

- 3/32” hex wrench (provided in installation kit)

- Pencil or marker

- Teflon tape

- Small level, or carpenters square

- Power Drill with ¼” drill.

PREPARATION PRIOR TO INSTALLATION

(Instructions for your plumber)

ROUGH IN PLUMBING REQUIREMENTS: (the tools mentioned above do not

apply to the rough in plumbing process)

Prior to installation of your Waterstone Potfiller, the rough in plumbing must be

completed. Position of your potfiller should be considered prior to starting your

rough in plumbing. When fully extended from the wall the reach of the potfiller is

22 inches. Indicate and use a position on your wall that will allow the potfiller to

reach the furthest cooking position for filling. (see example below) We

recommend aligning the potfiller valve either to the left side or right side of the

edge of the cooking surface so that access to the valve ideally does not take the

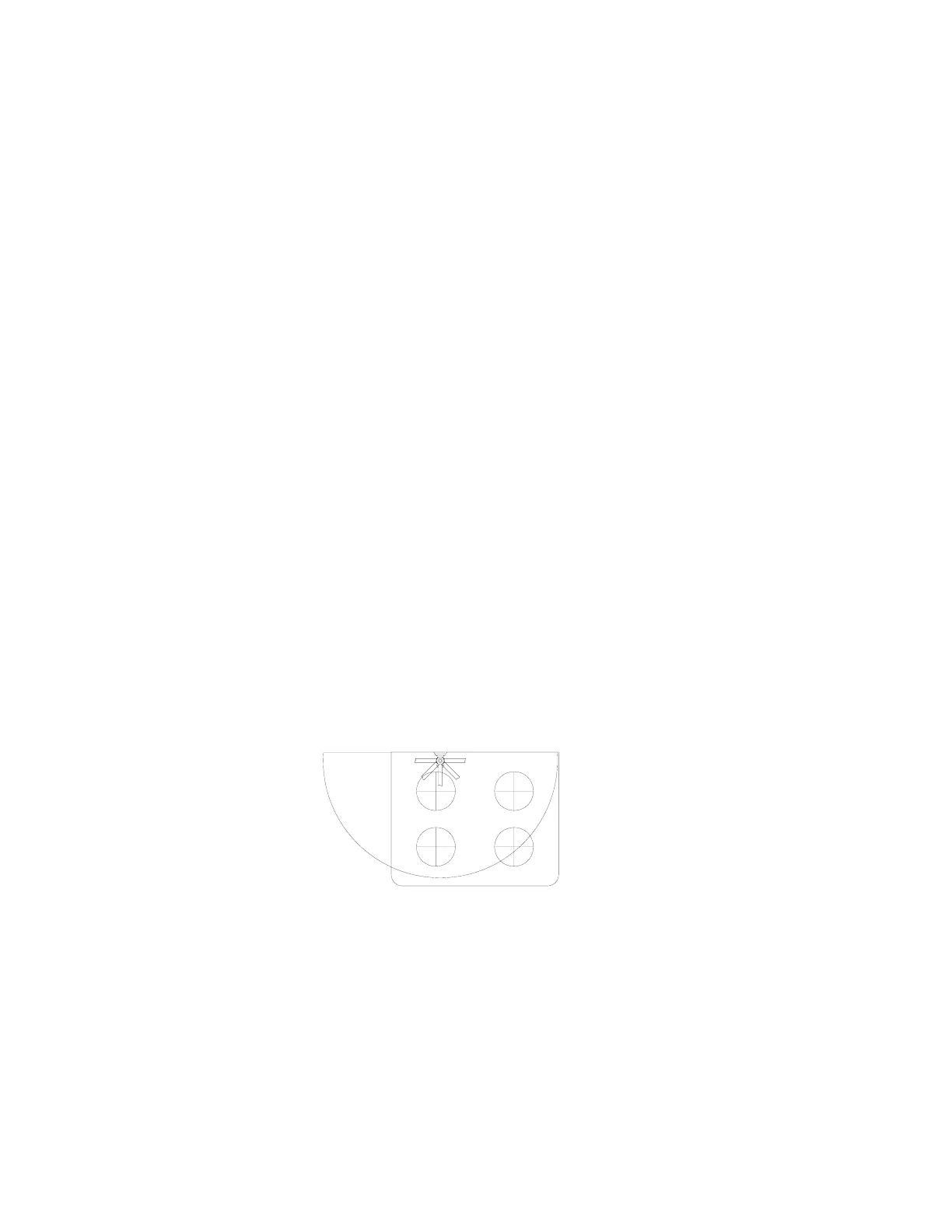

user over the center of the cooking area. (see diagram below)

Once the position of the potfiller has been determined, you can plumb the stub

out pipe from your household water source. We specify a ½” NPT pipe nipple

for the rough in plumbing stub out.The end of the stub out can only

extend ½” beyond the mounting surface. We also recommend that the pipe

be loosely strapped behind the wall to allow some play or in and out movement in

the pipe extending beyond the wall (Your Waterstone potfiller uses a mounting

plate to secure to the wall, some play between 1/8” and 1/4 “ will make the

alignment easier). The height of the stub out pipe should be approximately 13

inches above the cooking surface. This will allow adequate clearance for most
