Instruction：
：：
：LED WALL SCONCE BRACKET
Model：
：：
：WS-MR57LED
Retain these instructions for future service and
adjustments
44 Harbor Park Drive, Port Washington, NY 11050
Tel: (800) 526-2588 Fax (800) 526-5050
www.waclighting.com

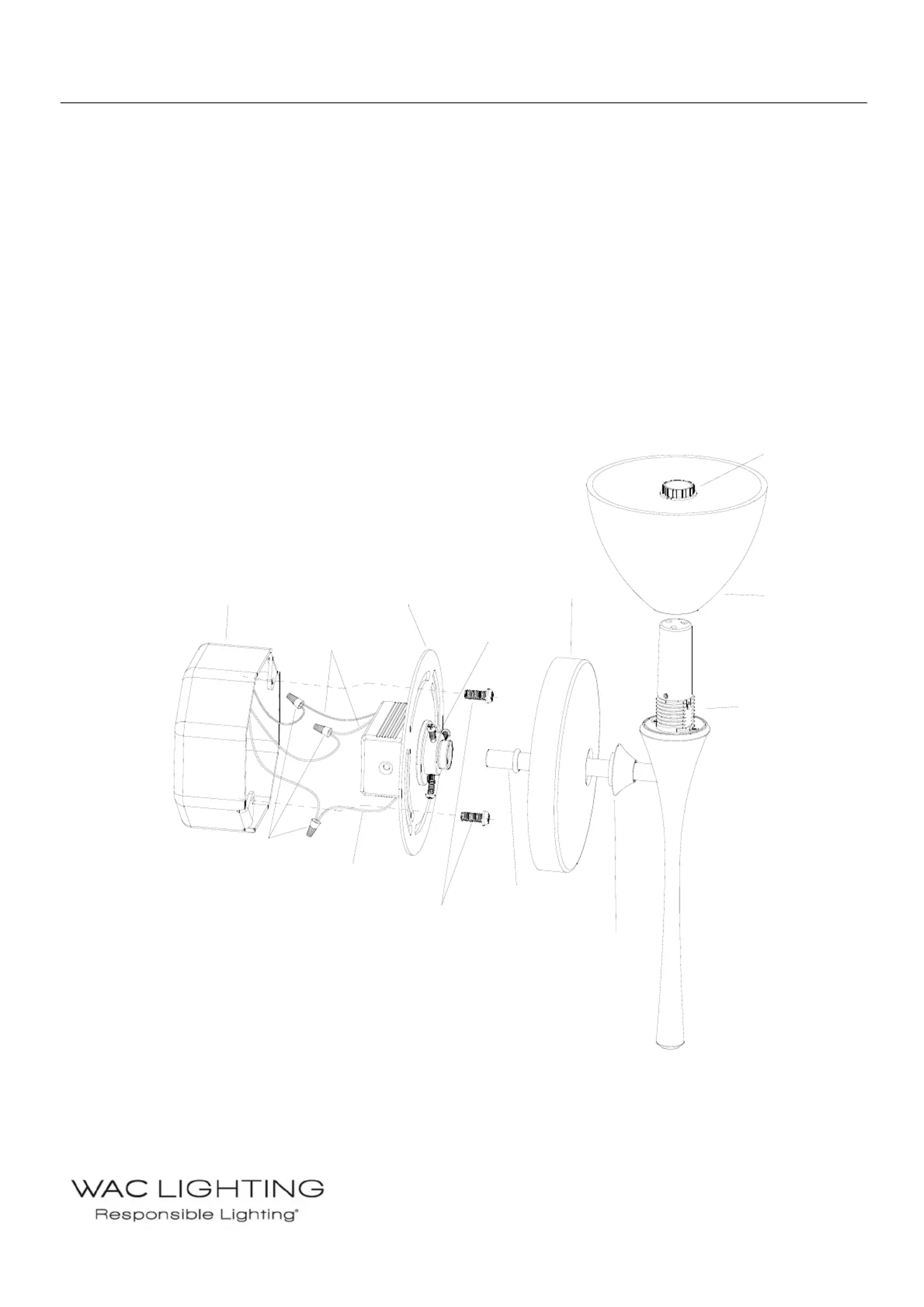

Shade Lock Ring
Junction Box
Lock Ring
Ground wire
Wire Connector
Fixture Shaft
Junction Box
Screw
Transformer
Input Wire
Mounting Plate
Mounting plate
collar
Canopy
Shade
Fixture Socket
CAUTION:
Always turn o power at main switch prior to installation to prevent electrical shock.
Intended for installation in accordance with National Electrical Code, and local regulations.
For installation by a qualied electrician.
Install over a standard 4-inch junction box.
Overview:
WS-MR57LED is designed to accept glass shades from the G500 series. Check catalog for various style and color
choices.
WS-MR57LED comes with a self-contained electronic transformer that may be dimmed with an electronic low
voltage dimmer switch.
Fixture Installation:
1. Unscrew the lock ring and separate the canopy and mounting plate.
2. Connect ground wire from junction box to the grounding wire on the mounting plate.
3. Connect corresponding colored wires from the junction box to
xture wires, with wire connectors.
4. Tuck excess wire into the junction box. Attach the mounting plate
to the junction box using the slotted holes.
5. Adjust the xture shaft, align the socket vertically, by loosen and
tighten the three screws on the mounting plate collar.
6. Secure the canopy to the mounting plate by tightening lock ring.
Shade Installing:
1. Unlock the shade lock ring from the xture.
2. Place shade over the xture socket.
3. Screw the shade lock ring from above.
Product specificaties
| Merk: | WAC Lighting |
| Categorie: | Verlichting |
| Model: | WS-MR57LED |
