WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014

INSTALLATION INSTRUCTION

LED Step and Wall Lights

WL-LED100

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electric Code,

and local regulations. Consult with local inspector to ensure compliance.

- To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing

or modifying the system.

- Retain instructions for future maintenance reference.

- Not complying with instructions could result in failure of the xtures, and void the warranty.

INSTALLATION:

JUNCTION BOX: 2” x 4” boxes to have minimum inside dimensions of 3”H x 2”W x 2”D in order to accommodate xtures.

Note: Actual depth of box to be determined in accordance with the NEC and local ordinances. Indoor or outdoor frame mounted

junction box: Raco 2” x4” (16.5 cu. In) or equivalent recommended. Outdoor surface mounted junction box: Red Dot deep

weatherproof box Model S103E or equiv. recommended. Mortar or poured concrete installation: Use appropriate junction box

suitable for that particular application

1. Install 2”x4” junction box, and ensure it is water-tight for outdoor use.

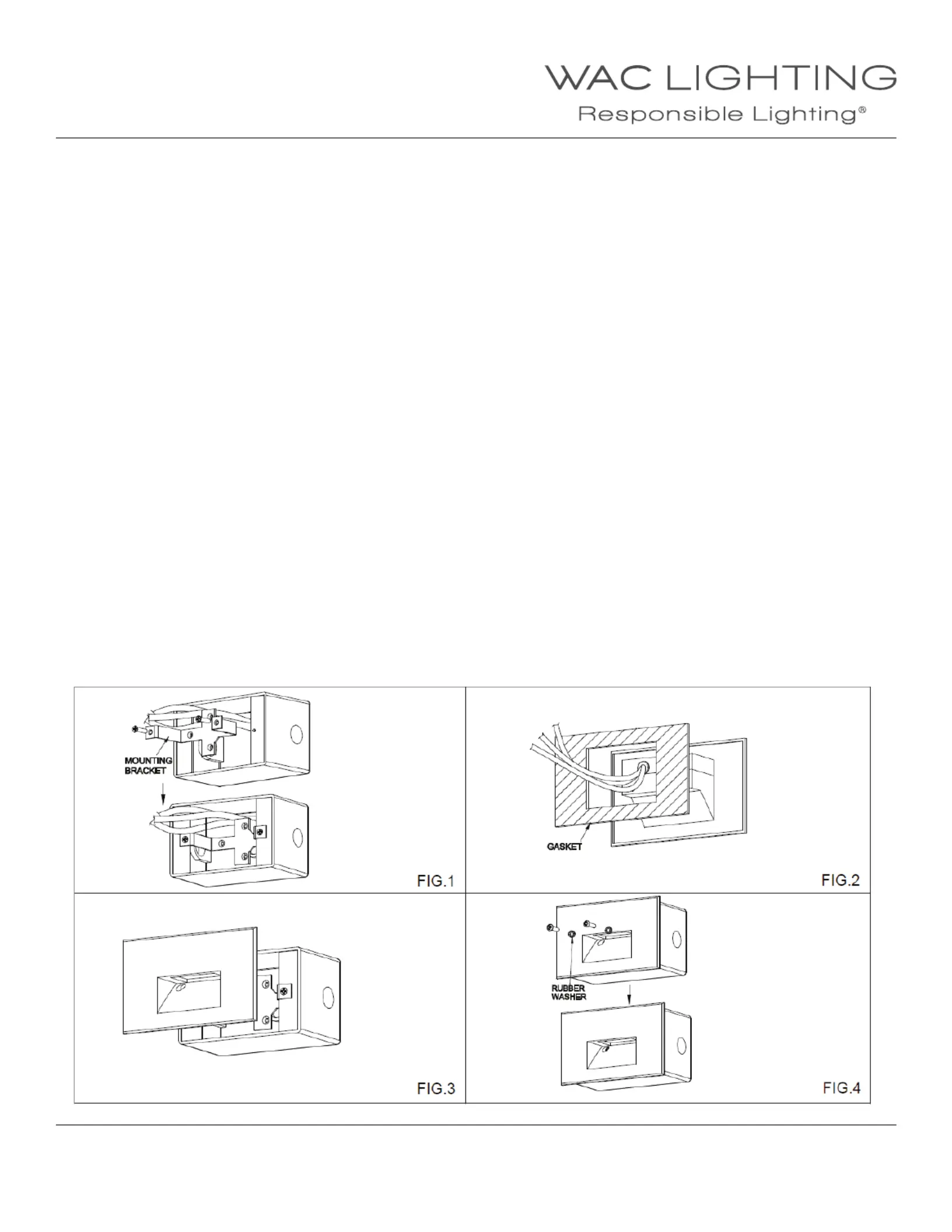

2. Secure mounting bracket to J-box using (2) 8-32 J-Box screws (J-box and screws by others) as shown in Fig.1.

3. Insert gasket onto the back of the xture (Fig.2). Note: For indoor installation, gasket is not required, and can be discarded.

4. Connect the xture wires to the junction box wires as follows: Black xture wire to black (Hot) J-BOX wire,

white xture wire to white (Neutral) J-box wire, and green xture wire to Ground. (See Fig.3)

Note: Multiple xtures (up to 200) can be wired together in parallel: Hot to hot, and neutral to neutral.

5. Place all wiring and connectors back in junction box and install the xture.

Note: For outdoor installation, it is recommended that the installer run a bead of clear, outdoor-rated

silicone (GE RTV-162 or equivalent, provided by others) caulk between gasket or back of xture and

mounting surface to prevent seepage of water into xture.

6. Secure the xture to the surface using two mounting screws and two rubber washers provided. (See Fig.4)

(Note: Fixture, mounting bracket, gasket, mounting screws, and rubber washers provided by WAC.)
