INSTALLATION INSTRUCTION

Motion Sensor

MS-120

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

-Read all instructions before installing.

-System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

-Lisez toutes les instructions avant d’installer.

-Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

INTRODUCTION

The Motion Sensor utilizes passive infrared (PIR) technology to detect heat radiation of moving bodies. Upon detection, the connected lighting

load will illuminate for a user-determined time period. An integrated daylight sensor (Photoelectric Cell) ensures operation and detection only at

night. The extension kit provides versatility in aiming the unit.

Input: 120V AC

Max. Load: 200W LED Lamp

Application Location: Dry or Wet locations

FEATURES

1. Intelligent motion control of luminaires based on occupancy.

2. The double hinge structure allows users to aim the sensor in any position they want.

3. Can be mounted on a canopy or on a lighting xture.

4. Built-in adjustable timer allows automatic shut o after the sensor coverage area is vacated.

Maximum time delay is 5 minutes, minimum is 5 seconds.

5. Designed for outdoor (wet location) or indoor application. Recommended ambient temperature is -20°C (-4°F) to 50°C (122°F).

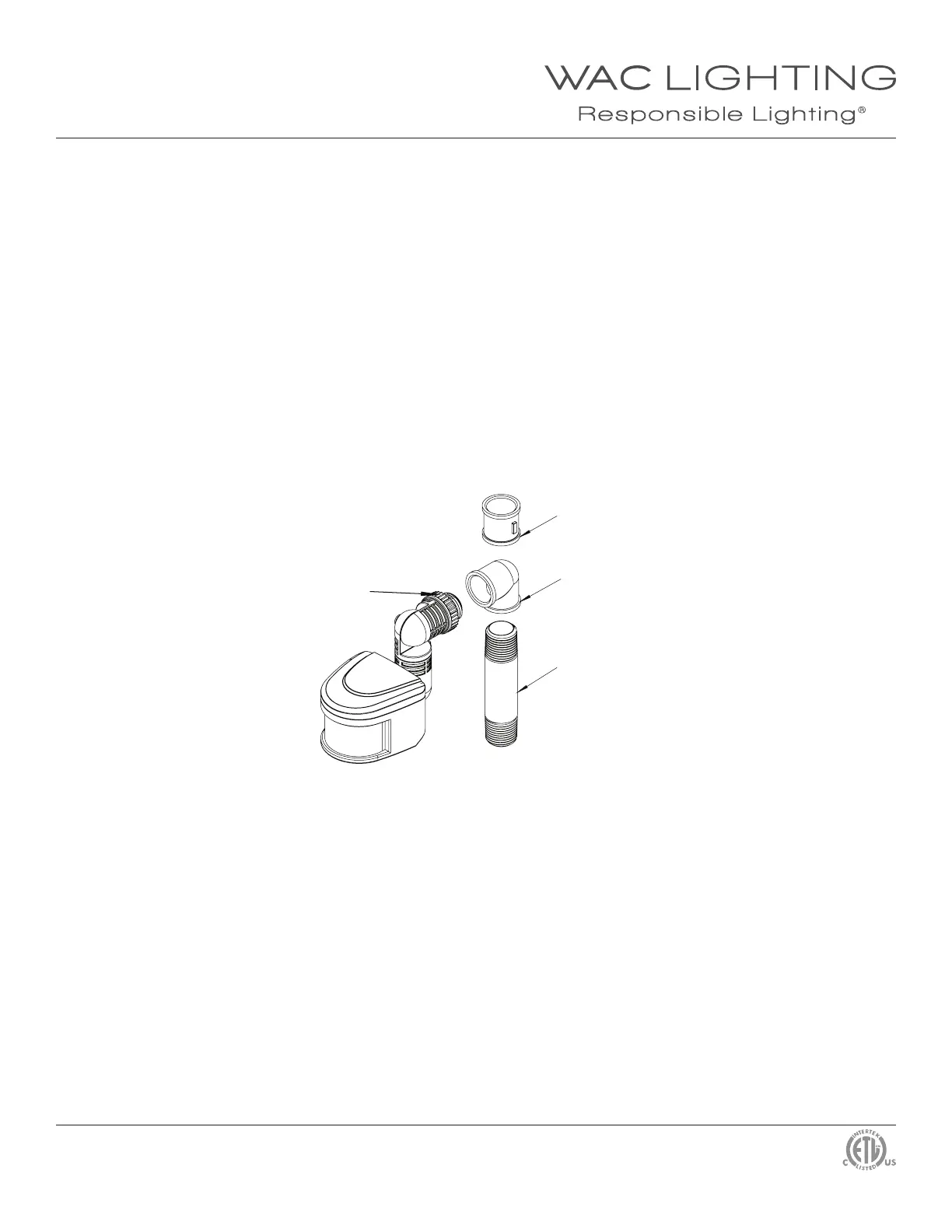

I - Connector

L - Connector

Locking Nut

Extension Rod
