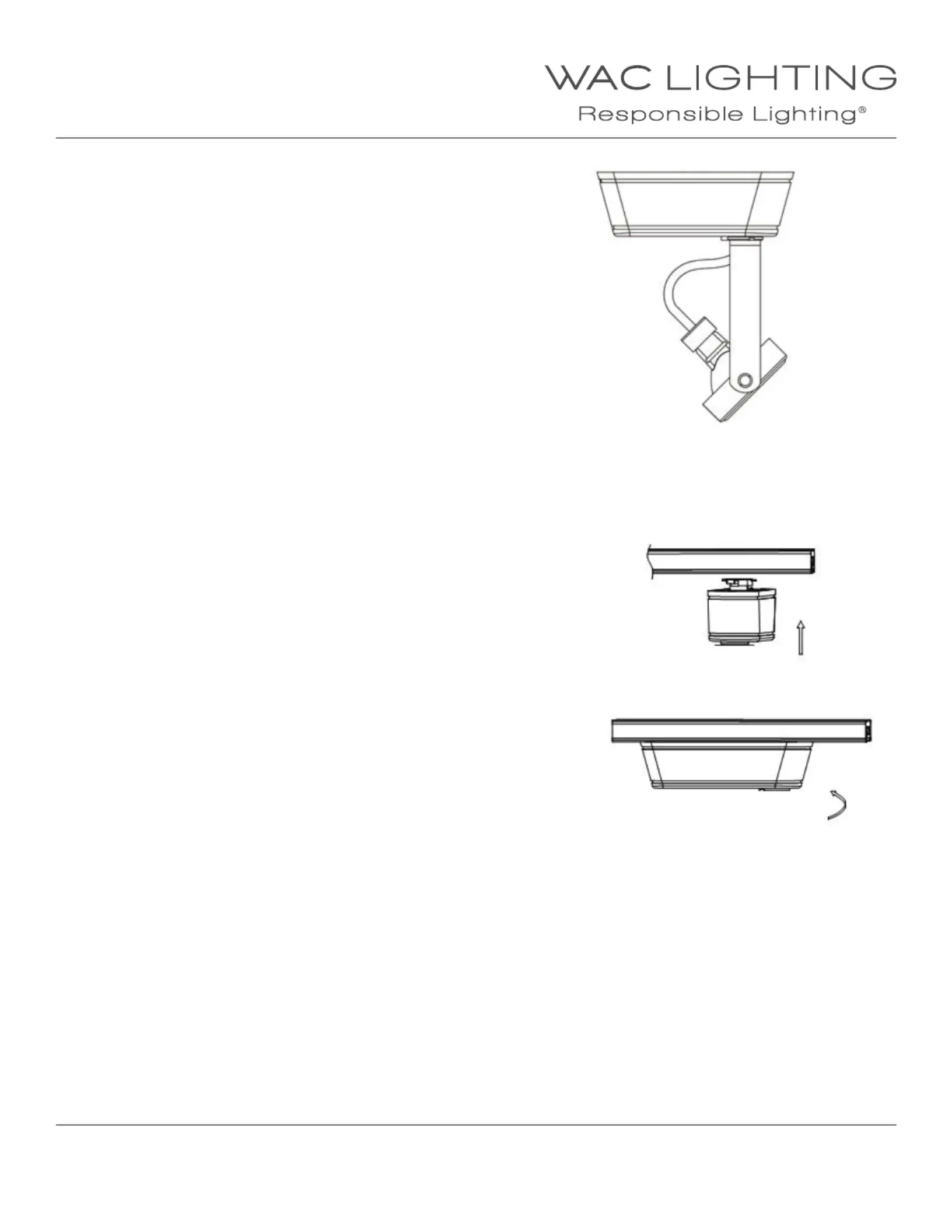

INSTALLATION INSTRUCTION
180 Low Voltage LED Track Luminaires
HHT-180LED, LHT-180LED, JHT-180LED
CAUTION:
Read all instructions before installing.
Switch o power before installing or re-lamping.
Do not attempt to energize anything other than a track light xture.
All installation shall be in accordance with NEC and all local codes.
OVERVIEW:
Fixtures are designed for use on on WAC “L” , “H” , “J” series track.
They may also be used on other manufacturer’s brand of track
(consult factory for compatibility).
LAMPING:
1. Use dimmable MR16 LED lamp (included)
2. Insert lamp into the shade so the lamp pins protrude through
the back.
3. Place pins in the socket holes and twist 1/4” to the right.
The lamp should feel rmly seated.
4. Seat the lamp under the “V” spring of the gimbal ring.
FIXTURE INSTALLATION
1. Note the track has a groove running its length to indicate polarity.
2. Note the slant of the locking tab.
3. Insert adapter into track slot and rotate adaptor 90º so that
the low side of the locking tab faces the grooved side of the track.
4. Make sure the locking tab seats in the track slot.
5. Removal is the reverse procedure. Track heads may be positioned
anywhere along the track length.
6. Not suitable for use on wall mounted track.
