CONTROL UNIT FOR COMMAND OR CENTRALIZATION MOTOR
Control unit for one electromechanical motor, centralizaon or integra-
on dry contact command.
The control unit imputs is: local impulsive command (open and close), ge-
neral impulsive command (open and close), general priority command
(open and close) dead man switch.
Prevalence of general command (dead man switch) on other controls.

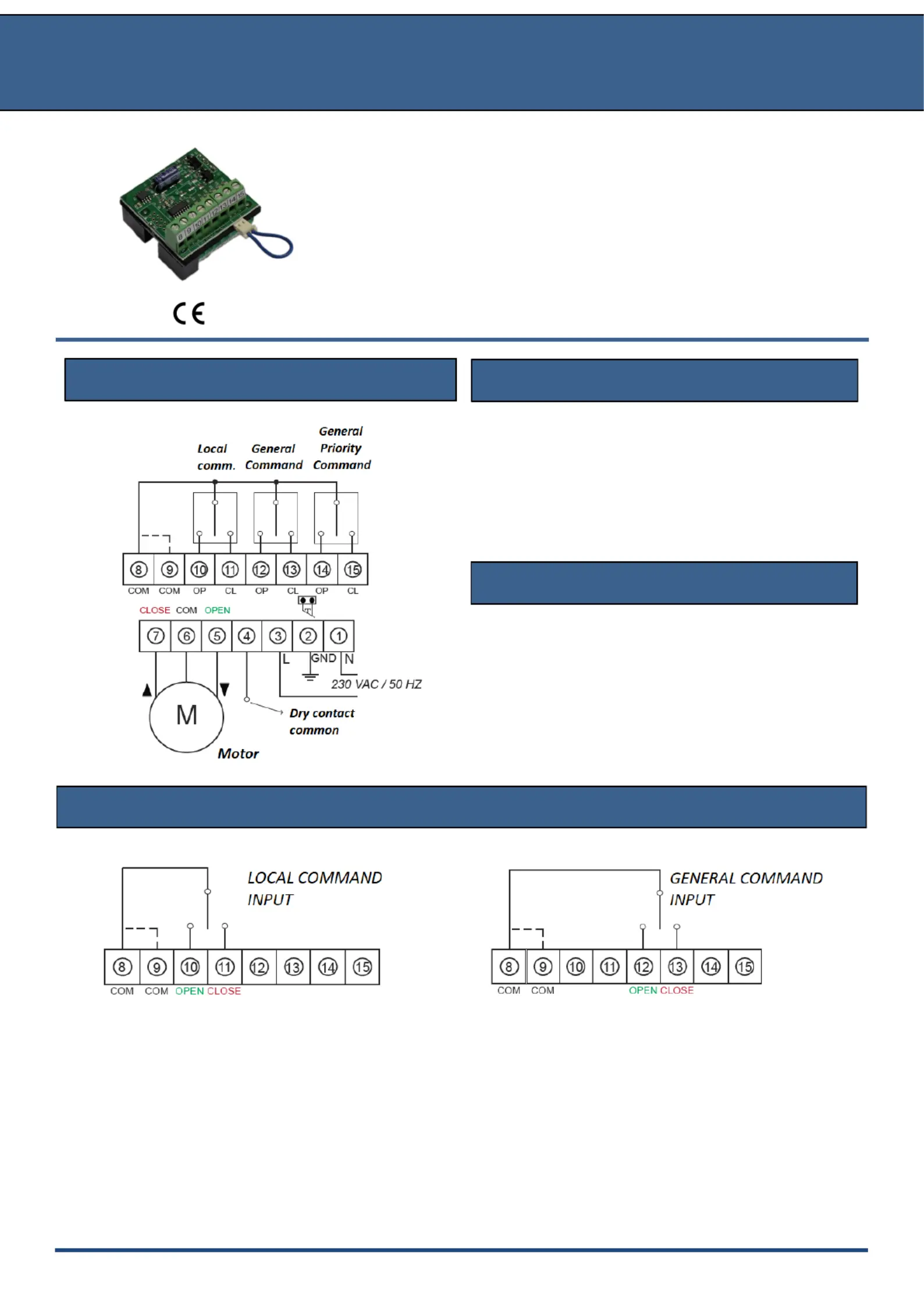

CONNECTION LAYOUT
TECHNCIAL FEATURES
Power supply: 230 Vac ± 10% / 50 Hz
Corr. max output: 5 A cos 1,4 / 2 A cos 0,4φφ
Work Time: 120 seconds
Tens. output with: 230 Vac / 50 Hz
Dimensions without box: 46x46x37 mm
Terminal secon: ²2,5 mm
INPUTS AND OUTPUTS CONNECTION
1 = 230 Vac Neutral
2 = GND
3 = 230 Vac Phase
4 = COM x cont. neutral
5 = OPEN output
6 = COM x engines.
7 = CLOSE output.
8 9 -= COMMON commands.
10 = OPEN local command.
11 = CLOSE local command.
12 = OPEN general comm.
13 = CLOSE general comm.
14 = OPEN priority gen. comm.
15 = CLOSE priority gen. comm.

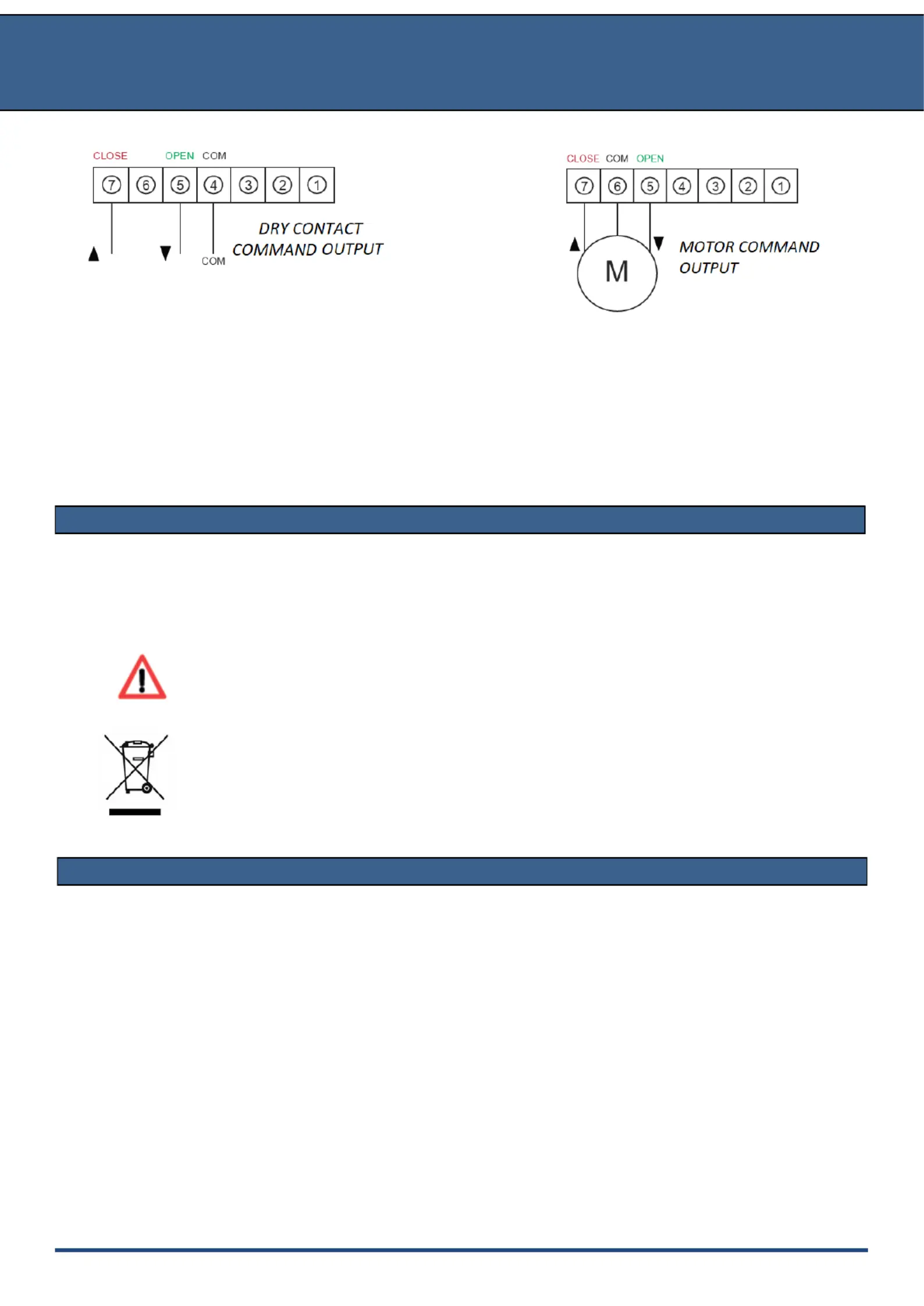

CONTROL UNIT CONNECTION
LOCAL COMMAND INPUT: allows the LOCAL com-
mand of the motor or system. The type of command
is IMPULSIVE and the contacts are voltagefree. To -
stop the engine give an inverse command respect to
the one in progress (ex: if OPEN = CLOSE). Timed
command. Mulple buons can be connected in
parallel. Recommended cable for connecon: 3x0.25
mm or 3x0.22 mm.
GENERAL COMMAND INPUT: allows the GENERAL com-
mand of the engine or system. The type of command is
IMPULSIVE and the contacts are voltagefree. To stop the -
engine give an inverse command respect to the one in
course (ex: if OPEN = CLOSE). Timed command. It’s possi-
ble to connect several buons in parallel with each other.
Cable recommended for connecon: 3x0.25 mm or
3x0.22 mm.
