Pagina 1/14

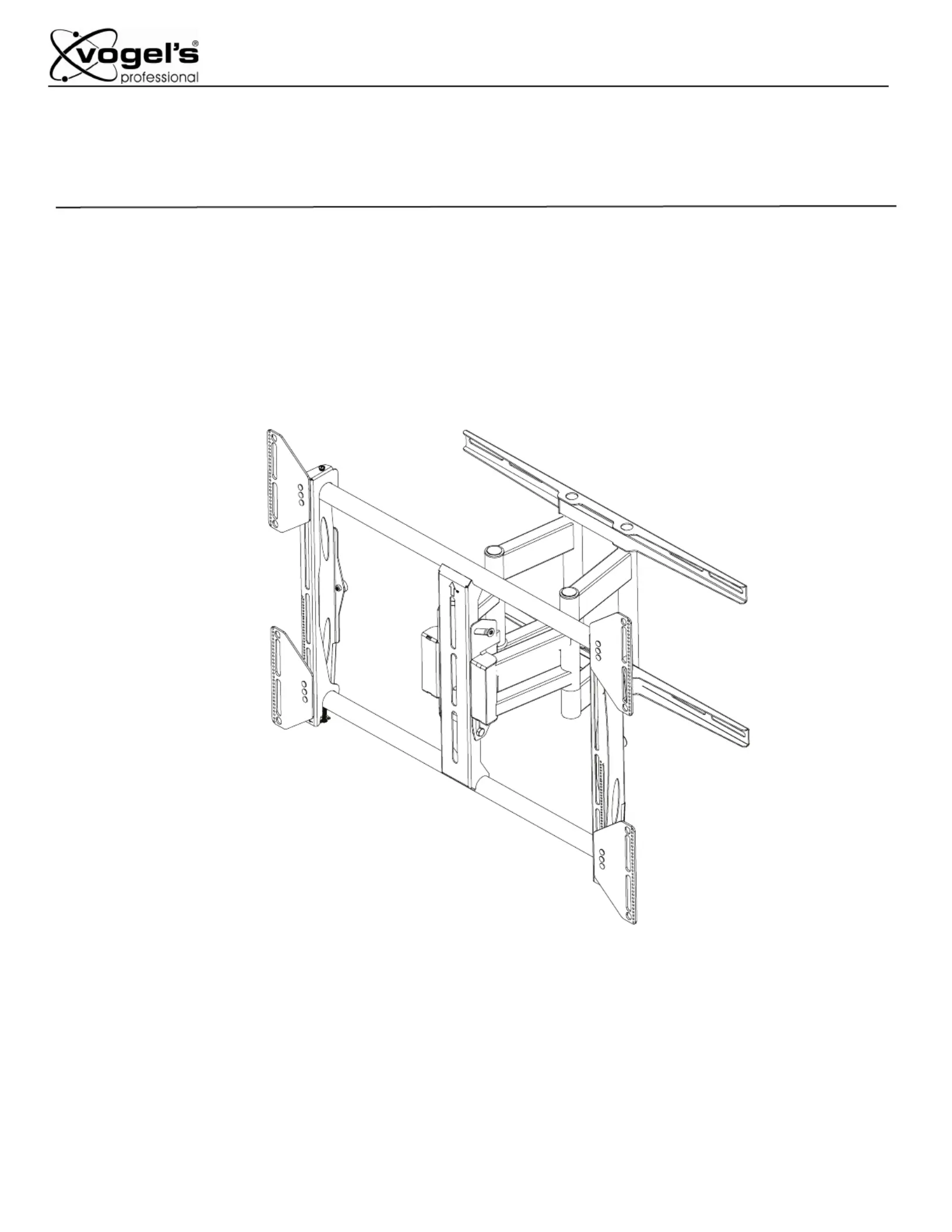

INSTALLATION INSTRUCTIONS

9531-007-Z00-01

PFW 6851

Display Wall Mount, Turn & Tilt 80 kg

Page 2 Installation Instructions

Table of Contents

Warning Statements

Warning Statements 2

Parts List 3

Installation Tools 3

Wood Stud Installation 5

Concrete Surface Installation 7

Determining the Mounting Hardware 8

Universal Spacer Installation 9

Griplate™ Installation 9

Mounting Bracket Installation 10

Adapter Plate Installation (optional) 11

Attaching the Flat Panel to the Wall 12

Securing and Leveling the Flat Panel 12

Adjusting the Flat Panel Tilt 13

Plastic Channel Cover Installation 13

Technical Specications 14

Warranty 15

PFW 6851

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND

COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND

PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

VOGEL’S DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY VOGEL’S

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED

ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS,

ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER

RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE FLAT PANEL. IF NOT, THE

STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT IS 79 KG. PROPER

INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS,

MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY

GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualied people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the at

panel.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud nder is

recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical

wires in wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water

damage to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Installation Instructions Page 3

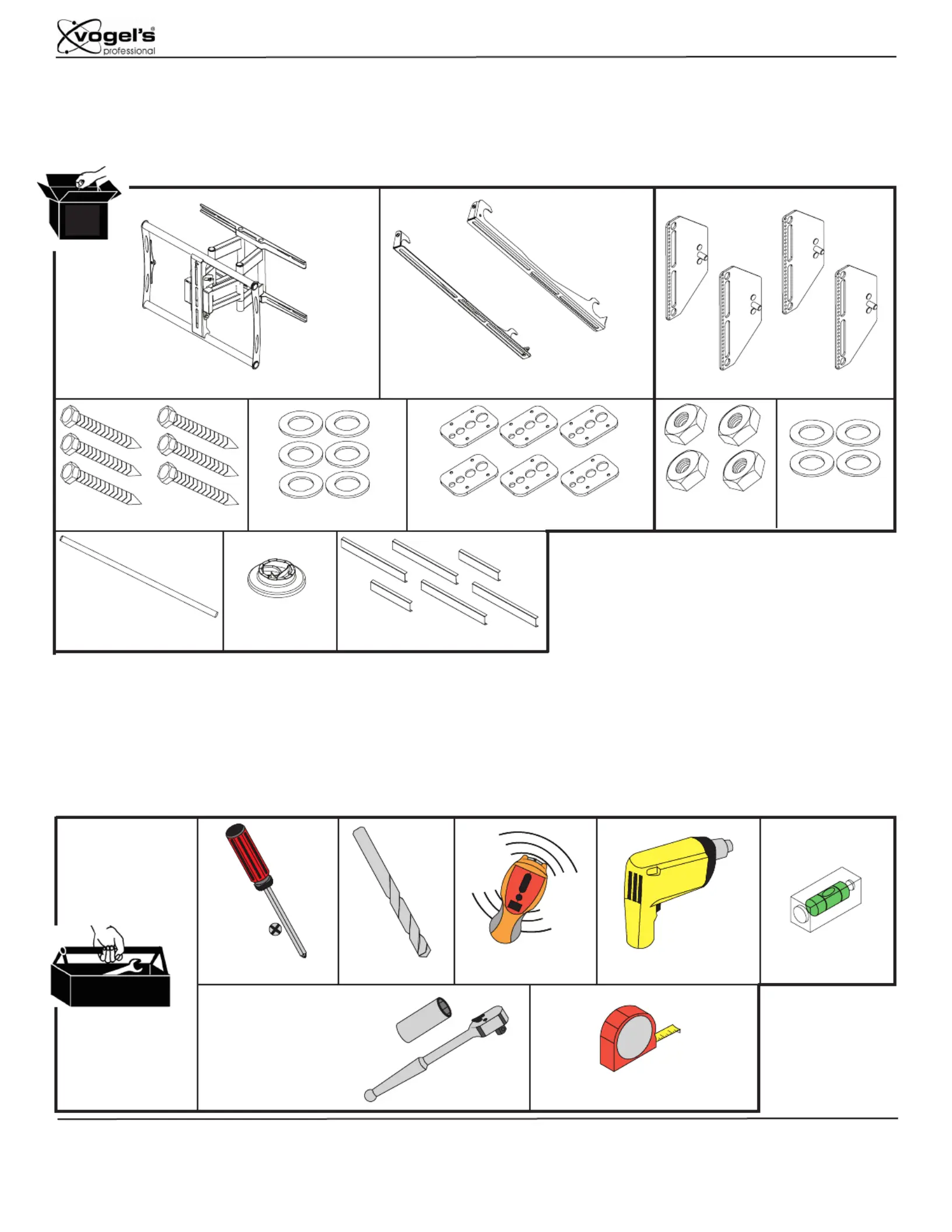

Parts List

PFW 6851

Installation Tools (not supplied)

Phillips Screwdriver

1/4” Drill Bit

Electronic Stud Finder Drill Level

1/2” Socket and Socket

Wrench

Tape Measure

Universal

Spacers (Qty 24 )

Thread Depth

Indicator (Qty 1)

Swingout Arm (Qty 1)

5/16” x 3” Lag Bolts (Qty 6)

5/16” Flat Washers (Qty 6)

Griplate (Qty 6)™

Universal Mounting Brackets (Qty 2)

Extension Adapter Hardware Pack

5/16” Flat Washers

(Qty 4)

M8 Nylon Nut

(Qty 4)

Extension Adapters (Qty 4)

Channel Covers (Qty 6)

Product specificaties

Merk:	Vogel's
Categorie:	Niet gecategoriseerd
Model:	PFW 6851
Kleur van het product:	Zwart
Breedte verpakking:	650 mm
Diepte verpakking:	609 mm
Hoogte verpakking:	139 mm
In hoogte verstelbaar:	Nee
Montagewijze:	Muur
Maximale gewichtscapaciteit:	80 kg
Paneelmontage-interface:	200 x 200,820 x 650 mm
Draaien:	Nee
Montage interface compatibiliteit (min):	200 x 200 mm
Montage interface compatibiliteit (max):	820 x 650 mm
Aantal displays ondersteund:	1
Verbeterd kabelbeheer:	Nee
Maximale schermgrootte:	75 "
Code geharmoniseerd systeem (HS):	85299097
Minimale schermgrootte:	42 "
Afstand tot de muur (min):	79 mm
kantel aanpassingen:	Nee
