Pagina 1/7

www.vogels.com

9531-0016-Z00-02

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6850

www.vogels.com

9531-006-Z00-02

1/2”/14mm

M5 x 16mm M5 x 25mm M6 x 16mm M6 x 25mm M8 x 16mm M8 x 25mm 5/16” x 3”5/16”

2.5mm

10mm

Template

M10 x 60mm 4mm

x4 x4 x4 x4 x4 x4 x4

x8 x4

1/4” / 6.5mm

(Wood Only)

A2A1

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6850

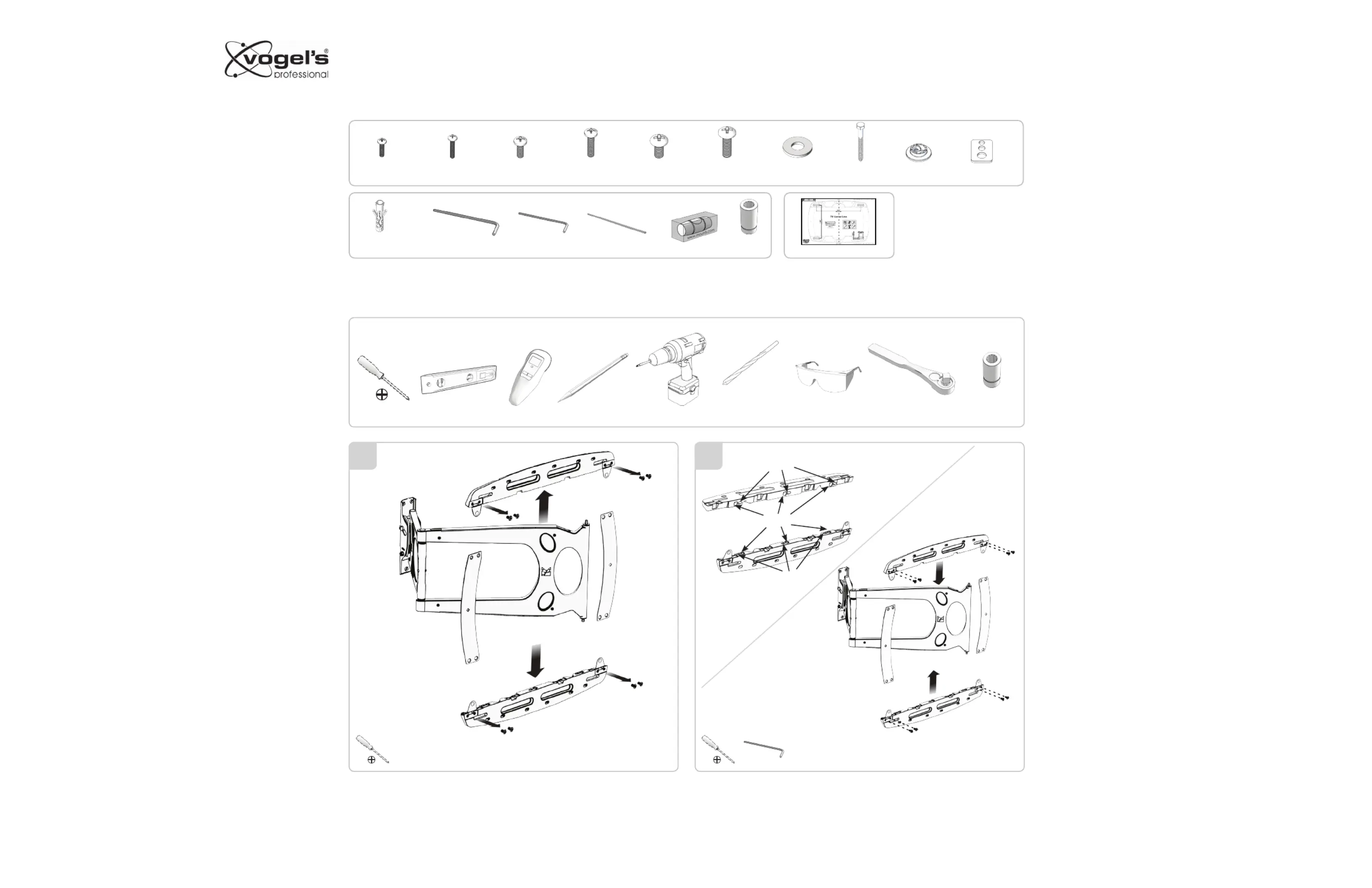

Remove the plastic hole covers from the upper and lower

plates. Loosen the (2) set screws on the plate using the

2.5mm allen key supplied. Reposition the upper and lower

pivot rods to mate to either the center or right side pivot

receiver holes, push the upper and lower plate fully on to the

rods, and re-tighten the set screws. Reinstall the side plate

with the eight flat head screws and confirm they are secure.

Reinstall the round plastic hole covers.

Prior to initial step 1 of the installation, your PFW6850 can

easily have the main “swing left” pivot point of the main swing

out arm moved to either the center, left or right of the mount

by simply placing the mount on a flat surface and removing

the eight flat head screws, then separating the upper and

lower wall plates.

Included components

Required for installation

Pivot

Set Screw

Locations

Set Screw

Locations

www.vogels.com

9531-006-Z00-02

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6850

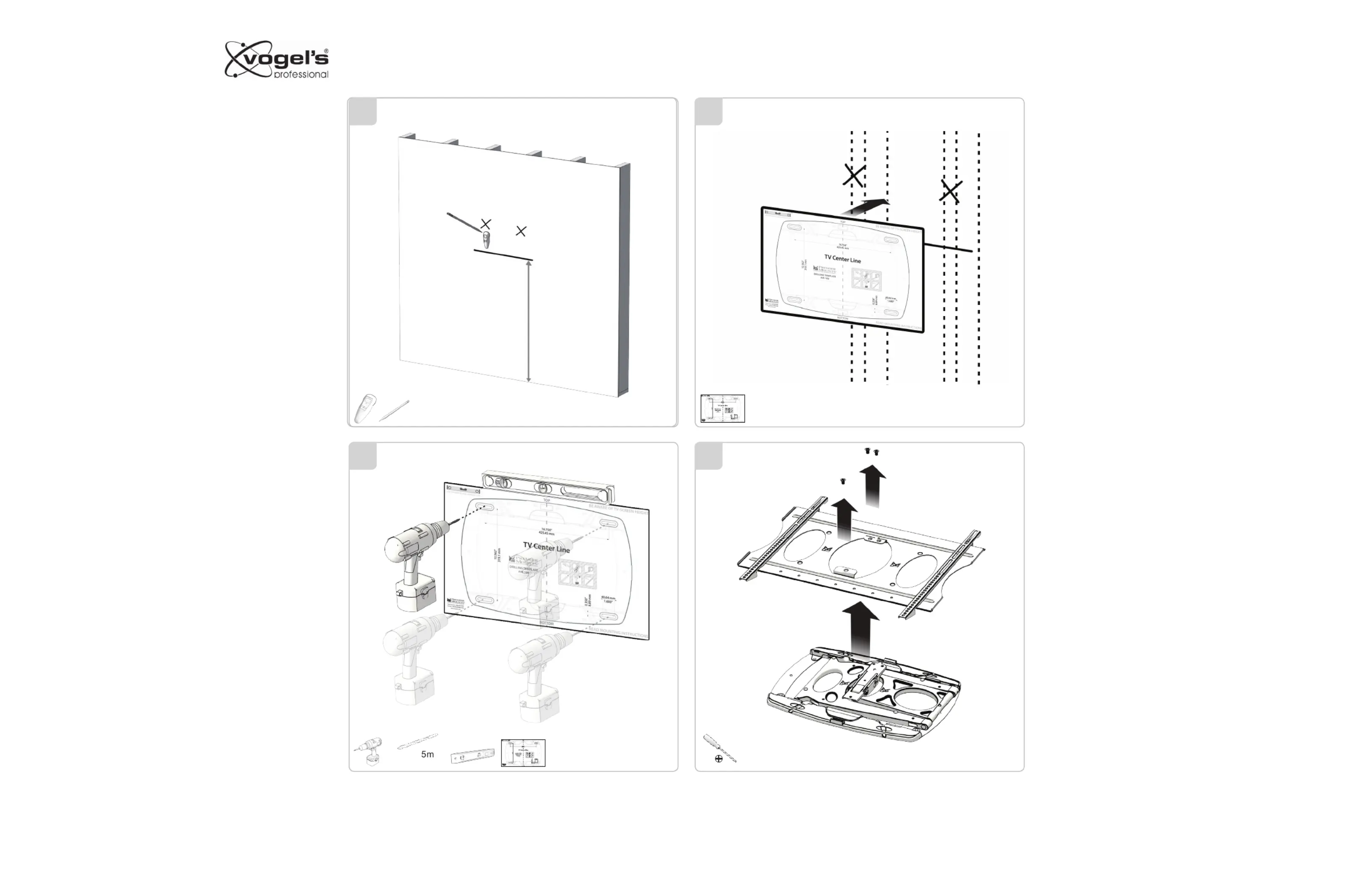

To ease the installation process you have the option to

remove the wide front plate and mounting brackets by simply

removing the three M5 x 10mm flat head screws, holding

the plate assembly to the swing out arm assembly and set-

ting them aside.

Take the thick cardboard mounting template supplied and

place the it over the mounting studs with the screen center

facing up. Confirm that the template is level horizontally and

that the wall place outline is to the center of your desired

height.

Using a suitable stud-finder device for frame walls, mark the

position of the stud centers.

Measure the desired height of the center of the screen and

mark it.

Using a 1/4” drill bit, drill pilot holes minimum 2” (50mm)

deep into the four marked mounting points on the wall

surface. For solid concrete wall construction, the supplied

plastic wedge anchors are recommend to be used with the

5/16 x 3” lag bolt and washers supplied.

1/4” / 6. m

Wood Only

Product specificaties

Merk:	Vogel's
Categorie:	Wandsteun
Model:	PFW 6850
Kleur van het product:	Zwart
Gewicht:	13480 g
Breedte verpakking:	780 mm
Diepte verpakking:	480 mm
Hoogte verpakking:	105 mm
In hoogte verstelbaar:	Nee
Montagewijze:	Muur
Maximale gewichtscapaciteit:	45 kg
Paneelmontage-interface:	100 x 100 mm
Draaihoek:	180 °
Montage interface compatibiliteit (min):	100 x 100 mm
Montage interface compatibiliteit (max):	630 x 526 mm
Aantal displays ondersteund:	1
Verbeterd kabelbeheer:	Nee
Bereik kantelhoek:	0 - 15 °
Maximale schermgrootte:	70 "
Code geharmoniseerd systeem (HS):	85299097
Minimale schermgrootte:	42 "
Hoogte verstelbaarheidsbereik:	- mm
kantel aanpassingen:	Ja
