Pagina 1/14
Installer manual
SW24.D
24 Vdc control panel for swing gates
2
SW24.D
EN
Contents: Page
1 - Product features .......................................................................................................................................................................................................... 1
2 - System type ................................................................................................................................................................................................................ 1
3 - Description of the terminal blocks ............................................................................................................................................................................... 2
4 - Connecting accessories .............................................................................................................................................................................................. 4
5 - Control panel programming ........................................................................................................................................................................................ 6
6 - DIP-switch functions ................................................................................................................................................................................................. 10
7 10 - LED functions ............................................................................................................................................................................................................
8 - List of alarms ............................................................................................................................................................................................................ 10
1
SW24.D
EN
1 - Product features
Control panel for 24 Vdc swing gates with a rated power of 80 + 80W, equipped with an encoder interface to detect obstacles and control the speed,
and an integrated 433 MHz receiver.
The control panel:
- can customize the slow-down distance and speed for both opening and closing
- has an obstacle detection system
- has LEDs input diagnostics and programming
- has a removable radio memory
- has an integrated receiver with a capacity of 200 remote controls (hard-coded or rolling-code)
- has current control to protect the electric motor
Technical specifications
Power supply 230 Vac
Motor supply voltage 24 Vdc
Maximum motor power 80 + 80 W
Flashing light output 24 Vdc 15 W max
Accessories power supply 24 Vdc 500 mA
Receiver memory 200 remote controls
Receiver frequency 433 MHz
Remote control encoding Rolling code or hard coded
Fuse F1 (line protection) ATO 15 A
Fuse F2 (accessory protection) 5x20 mm F3.15 A
Operating temperature -10 to +50°C
Controllable actuators
Ref. Description
EAM2 EKKO 300D linear operator 24 V 3 m 300 kg
EAM3 EKKO 400D linear operator 24 V 4 m 250 kg
EIM1 HIDDY 200D underground operator 24 V 2 m 200 kg

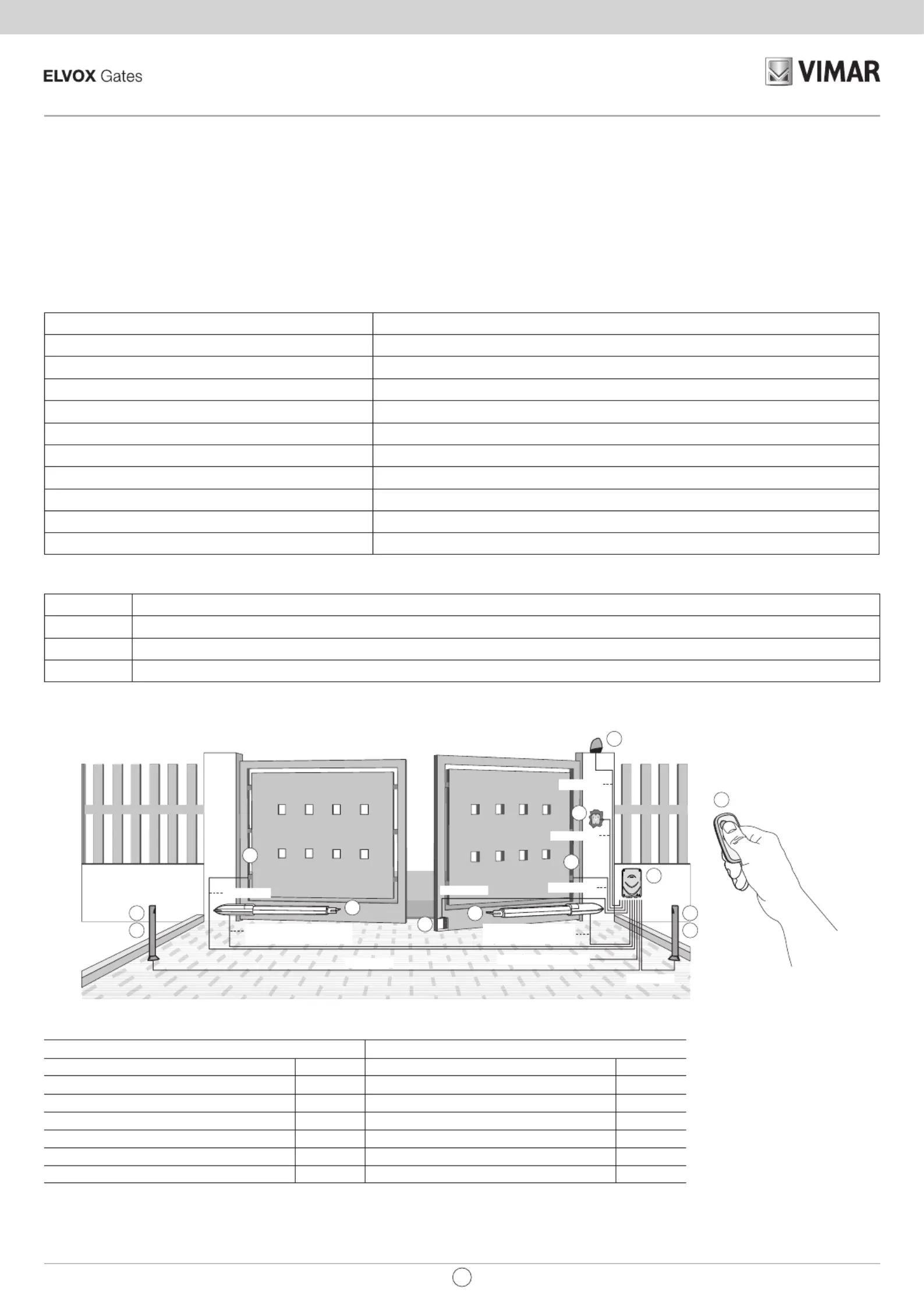

2 - System type
C
B
D
E
A
F
2x1 mm²
3x0.5 mm²
4x0.5 mm²
A
G
H
I
H
I
2x2.5 mm²+
3x0.5 mm² (encoder)
E
2x0.5 mm²
2x0.5 mm²
4x0.5 mm²
2x0.5 mm²
3x1.5 mm² (230 Vac)
2x2.5 mm²+
3x0.5 mm² (encoder)
Components for implementing a complete system
Main Components Accessories (optional)
Description Ref. Description Ref.
Actuator A GElectric lock + cylinder
Control panel Post-mounted photocellsB H
Blinking C Posts I
Remote control D
Wall-mounted photocells E
Key selector F
