01

Technical Support and E-Warranty Certificate

www.vevor.com/support

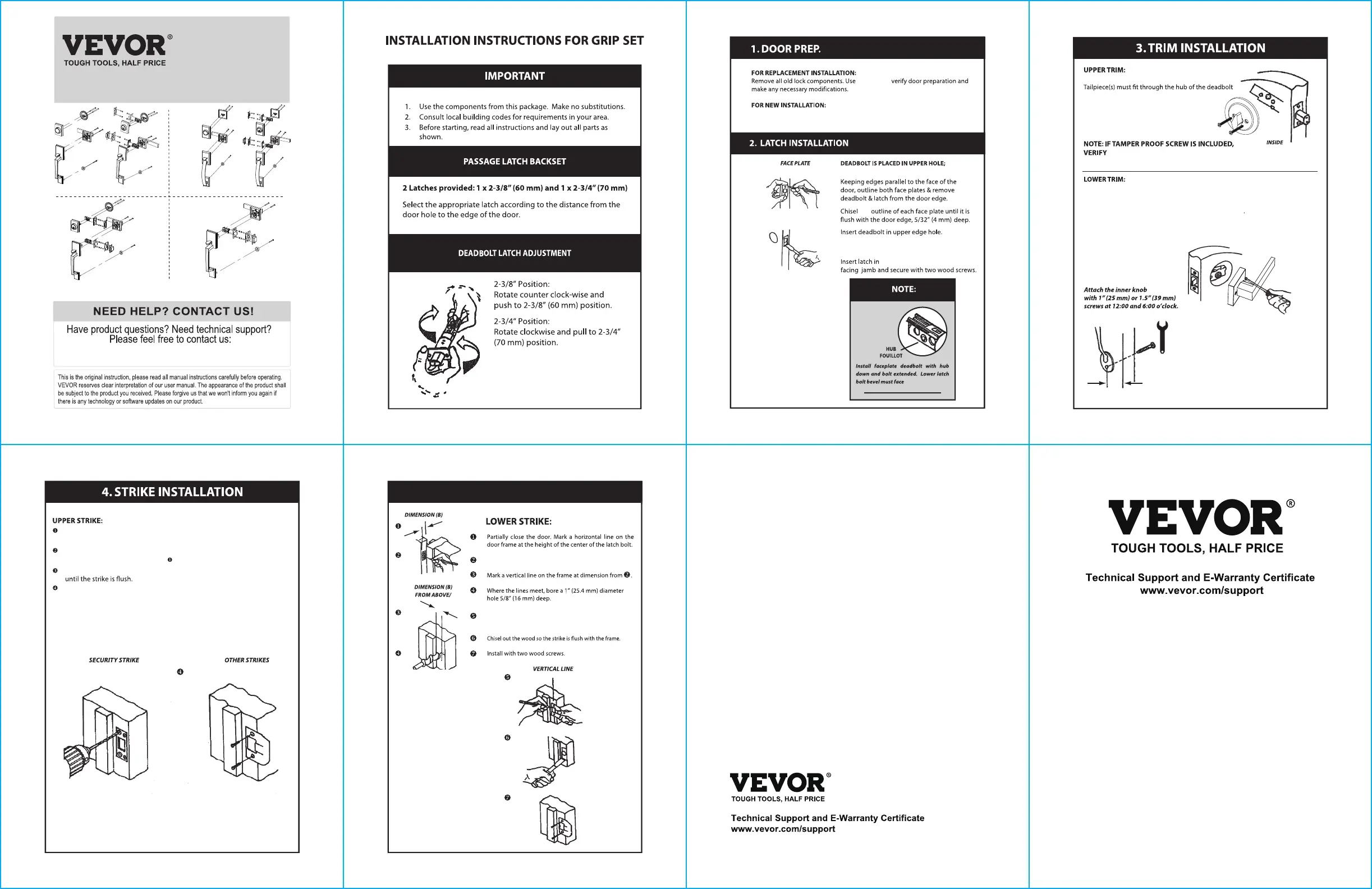

Lever Handleset & Double door handle sets

First, loosen the screw tube and adjust the

distance accordingly. Then, use a wrench to

tighten the screw tube. After this process

can be continued for installation.

BACKSET

the template

Follow the instructions on the template.

Attach the inner trim with a

25''(64mm) machine and

tighten it securely.

Place the handle set against the outside of the door. The spindle should be inserted

through the hub of the latch. Attach the inner knob to handle set posts with either

the 1"(25 mm) or 1.5"(39 mm) trim screws depending on the width of your door.

Smear coloring on the dimple of the bolt. Retract the bolt and close the

door. Extend the bolt, leaving a mark on the door jamb.

Measure from the door face (jamb side) to the center of a latch.

Center strike screw holes on the vertical center line and

outline strike.

Drill a 1"(25.4mm) diameter hole, 1-1/4" (29 mm) deep, in the door frame

centered on the mark made from .

FOR SECURITY STRIKE: Position strike with large holes toward the door

stop. Pre-drill large holes 3" (76 mm) deep. Attach wood screws in

smaller holes.

Attach the bottom of the exterior handle to the door with a wood screw or captive

screw for a metal door at the same backset as a latch.

THE LATCH IS PLACED IN THE LOWER HOLE.

THE PROPER FUNCTION OF THE LOCK

BEFORE INSTALLING TAMPER PROOF SCREW.

The

the

hub must be down,and the bolt must be

extended.Secure with two wood screws.

the lower hole with the bevel

the door jamb.

2010

6050

4030

(for the lock with a lock cylider)

Place the outer trim against the outside of the door.

in vertical position.

(for the lock with a lock cylider)

(The picture is for reference only; please refer to the actual object)

20017-SN-SK / 20017-10B-SK

8822000077--1100BB--SSKK

HH2200001177--SSNN//H20017-10B

20017-SN/20017-10B

MODEL:20017-SN-SK / 20017-10B-SK/82007-10B-SK/20017-SN/

20017-10B/H20017-SN/H20017-10B

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the

major top brands and does not necessarily mean to cover all categories of tools offered by

us. You are kindly reminded to verify carefully when you are placing an order with us if you

are actually saving half in comparison with the top major brands.

Lever Handleset & Double door handle sets

Center strike over hole & trace around strike. Chisel out the door frame
