D921-ET-BLK

Central thickness line of the door

0203

Technical Support and E-Warranty Certificate

www.vevor.com/support

SET UP INFORNATION PAPER PICTURE

1.Product’s information

This product use with new technical design and high quality material.

Producing with abortive process and strict control,all of the products

have the same quality and capability.

2.Product’s capability

This product suitable for room door lock,bathroom lock,passage lock,

room door lock outside use with the key to lock and unlock,inside use

knob to lock and unlock:bathroom lock could use the rigidity flat thing

to open the lock,when people in hurry outside,inside could revolve the

knob to control lock and unlock.

3.Set up method

1)According to the set up information paper picture open a hole in the

right place.suitable door lock thickness between 35mm to 45mm

2)Put the latch to the latch hole,make sure the arrow of latch is up,

latch face to door closing way.

3)Set up the block over,firstly put the block over(with the handle

together) into the lock cover,then use the same method to set up the

block cover,use screw to fastness the block cover,adjust to the

suitable position,try to open the lock with the key,and recover the

knob open the lock,if it is fine to open,fastness all the screw.

4)Set up the buckle case sang buckle board in the right position on the

door.

4.Use manual and safety

1)Unchain the room lock safety:put the key in the lock and revolve 90

with clockwise or put the knob horizontal when you are inside,then open

the lock safety.

2)Chain the room lock safety:put the key in the lock and revolve 90 with

anti-clockwise or put the knob vertical,then close the lock safety.

3)Set up the lock after the oil paint dry,avoid any cankerous things form

the board and the handle,avoid the spindle things touch the board and

handle.

Cut the broken line and stick on the door

Central thickness line of the door

Set up central distance 70mm

Set up central distance 60mm

Central line of the lock

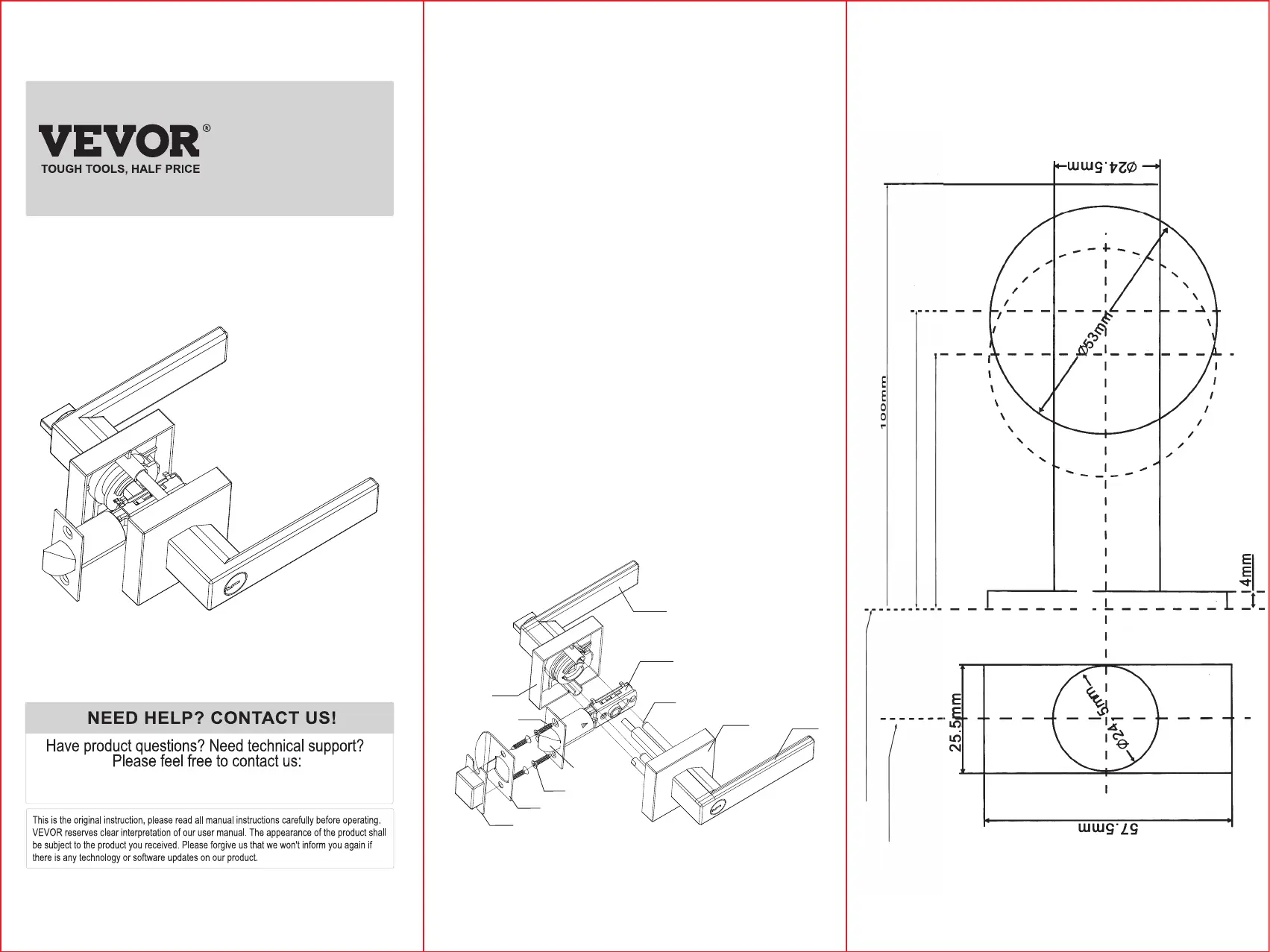

structural draw ing

Inside handle

Inside board

Scaleboard

Scaleboard screw

Lock buckle board

door buckle board

Revo lve lingua

Latch

Square core

Outside boarb

Outside handle
