Table of Contents Rev. 8/9/2019 PRAIL MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 1 4 of
PRAIL Interlocking Crowd Control Barriers
Receiving instructions:
A fter delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: - The end user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Assistance:
If you have questions that are not addressed in these instructions and to order replacement parts,
labels, and accessories, call (260) 665 7586 and ask for the Service and Parts Department. The -
department can also be contacted online at http://www.vestilmfg.com/parts_info.htm.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 or- - Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e- mail: info@vestil.com
Table of Contents
Signal Words………………………………………………………..……………………………………………….. 2
Hazards…………………………………………………….………………………………..………………….……. 2
Barrier Frame Models……………………………………………………………………………………………….. 2
Types of Feet & Foot Installation ………………………………………………………………………………….. 2
Specifications………………………………………………………………………………………………………... 3
Using the Barrier…………….………………………………………………..……………………………...……… 3
Limited Warranty…………………………………………………………………………...…………………….….. 4
**Photo of PRAIL-102-Y
Table of Contents Rev. 8/9/2019 PRAIL MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 2 4 of
Signal Words
T -his manual uses SIGNAL WORDS to direct the reader’s attention to important safety related messages. These
messages describe uses of the product that could result in personal injury or property damage. Each signal word
corresponds to a specific hazard level. The following are definitions of signal words that might appear in this
manual.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE
injury.
Identifies practices likely to result in product/property damage, such as operation that might
d .amage the product
Hazards
Vestil strives to identify all foreseeable hazards associated with the use of its products. However, material handling is
dangerous and no manual can address every risk. Ultimately the most effective way to prevent injury is for the operator
to apply sound judgment whenever using this device.
Serious personal injuries or death could result if this product is used improperly.
• Read and understand the entire manual before assembling and using this barrier.
• This barrier does NOT anchor to the ground and can fall over if pushed or leaned against . DO NOT use it as a
guardrail! These barriers do not provide fall protection. They should only be used to define boundaries.
• DO NOT modify the in any way automatically void the p. 4 and might make barrier . Modifications Limited Warranty on
the product unsafe to use.
• Inspect the product before each use. Confirm that there are no breaks or severely rusted/corroded regions, especially
along the top rail.
• DO NOT use readable and undamaged.this device UNLESS all labeling is
Barrier
frame
Foot
(standard
“curved”
foot
shown)
Barrier frame model
Part no.
PRAIL- -Y 48
23 001 704- - -B
PRAIL- -Y 102
23 001 363- - -B
PRAIL- -G 102
23 001 353- - -B
PRAIL- - -Y 102 HD
(Heavy duty)
23 001 368- - -B
PRAIL- - -G 102 HD
(Heavy duty)
23 001 358- - -B
PRAIL- - 102 SS
23 001 373- - -B
PRAIL- - - 102 HD SS
(Heavy duty)
23 001 374- - -B
W heels
(- W suffix)
Flat
(-F suffix)
Curved
(no suffix)
Foot type
Finishes available
Part no.
Curved
(standard
foot)
Yellow
Galvanized
Stainless steel
23 014 309- -
23 014 306- -
23 014 318- -
Flat
Yellow
Galvanized
23 014 311- -
23 014 308- -
Wheels
Yellow
galvanized
23 014 310- -
23 014 307- -
Types of Feet
Unless wheels or flat feet are ordered, barriers include
(standard) curved feet. Hardware included.
Barrier Models
Barriers are available in 3 finishes: yellow powder coat,
galvanized, and stainless steel. Heavy duty
barriers are
also available in all 3 finishes.
Yellow powder (- coat finish Y suffix)
Galvanized finish (-G suffix)
Stainless steel (- SS suffix)
Foot installation: Insert the feet into the
legs of the barrier frame. Align the bolt
holes in the foot with the holes in the frame.
Insert
1
/
4
”-20 x 2” bolts through the holes.
Secure each bolt with a
1
/
4
” flat washer and
1
/
4
”-20 hex nut.
Bolt
Washer
and nut
Table of Contents Rev. 8/9/2019 PRAIL MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 3 4 of

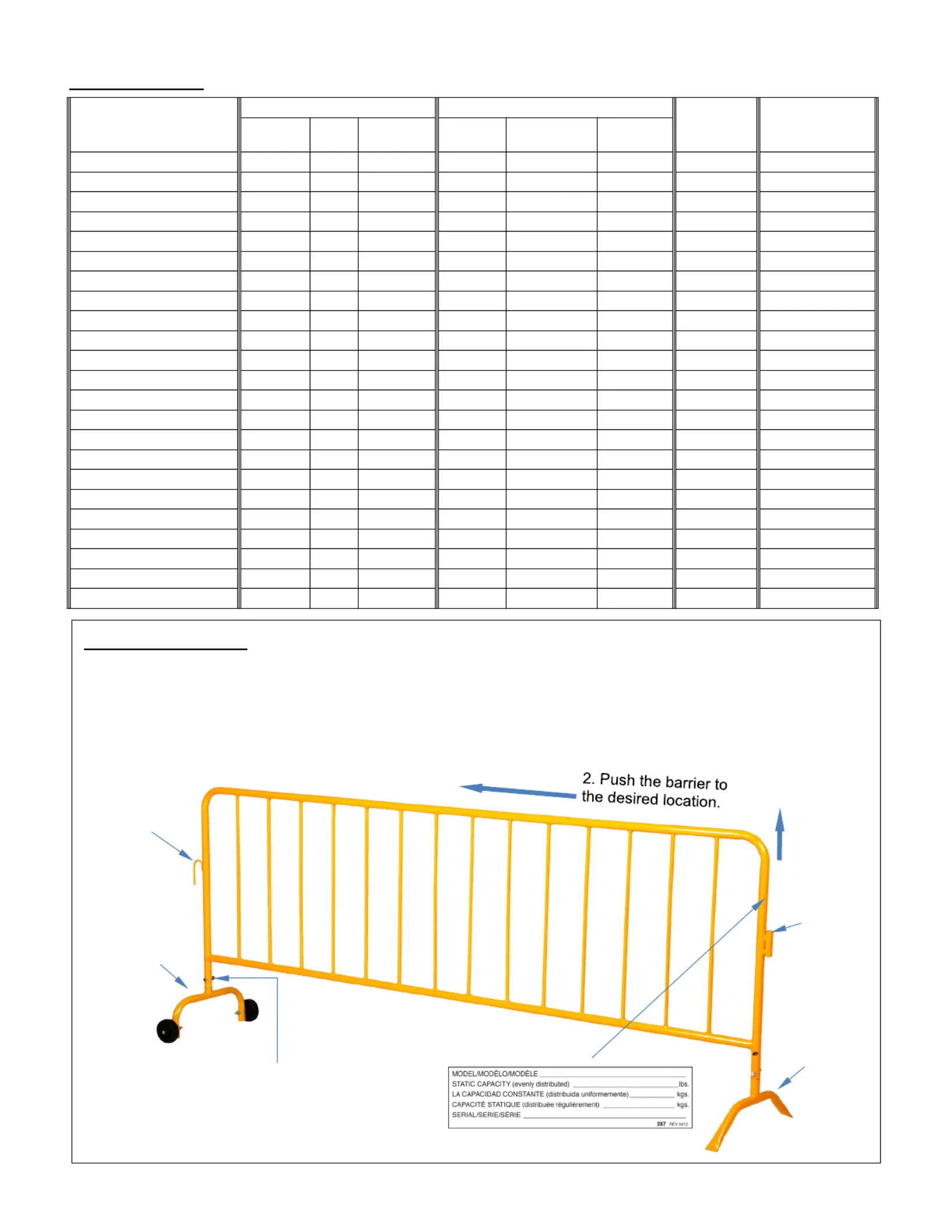

Specifications
Using the Barrier
Carry the barrier to the desired location. If the barrier is equipped with at least one foot with wheels, then it can
be pushed/rolled wherever needed.
Multiple barriers can be connected. Simply lift the end of the barrier where the hook is located and insert the
hook into the receiver of an adjacent barrier.
To facilitate compact storage, feet can be disconnected from the barrier. Remove the hardware and pull the
foot out of barrier. on p. 2. See Foot installation
Receiver
Hook
1. Lift this
end.
Foot with
wheels
Standard,
curved
foot
Unfasten hardware
and pull foot out of
barrier
Model
Foot type & quantity
Barrier finish
Barrier
duty
rating
Net weight
Curved Flat Wheels Yellow Galvanized
Stainless
steel
PRAIL- -Y 48
2
X
Standard
38 lb. (17.3kg)
PRAIL- -G 102
2
X
Standard
85 lb. (38.6kg)
PRAIL- -G- 102 FF
2
X
Standard
85 lb. (38.6kg)
PRAIL- -G-W 102
1
1
X
Standard
85 lb. (38.6kg)
PRAIL- -G-102 WF
1
1
X
Standard
85 lb. (38.6kg)
PRAIL- -G- 102 WW
2
X
Standard
85 lb. (38.6kg)
PRAIL- - -G 102 HD
2
X
Heavy
105 lb. (47.7kg)
PRAIL- - -G-102 HD FF
2
X
Heavy
105 lb. (47.7kg)
PRAIL- - -G-W102 HD
1
1
X
Heavy
105 lb. (47.7kg)
PRAIL- - -G-102 HD WF
1
1
X
Heavy
105 lb. (47.7kg)
PRAIL- - -G-102 HD WW
2
X
Heavy
105 lb. (47.7kg)
PRAIL- -102 SS
2
X
Standard
85 lb. (38.6kg)
PRAIL- - -102 HD SS
2
X
Heavy
105 lb. (47.7kg)
PRAIL- - -Y102 HD
2
X
Heavy
105 lb. (47.7kg)
PRAIL- - -Y-102 HD FF
2
X
Heavy
105 lb. (47.7kg)
PRAIL- - -Y-W102 HD
1
1
X
Heavy
105 lb. (47.7kg)
PRAIL- - -Y-102 HD WF
1
1
X
Heavy
105 lb. (47.7kg)
PRAIL- - -Y-102 HD WW
2
X
Heavy
105 lb. (47.7kg)
PRAIL- -Y102
2
X
Standard
85 lb. (38.6kg)
PRAIL- -Y-102 FF
2
X
Standard
85 lb. (38.6kg)
PRAIL- -Y-W102
1
1
X
Standard
85 lb. (38.6kg)
PRAIL- -Y-102 WF
1
1
X
Standard
85 lb. (38.6kg)
PRAIL- -Y-102 WW
2
X
Standard
85 lb. (38.6kg)
Label #287- PR
