Table of Contents Rev. 5/15/2019 CARPET- 45 MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 1 5 of
CARPET- C T 45 ARPET RUCK
I
NSTRUCTION MANUAL
Receiving instructions
A fter delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of
lading. If the product is undamaged, discard the packaging.
Replacement Parts and Technical Service
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can also be
contacted online at http://www.vestilmfg.com/parts_info.htm
.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply with
laws, regulations, codes, and mandatory standards applied where the product is used.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665 7586 - - -or Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e- mail: sales@vestil.com
Table of Contents
S Wignal ords……………………………………………………………………………………………………………………………….…………………………………………. 2
Specifications………………….............................................…………………………………………………………………………………………………………… 2
Hazards……………………….………………………………………………………………………………………………………...................................................... 2
Exploded View and Bill of Materials…………………………………….……………………..………………………………………………………………………….. 3
Assembly……………………………………………………………………………………………………………………………………………………………………………….. 3
Using the Carpet Truck…………………………………………………………………………………………………………………………………………………………… 4
Record of Satisfactory Condition……………………………………………………………………………………………………………………………………………. 4
Inspections & Maintenance…………………………………………………………………………………………………………………………………………………… 4
Labeling Diagram…………………………………………………………………………………………………………………………………………………………………… 4
Limited Warranty……………………………………………………………………………………………………………………………………………………………………. 5
Table of Contents Rev. 5/15/2019 CARPET- 45 MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 2 5 of

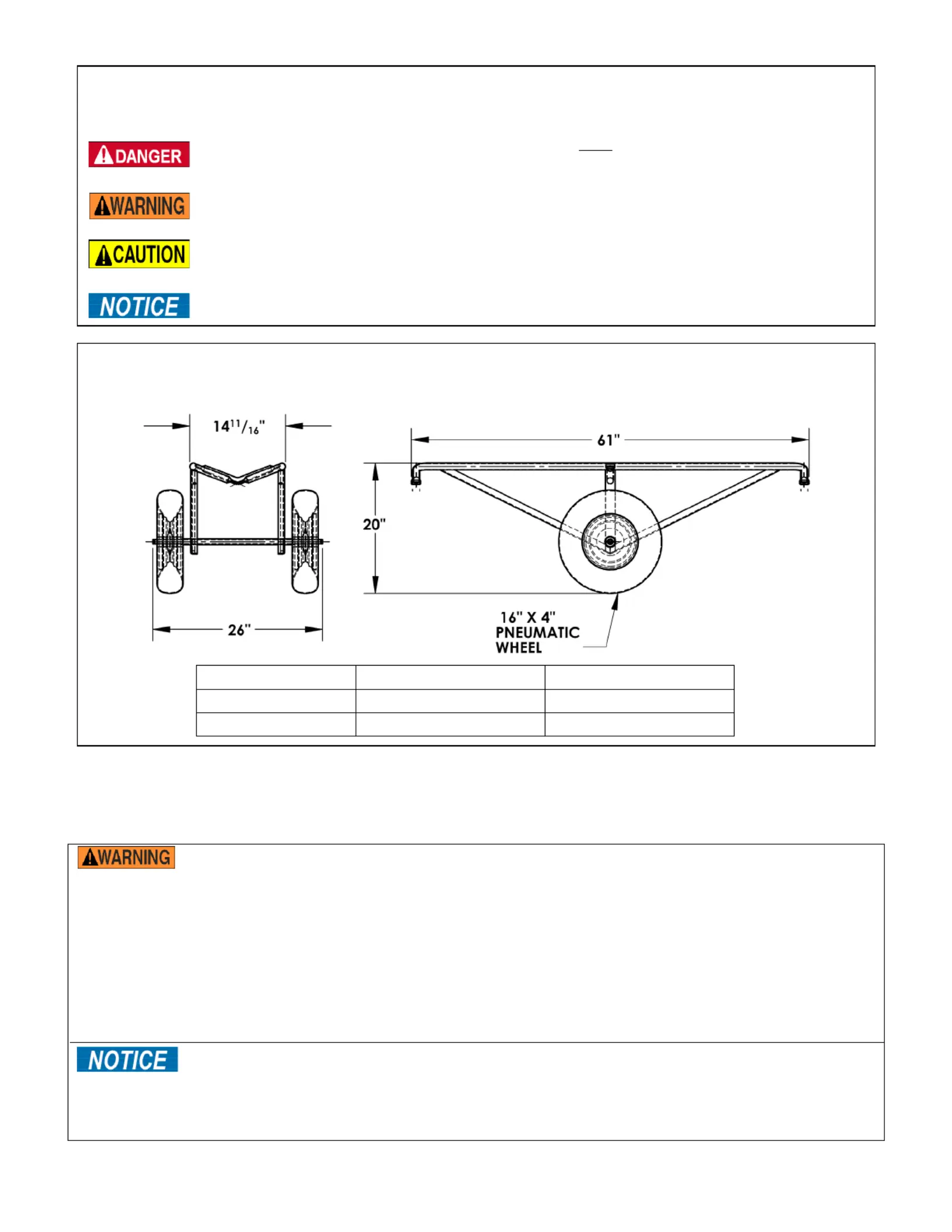

SIGNAL WORDS
This manual classifies personal injury risks and situations that might cause property damage with signal words. Signal
words indicate the seriousness of injuries that might result if a particular act does, or does not, occur.
Identifies a hazardous situation which, if not avoided, result in DEATH or SERIOUS INJURY. WILL
Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE
injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product.
SPECIFICATIONS
Dimensions, net weight, and capacity figures are provided in the following diagrams and table.
Model
Net Weight
Capacity
CARPET- 45
34 lb. (15.5kg)
500 lb. (227.3kg)
CARPET- - 45 FF
44 lb. (20kg)
500 lb. (227.3kg)
HAZARDS
Vestil strives to identify all foreseeable hazards associated with the use of its products. However, no manual can address
every possible risk. The most effective means for avoiding injury is to read all of the instructions prior to putting the dumper
into service and to apply sound judgment whenever using this device.
Read and understand the entire manual before assembling, using or servicing the carpet truck.
Improper or careless use of this product could result in death or serious personal injury.
• DO NOT modify the product in any way UNLESS you first obtain written approval from Vestil. Unapproved
modifications automatically void the Limited Warranty . and might make the product unsafe to use
• DO NOT apply loads to the truck that exceed its capacity. C enter carpet rolls on the truck, i.e. above the axle.
• DO NOT stand, sit or ride on the truck, .
• Do not traverse uneven ground when the truck is loaded unless you can easily control it. Control the truck from
the uphill side while moving up or down slopes.
• Ask someone to help you if you cannot easily control the cart when it is loaded.
Proper use, maintenance, and storage are essential for this product to function properly.
o Inspect and maintain the unit as directed in Inspections & Maintenance.
o Units equipped with pneumatic tires: Check tire inflation. Air pressure should equal the recommended inflation
pressure that appears on the sidewalls of the tires.
Table of Contents Rev. 5/15/2019 CARPET- 45 MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 3 5 of

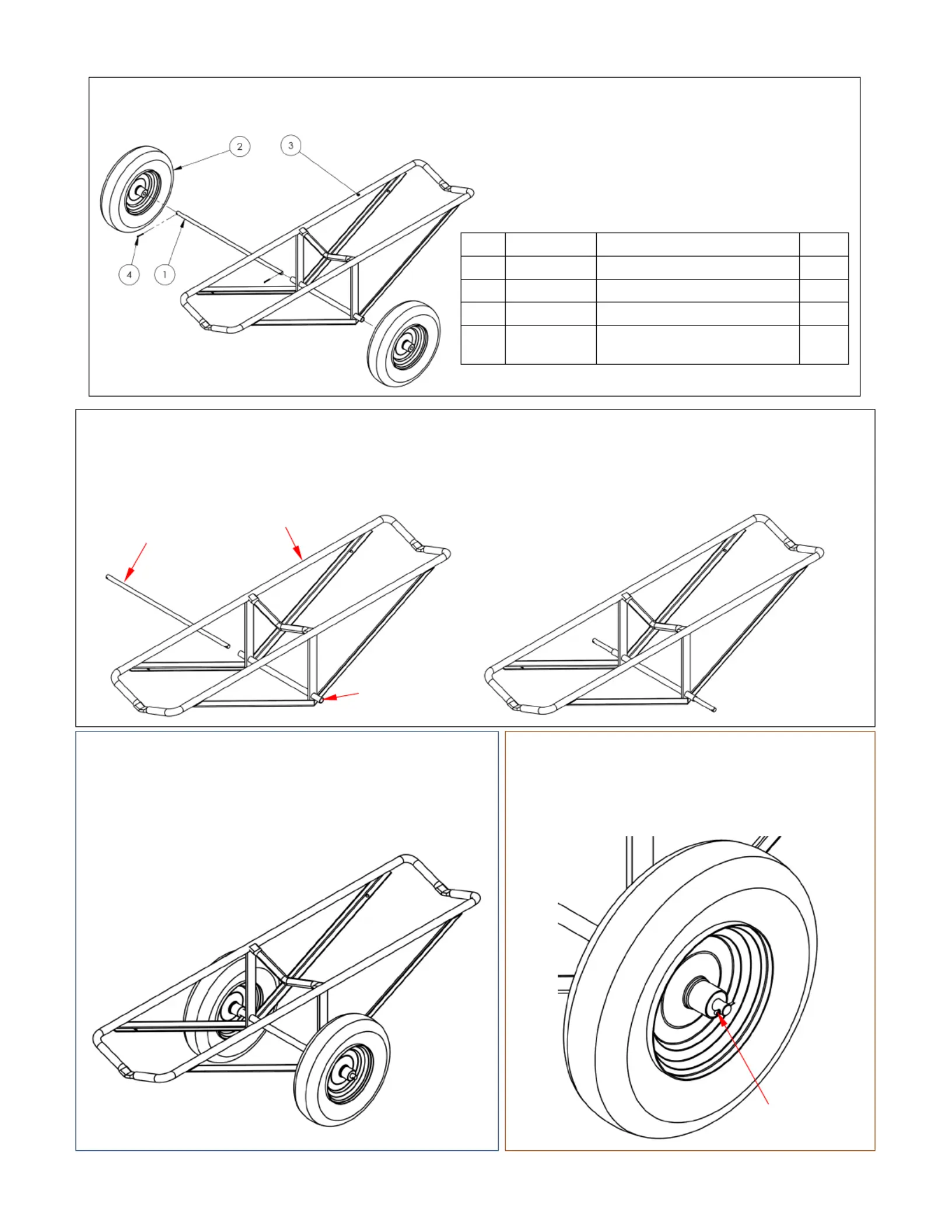

EXPLODED VIEW AND BILL OF MATERIALS
ASSEMBLY
1) Insert the axle into the axle receiver. The axle is longer than the receiver and will stick out of both sides of
the receiver.
2) Slide a wheel onto each end of the axle. Make sure
that the wheels are oriented with the valve stems facing
outwards, i.e. away from the cart.
NOTE: Foam filled wheels (CART- –45 FF) do not require
inflation.
Item
Part no.
Description
Qty.
1 - - 33 112 036 Axle,
5
/
8
” x 26” 1
2 - - 2 16 132 126 Pneumatic tire
3 - - 1 33 514 129 Weldment, frame
4 65077
Cotter pin, zinc-plated,
1
/
8
” x
1
1
/
4
”
2
3) Press a cotter pin through the pin hole at
each end of the axle. Then, bend the arms of the
cotter pins around the in opposite directions
axle.
Axle
Frame
Axle
receiver
Cotter pin
