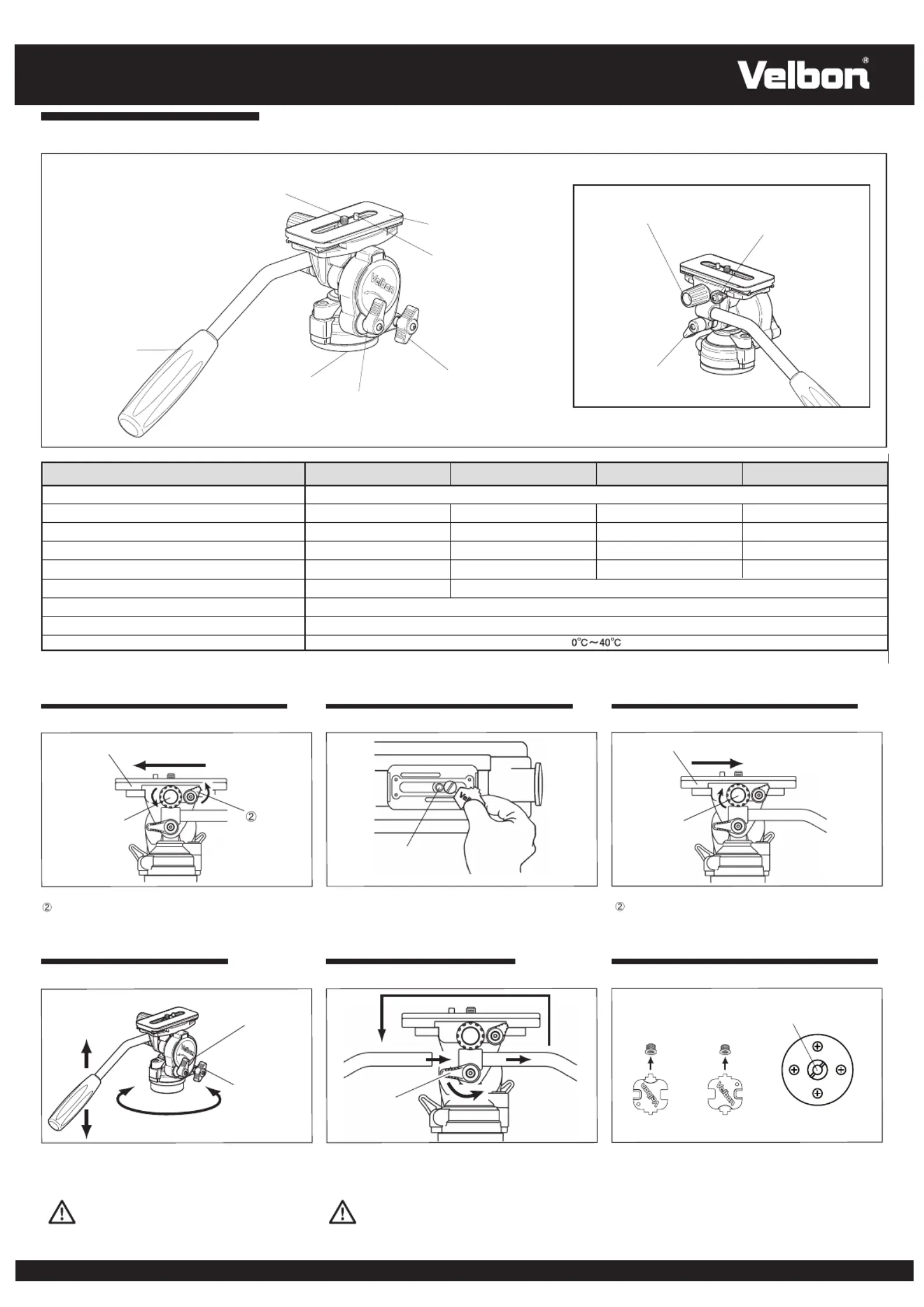

Operating Manual FHD-41QN/51QN/61QN/71QN

②

①

UNC1/4UNC3/8

※

①

③

①

1-1.How to attach the Camera

2.How to use the Head 3.4-Positioning Handle

4.MF Screw(FHD-51QN/61QN/71QN)

1-2.How to attach the Camera 1-3.How to attach the Camera

Turn to Anti-clockwise direction to unlock.

While raising up the Knob for releasing the Shoe

Sliding out the Quick Shoe

Loosen the Tilting Stopper, and allow you to move the

Camera Up and Down. Loosing the Panning Stopper,

and allow you to move the Camera horizontal. Lock the

stoppers when the angle has been determined.

By unlocking the Panning Handle Locking Lever, the Handle

can be pulled out then install from the opposite side for

changing the angle of the Handle. There are 4 positioning

choices on this handle.

Since the factory assembled, 1/4 inch Screw is installed.

If changing to the 3/8 inch screw, please detach the MF

Screw by the Screw driver. Locking is slightly tighten with

the glue at the beginning.

Use Screw Driver supplied in the package to lock Quick

Shoe to the bottom of the Camera. Video Boss should go

into the hole of Video Boss of the Camera. Video Boss is

retractable. So Cameras without hole of Video Boss can

accept this Quick Shoe.

Sliding into the Head

Locking by turning to the clockwise direction.

Make sure the Head is firmly fixed on the

Tripod before moving the Head.

Keep out from Locking the Panning Handle Locking

Lever tighten while detaching the Handle from the

Head. It may cause damage of the locking system

inside the Head.

Video Boss

Tilting Stopper

(Up-Down)

Panning Stopper

(Horizontal) Handle

Locking Lever

Detach and

re-install

from the

opposite.

The Screw driver which is

included in the package,

can be used for either

3/8 inch or 1/4 inch as below.

MF Screw

Reverse of the Head.

Individual Part Name

Thank you very much for choosing Velbon photographic accessory. Before using, please read operating manual carefully.

Locking Knob for

the Quick Shoe Knob for releasing

the Shoe

Panning Handle

Locking Lever

*Specifications are subject to change without notice

Camera Screw

Video boss

Quick Shoe (QB-F51)

Tilting Stopper

Panning Stopper

Panning Handle

MF Screw

(1/4 inch or 3/8 inch)

Ideal loads: Velbon mentions physically ideal weight in use.Tripod legs and heads remain actually even better capability to support heavier equipments on the top.

Maximum capability of leads may change depending on the condition and on the shape of the objects. References are mentioned just under the normal condition without strong

wind, not to put too long conversion lens etc.

Specifications

Camera Plate size

Height

Diameter of Pedestal

Weight

Ideal loads to support

Screw size to connect tripod

Quick-Release Plate

Movable distance of the sliding Camera Screw

Suitable Temperature

78mm(3.07in.)
