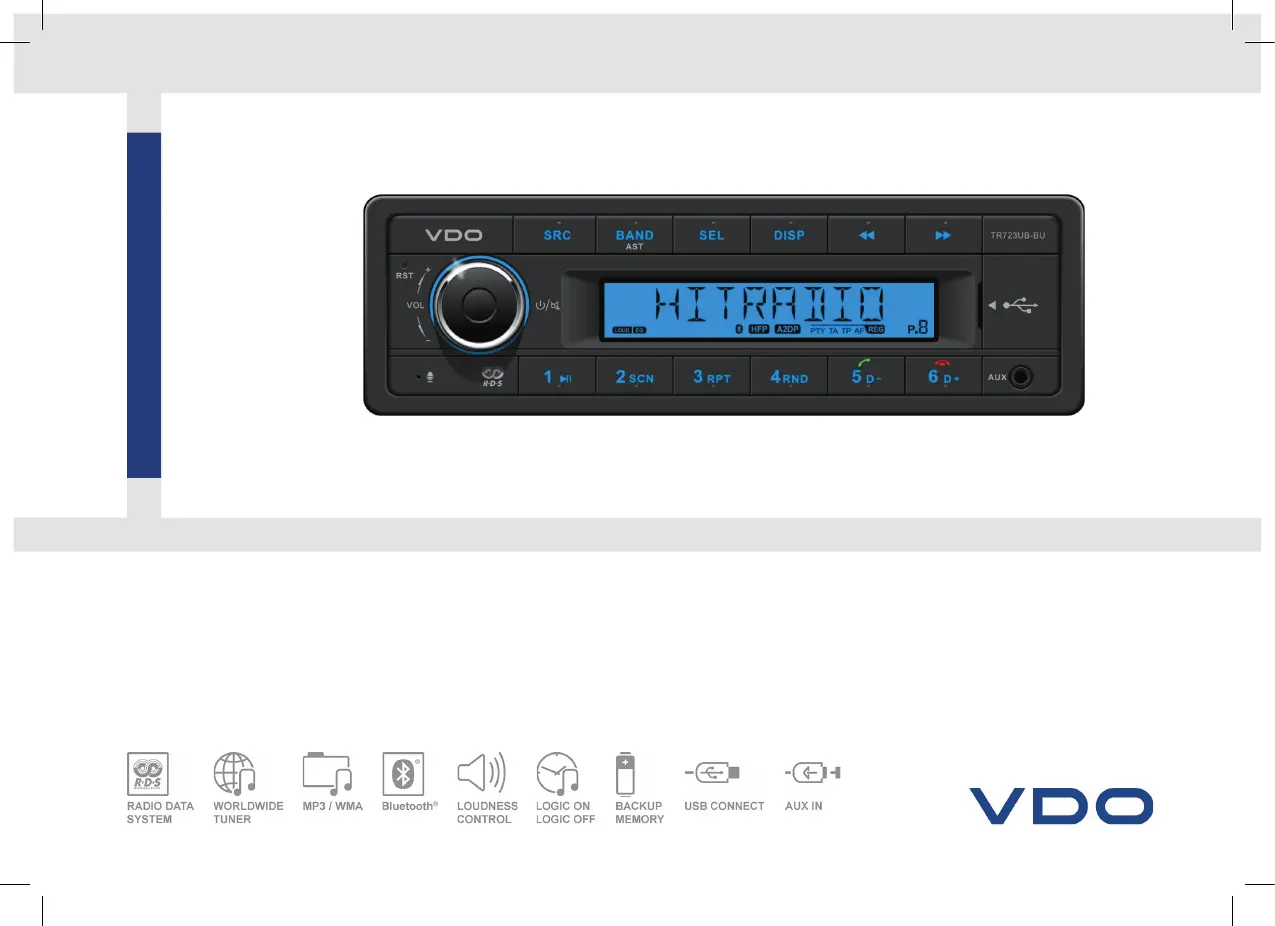

Pagina 1/20

www.vdo.com

TR723UB-BU

RADIO / USB MP3 / WMA / Bluetooth® 24V

OWNER’S MANUAL

VDO_TR723UB-BU_EN.indd 1 29/04/15 12:17

TR723UB-BU RADIO / USB MP3 / WMA / Bluetooth

® 24V

Safety Information

nSafety Information

Thank you for purchasing this product, please

read the manual carefully before operating, and

reserve it for future reference.

iPRECAUTIONS

• Only in a 24-volt DC negative-ground

electrical system.

• Disconnect the vehicle’s negative battery

terminal while mounting and connecting the

unit.

• When replacing the fuse, be sure to use one

with an identical amperage rating.

• Using a fuse with a higher amperage rating

may cause serious damage to the unit.

• Make sure that pins or other foreign objects

do not get inside the unit, they may cause

malfunctions, or create safety hazards such

as electrical shock.

• If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

• Keep the volume at a level at which you can

hear outside warning sounds (horns sirens,

etc.).

iCAUTION

• DO NOT open covers and do not repair by

yourself. Ask the dealer or an experienced

technician for help.

iBEFORE OPERATION

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operation.

Note:

1 According to models with different

wiring harness to connect the

denition of the specic content,

please refer to the model label.

2 Specications and the design are

subject to change without notice due

to improvements in technology.

Specications

nSpecications

iGENERAL

Power supply: 24 V DC (18V-32V)

Maximum power output: 4 x 15 W

Suitable speaker impedance: 4 ohm

Fuse spec: 10 A

Weight: 0.9 kg

Dimensions (WxDxH): 188x131x58.5 mm

iFREQUENCY TABLE

NORTH

AFRICA

JAPAN

531- 1602KHz

153 - 252KHz

VDO_TR723UB-BU_EN.indd 2 29/04/15 12:17

Panel Controls

nPanel Controls

(1) Microphone

(2) Power on/off

Mute,

when on, hold it more than 2 seconds to

power off.

Rotate the VOL knob to adjust volume.

(3) Source

Radio

USB (when USB inserted)

AUX IN

A2DP

Hold it more than 2 seconds to select PTY

mode.

(4) Band switch:

FM1 -> FM2 -> FM3 -> MW1 -> MW2 -> LW

Hold it Automatically search station and store

the signal strongly station to 1-6 Preset.

(5) Press SEL and rotate VOL knob to select EQ

preset mode:

EQ OFF-POP-CLASSIC-ROCK-JAZZ

Press to enter, when selecting the PTY mode

Press SEL and rotate VOL knob to ajust the

time, when on the CLOCK mode.

(6) Display system clock

Hold it to set clock

Radio mode:

Display PTY info/system clock/current

channel

MP3 mode:

Turn and turn about folder name/le name/

ID3 TAG/Clock.

(7) Radio mode:

Auto search the station from high to low

MP3 mode:

Select the previous track

(8) Radio mode:

Auto search the station from low to high

MP3 mode:

Select the next track

(9) USB slot

(10) MP3 folder ahead/Hang up

(11) MP3 folder back/Contact mode/

Dial/Call transfer

(12) MP3 random play

(13) MP3 repeat play

(14) Program intro play (10 sec.)

(15) Play/pause

(10-15)

1-6 radio preset

Press to tune in a preset station.

Hold for more than 2 seconds to store current

station.

VDO_TR723UB-BU_EN.indd 3 29/04/15 12:17

Product specificaties

Merk:	VDO
Categorie:	Autoradio
Model:	TR723UB-BU
Kleur van het product:	Zwart
Ingebouwd display:	Ja
Breedte:	188 mm
Diepte:	58.5 mm
Hoogte:	130 mm
Bluetooth:	Ja
Touchscreen:	Nee
Bluetooth-profielen:	A2DP, AVRCP, HFP, HSP
Ondersteund audioformaat:	MP3, WMA
USB-poort:	Ja
Geïntegreerde geheugenkaartlezer:	Nee
LED backlight:	Ja
Aantal USB-aansluitingen:	1
Ingebouwde microfoon:	Ja
Equalizer-instellingen:	Ja
Uitgangsvermogen:	60 W
Audio-uitgangskanalen:	4.0 kanalen
MP3 afspelen:	Ja
AUX ingang:	Ja
Optische drive type:	Nee
Ondersteunde frequentiebanden:	FM, LW, MW
Inclusief RDS tuner:	Ja
USB direct afspelen:	Ja
CD-R afspelen:	Nee
Te gebruiken met een iPod:	Nee
Wifi:	Nee
Maximaal vermogen per kanaal:	15 W
Handsfree bellen:	Ja
Positie USB-poort:	Voorkant
AUX-invoerpoorten:	1
