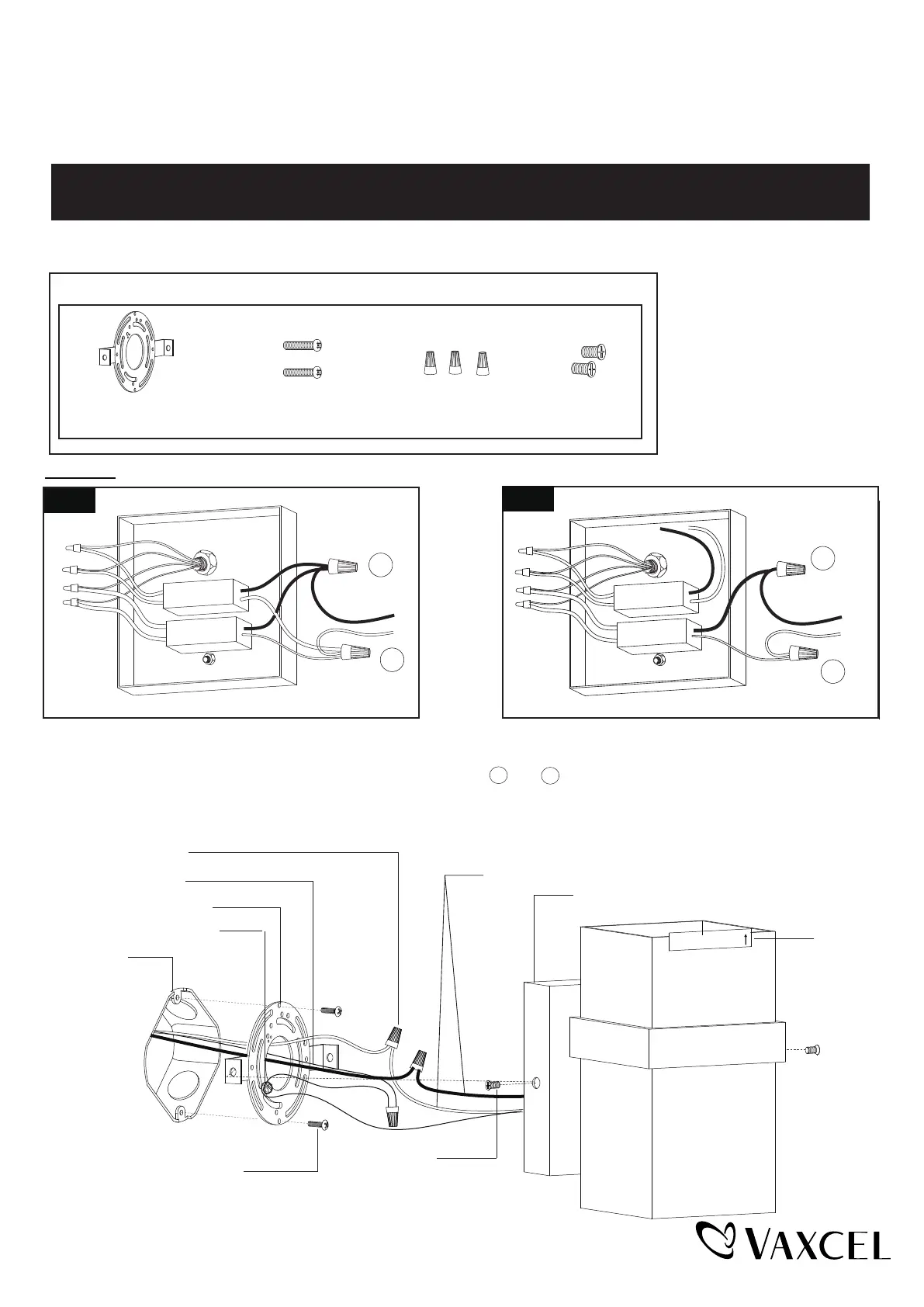

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

T0397 /T0398 / T0400 / T0401

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Set screw (D)

Mounting Screw (B)

Wire Connector (C)

Mounting Plate Unit (A)

NOTES:

Upper light and lower light options：

1. Option 1: Upper & Lower light accent, the original setting of wall light is the upper and lower light accent.

2. Option 2: Lower light accent only, loosen the wire connectors ( 1 and 2 ). (See Fig. 1) Do not discard the wire

connectors, screw the wire connectors onto the wire from lower light of driver. (See Fig. 2) Wrap all wire connectors

with electrical tape, then tuck all wire connectors into the back plate.

Fig. 1

1

2

1

2

Upper Light

Fig. 2

Lower Light

House Ground Wire

Green Ground Screw (E)

Wire Connector (C)

Backplate

Mounting Screw (B)

Mounting Plate Unit (A)

Outlet Box

Fixture Wire

Set Screw (D)

THIS SIDE UP

label

Page 1 / 2

231013
