Bulb type A Max. 60W
(not include)

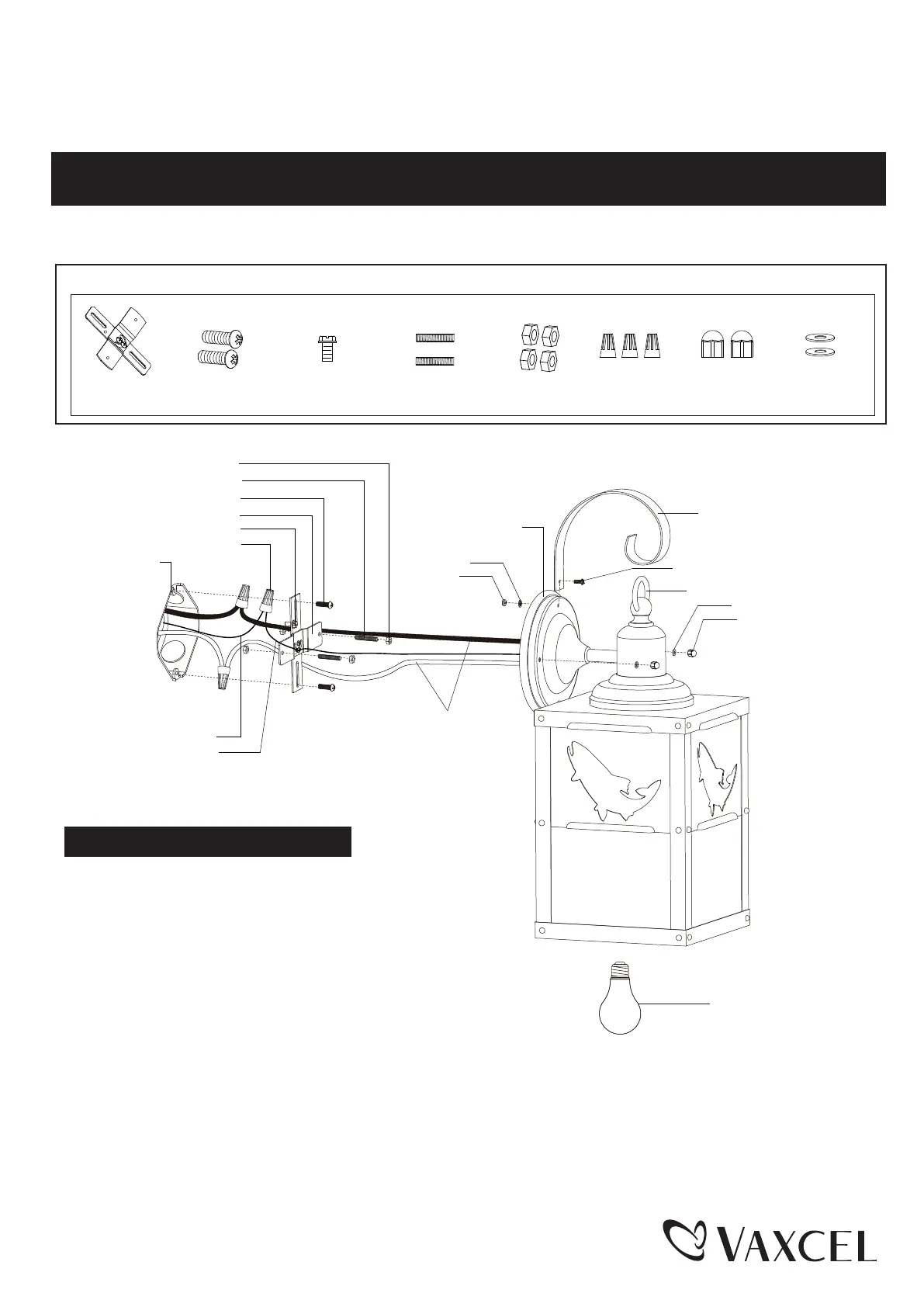

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0331 & T0332
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
170803
Turn off the power at fuse or circuit box.
Installation Steps
Rubber Pad (H)
Cross Bar (A)
Green Grounding Screw (C)
Outlet Box
Wire Nut (F)
Headless Screw (D)
Cross Bar (A)
Mounting Screw (B)
Lock Nut
(E)
House Grounding Wire
Fixture Grounding Wire
Back Plate
Set Screw
Loop
Curved Arm
Lock Nut-2
Washer
Rubber Pad (H)
Ball Nut(G)
Fixture Wire
1. Thread two headless screws through the cross bar, and then
secure them with four lock nuts (two on each side of the cross
bar). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up
horizontallyto make the fixture level.
2. Attach cross bar to the outlet box using two mounting screws.
3. Unscrew the set screw, lock nut-2 and washer.
4. Hook the curved arm to the loop, and then attach the curved arm to the back plate by using the set screw, washer
and lock nut-2.
5. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green
grounding screw, and then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
Mounting Screw (B)
Wire Nut (F)
Ball Nut (G)
Lock Nut (E)
Headless Screw(D)
Green Grounding
Screw (C)
