ASSEMBLY AND INSTALLATION

INSTRUCTIONS

161008

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0316

Lock Nut (E)

Mounting Screw (B)

Wire Nut (F)

Ball Nut (G)Rubber Pad (H)

Cross Bar (A)

Green Grounding

Screw (C)

Headless

Screw (D)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

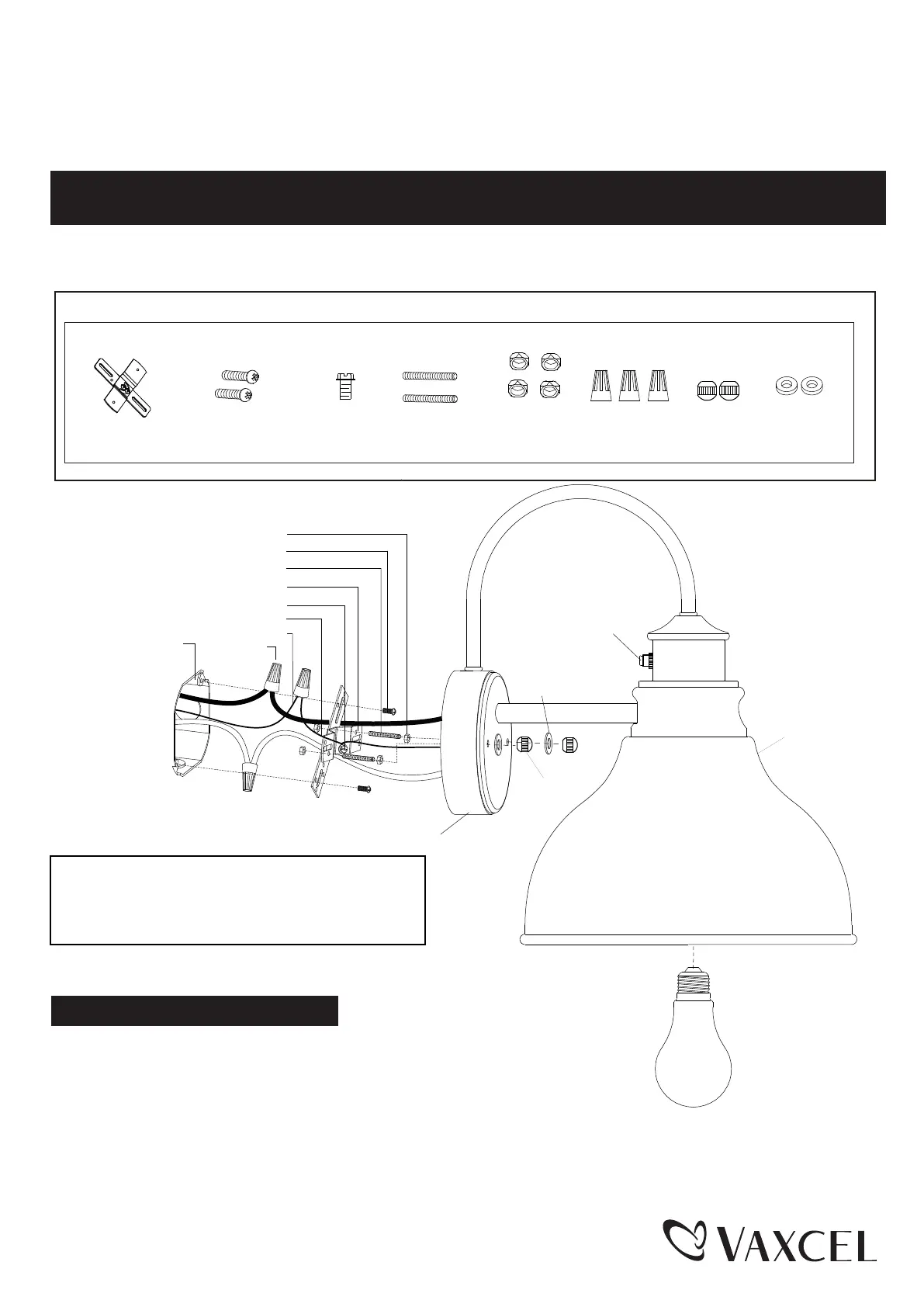

Hardware Package (included):

Green Grounding Screw (C)

Outlet Box

Wire Nut (F)

Headless Screw (D)

Cross Bar (A)

Lock Nut

(E)

Back Plate

Ball Nut (G)

Fixture Body

Rubber Pad (H)

Photocell

House Grounding Wire

Fixture Grounding Wire

Mounting Screw (B)

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.

Turn off the power at fuse or circuit box

Installation Steps

Bulb Type A

Max. 100W

(not included)

1.

Thread two headless screws through the cross bar, and then secure

them with two lock nuts. Adjust the length of the headless screws

if necessary.

Note: Make sure that the headless screws are lined up horizontally to

make the fixture level.

2. Attach the cross bar to the outlet box by using two mounting screws.
