ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
OW33553

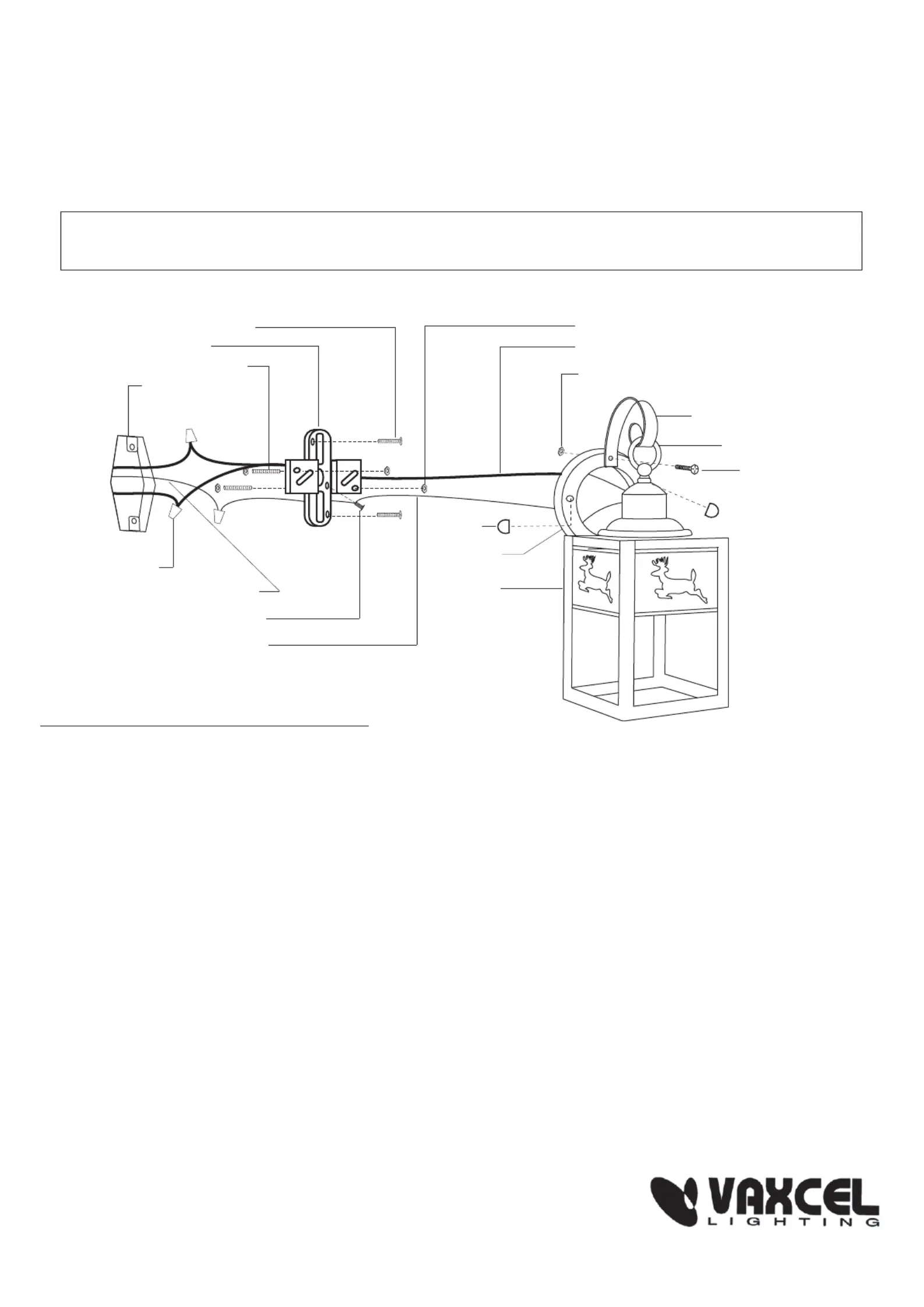

Installation Steps:
Bolt Nut
Fixture
Mounting Screw
Headless Screw
Fixture Wire
Lock Nut-1
Lock Nut-2
Cross Bar
House Grounding Wire
Green Grounding Screw
Fixture Grounding Wire
Wire Nut
Wall Box
Back Plate
Set Screw
Loop
Iron
1. Thread two headless screws to the cross bar, and then secure with four lock nuts-1.
(You can adjust the length of the screws if necessary.)
2. Attach the cross bar to the wall box by using two mounting screws.
3. Hook the iron to the loop, and then attach the iron to the back plate by using the
set screw and the lock nut-2.
4. Make wire connections with wire nuts:
---The black wire from xture to the black wire from power source.
---The white wire from xture to the white wire from power source.
---Attach the xture grounding wire to the cross bar with the green grounding screw.
Then connect it to the house grounding wire with the wire nut.
Carefully tuck wires back into the wall box.
5. Attach the back plate to the cross bar by inserting the headless screws, and then
secure with the bolt nuts.
6. Install a bulb. (Please do not exceed the maximum capacity that is
recommended on the package.)
7. Turn on the power at fuse or circuit box.
