Back Plate

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0267

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

160510

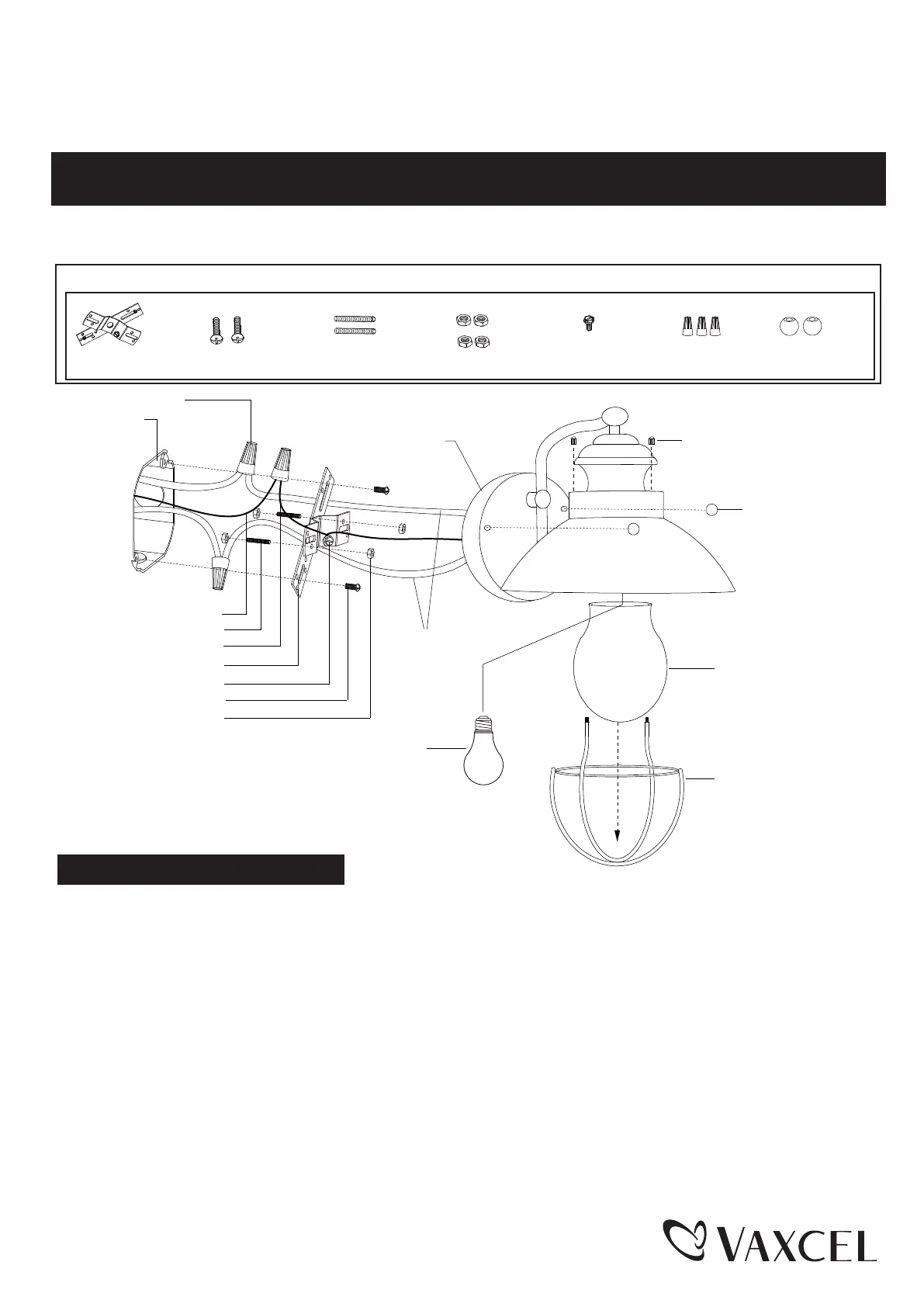

Installation Steps

Green Grounding Screw (E)

Outlet Box

Wire Nut (F)

Headless Screw (C)

Cross Bar (A)

Mounting Screw (B)

Lock Nut (D)

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

Mounting Screw (B)

Green Grounding

Screw (E)

Wire Nut (F)

Lock Nut (D)

Cross Bar(A)

Headless Screw (C)

Bulb Type A Max.100W

(not included)

Metal Cover

Glass Shade

Ball Nut

Bolt Nut (G)

1. Thread two headless screws through the cross bar, and then secure them with four lock nuts (two on each side of

the cross bar). Adjust the length of the headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

2. Attach cross bar to outlet box using two mounting screws.

3. Install a bulb (not included). Check relamping label at socket area or packaging for maximum allowed wattage.

4. Place the glass shade into the metal cover carefully, and then attach the metal cover to the fixture by using two ball

nuts.

5. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green grounding

screw, and then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

Bolt Nut (G)
