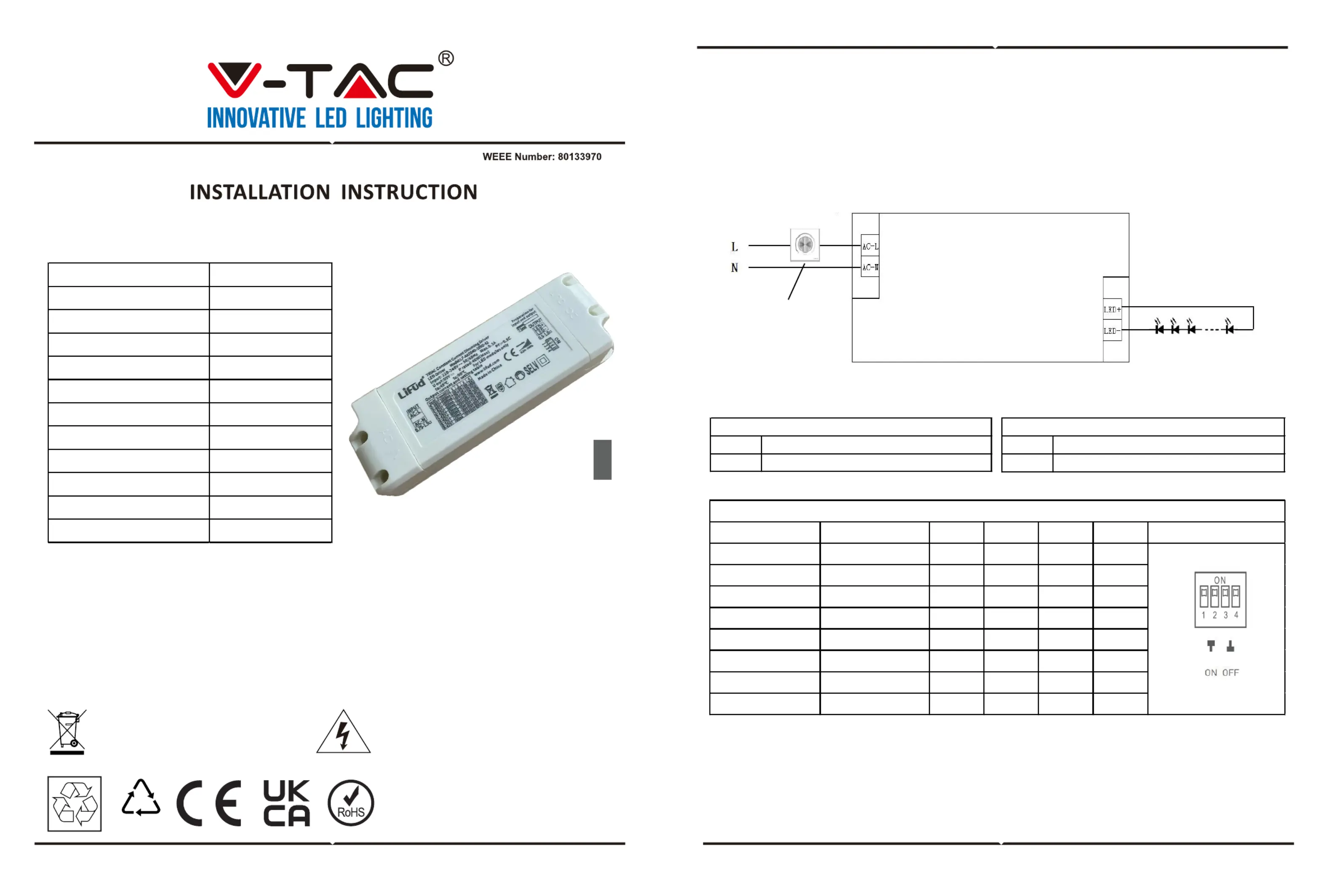

DIMMABLE DRIVER

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these

instructions carefully before starting the installation and keep this manual handy for future reference.

If you have any another query, please contact our dealer or local vendor from whom you have

purchased the product. They are trained and ready to serve you at the best. The warranty is valid for

5 years from the date of purchase. The warranty does not apply to damage caused by incorrect

installation or abnormal wear and tear. The company gives no warranty against damage to any

surface due to incorrect removal and installation of the product. The products are suitable for 10-12

Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is

warranted for manufacturing defects only.

Caution, risk of electric shock.

This marking indicates that this

product should not be disposed

of with other household wastes.

TECHNICAL DATA

WIRING DIAGRAM OF TRIAC DIMMING OPERATION:

DIMMING OPERATION:

PRODUCT TERMINALS

OUTPUT CURRENT ADJUSTABLE VIA A BUILT-IN DIP SWITCH

WARNING:

5

YEARS

WARRANTY

*

1. Please make sure to turn off the power before starting the installation.

2. Connect the AC input source to the power supply and the AC plug (not in the scope of delivery

included). AC plugs can be bought in any hardware store.

3. Wire the DC output of the power supply unit to the LED Panel.

4. Plug the power adapter into the socket to illuminate the whole system.

INSTALLATION:

1) Please make sure to turn off the power before starting the installation.

2) Observe the connection diagram provided before connecting to the power supply

3) Installation should be done by a qualified electrician.

4) Disconnect the power supply when wiring or soldering the LED.

5) Please ensure to check the DC output of the power supply matches with the DC Input of the Panel.

6) For LED Modules only

7) For Infoor use only

AC-LInput terminal of AC live wire

AC-NInput terminal of AC neutral wire

INPUT

Output VoltageOutput Current1234DIP Switch Diagram

9-38Vdc1050mAONONONON

9-40Vdc1000mAONONONOFF

9-42Vdc950mAOFFONONON

9-42Vdc900mAOFFONONOFF

9-42Vdc850mAOFFOFFONON

9-42Vdc800mAOFFOFFONOFF

9-42Vdc750mAOFFOFFOFFON

9-42Vdc700mAOFFOFFOFFOFF

CURRENT ADJUSTMENT TABLE

LED+Positive electrode output of LED driver

LED-Negative electrode output of LED driver

OUTPUT

20

PAP

SKU11410

MAX INPUT CURRENTMAX 0.3A

INPUT VOLTAGE

AC:220-240V, 50/60Hz

RATED POWER40W(MAX)

PF>0.9

AMBIENT TEMPERATURE (ta)45°C

CRITICAL TEMPERATURE (tc)90°C

OUTPUT POWERDC:9-38V

INPUT STANDBY MODE0.75-1.5mm²

OUTPUT STANDBY MODE

0.5-1.0mm²

STANDBY POWER (Psb)Psb<0.5W

EFFICIENCY IN FULL-LOAD>83%

Triac/ELV Dimmer

0~100% Dimming

Input

Output

Neutral - black or blue

Live - brown or red

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT

SUPPORT@VTACEXPORTS.COM V-TAC HOUSE, KELPATRICK ROAD, SLOUGH, BERKSHIRE, SL1 6BW, UK.

NOTE: The dimmable driver cannot no-load
