2D Presentation

Barcode Scanner

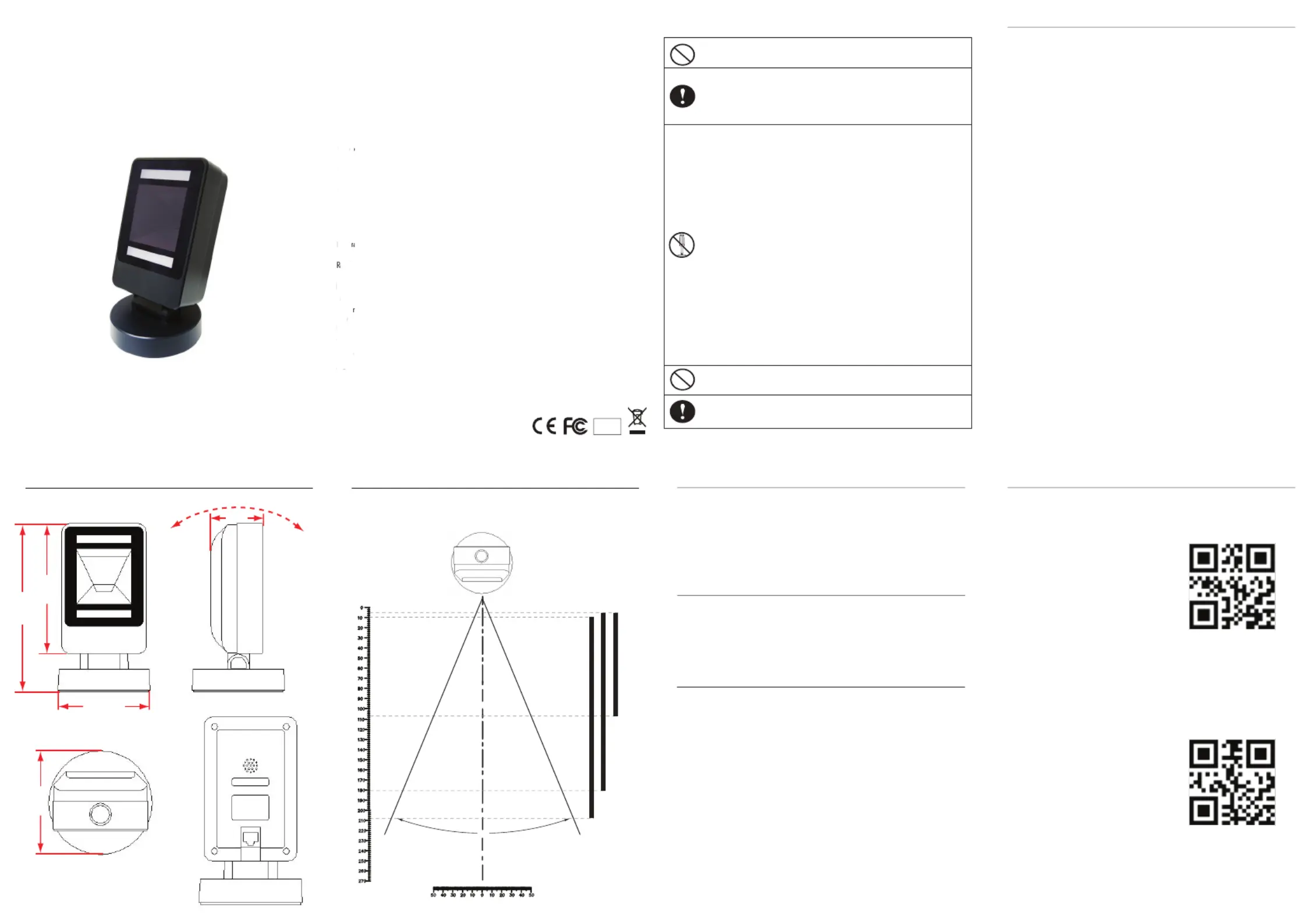

2D Presentation Barcode Scanner Quick Guide (Rev1)

P/N: 8013-0074000

SPECIFICATIONS

DIMENSIONS

SCANNING RANGE

BEEPER INDICATIONGENERAL SETTINGS

Light source visible red LED

Sensor 640 x 480

Scan rate 120 frames/sec

Resolution 4mil/ 0.1mm

PCS 20%

Width of Field 135mm (13Mil Code39)

Depth of Field 13 Mil UPC/EAN: 10 - 208mm

(Typical)

10 Mil DataMatrix: 5 - 107mm

15 Mil QR Code: 5 - 181mm

Dimension W85 x L85 x H155 mm

Weight 250g

Connector USB Type A, D - sub 9

Cable 200cm/78.7in (Interchangeable)

Interface USB HID, RS232

Indicator LED, Buzzer

Voltage 5VDC±5%

Working Current< 500mA

Standby Current< 500mA

Operating Temp. -30 to 70°C (-22°F to 158°F)

Storage Temp. -40 to 80°

C (-40°

F to 176°F)

Ambient Light 100,000 lux (Sunlight)

Drop Durability1.5M

Symbologies QR Code, DataMatrix, PDF417, Han Xin

MaxiCode and all major 1D barcodes

Quick Guide

FCC WARNING STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following

measures:

orient or relocate the receiving antenna.

crease the separation between the equipment and receiver.

onnect the equipment into an outlet on a circuit different from that to which the

eceiver is connected.

onsult the dealer or an experienced radio/TV technician for help.

ADIAN DOC STATEMENT

digital apparatus does not exceed the Class B limits for radio noise for digital

aratus set out in the Radio Interference Regulations of the Canadian Department of

munications.

ésent appareil numérique n’émet pas de bruits radioélectriques dépassant les

es applicables aux appareils numériques de las classe B prescrites dans le

ement sur le brouillage radioélectrique édicté par les ministère des Communica-

du Canada.

MARKING AND EUROPEAN UNION COMPLIANCE

ng for compliance to CE requirements was performed by an independent

ratory. The unit under test was found compliant with all the applicable Directives,

4/108/EC and 2006/95/EC.

STE ELECTRICAL AND ELECTRONIC EQUIPMENT

WEEE directive places an obligation on all EU-based manufacturers and

rters to take-back electronic products at the end of their useful life.

S STATEMENT OF COMPLIANCE

This product is compliant to Directive 2002/95/EC.

NON-MODIFICATION STATEMENT

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment

RoHS

1. Take any metals into contact with the terminals in connectors.

2. Use the scanner where any inflammable gases.

If following condition occur, immediately power off the host computer,

disconnect the interface cable, and contact your nearest dealer.

1. Smoke, abnormal odors or noises come from the scanner.

2. Drop the scanner so as to affect the operation or damage its housing.

Do Not

Do not do behavior below.

1. Put the scanner in places excessively high temperatures such as expose

under direct sunlight.

2. Use the scanner in extremely humid area or drastic temperature

changes.

3. Place the scanner in oily smoke or steam environment such as cooking

range.

4. Be covered or wrapped up the scanner in bad-ventilated area such as

under cloth or blanket.

5. Insert or drop foreign materials or water into scanning window or vents.

6. Using the scanner while hand is wet or damp.

7. Use the scanner with anti-slip gloves containing plasticizer and

chemicals or organic solvents such as benzene, thinner, insecticide etc

to clean the housing. Otherwise, it could not result fire and electrical

shock but housing may be broken and injured.

8. Scratch or modify the scanner and bend, twist, pull or heat its interface

cable.

9. Put heavy objects on interface cable.

Do not stare the light source from the scanning window or do not point the

scanning window at other people’s eyes or eyesight may be damaged

by direct exposure under the light.

Do not put the scanner on an unstable or inclined plane.

The scanner may drop, creating injuries.

Once the interface cable is damaged such as exposed or broken copper

wires, stop using immediately and contact your dealer. Otherwise, it could

result fire or electrical shock.

WARNING AND CAUTION

CHECK VERSION

DEFAULT

Single Short Beep Good read

Three beeps Successful setup

Four beeps Power up

1. The scanner works like an USB keyboard. Make sure

your host device supports USB keyboard before use.

2. Plug the scanner to the USB port of your host device.

The scanner will emit four beeps at power-up.

3. The OS will automatically intall USB driver for the

scanner if it is connected to your host device for the

first time. Wait until the installation finishes.

4. Open Notepad or any application that can accept

keyboard input. Try scanning some random barcodes

and the barcode data will be displayed.

LED INDICATION

GETTING STARTED

Green Good read

Blue Normal mode

Red Special mode (disable Code39)

(Top View)

13 Mil EAN/UPC: 10 - 208mm

15 Mil QR Code: 5 - 181mm

10Mil Data Matrix: 5 - 107mm

45

°

Unit: MM

•

R

e

•

In

c

• Co

r

e

• Co

C

A

NA

T

his

d

appa

Comm

Le

p

r

limi

te

égle

R

ti

o

n

s

CE

M

T

e

s

tin

abo

20

0

4

W

AS

T

he

W

m

po

RO

HS

48

rotatable

85

(Unit = mm, tolerance = ±0.2mm)

119.8

154.8

85
