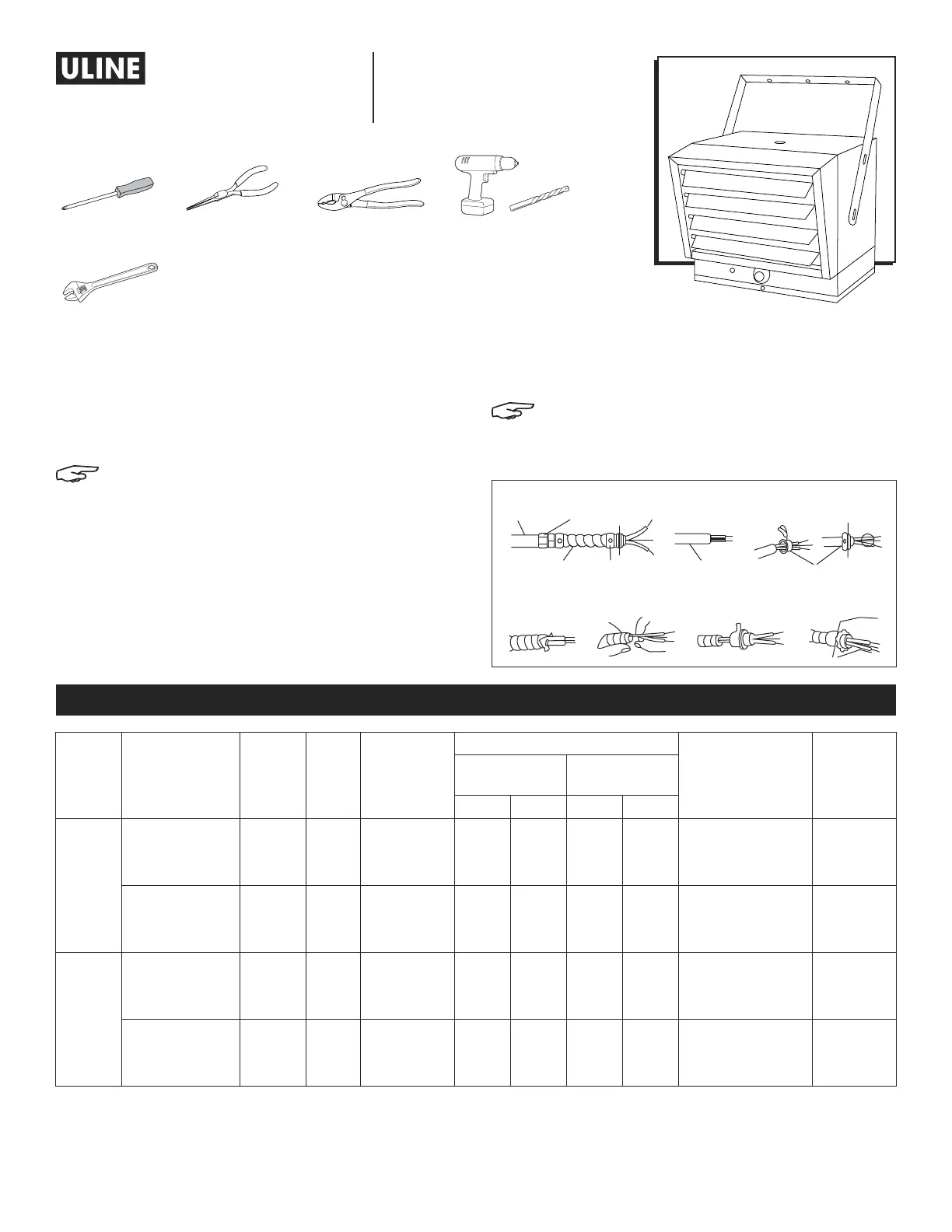

PAGE 1 OF 210624 IH-6517
1-800-295-5510
uline.com
ELECTRIC UNIT HEATERS
H-6517, H-6518
SPECIFICATIONS
HEATER RATING
AND VOLTAGE
BTU PER
HR.
PHASE
CONTACTOR
BUILT-IN
MOUNTING HEIGHT
MIN. DISTANCE
FROM HORIZONTAL
AIR THROW
MOUNTING
HOLE
TO WALL
VERTICAL
INSTALLATION
HORIZONTAL
INSTALLATION
MIN.MAX.MIN.MAX.
H-6517
* 5000 W @ 240 V
4165 W @ 240 V
3332 W @ 240 V
2500 W @ 240 V
17,065
14,215
11,365
8,533
1No6'11'6'8'18'**13"
* 3750 W @ 208 V
3123 W @ 208 V
2500 W @ 208 V
1874 W @ 208 V
12,799
10,659
8,533
6,396
1No6'11'6'8'18'**13"
H-6518
* 7500 W @ 240 V
6250 W @ 240 V
5000 W @ 240 V
3750 W @ 240 V
25,598
21,331
17,065
12,799
1Yes6'11'6'8'18'**13"
* 5625 W @ 208 V
4685 W @ 208 V
3750 W @ 208 V
2812 W @ 208 V
19,198
15,990
12,799
9,598
1Yes6'11'6'8'18'**13"
* Heater is shipped from factory wired for these wattages. Heater can be field adjusted to the other wattages.
(See Heat Output Adjustments, page 5)
**48" when heater air flow is between 45° downward and vertical.
TOOLS NEEDED
HARDWARE NEEDED
Phillips
Screwdriver
Needle Nose PliersPliersElectric Drill
and 1/4" Bit
Adjustable Wrench
• Enough 10 gauge (or thicker) insulated copper
conductor wire (with ground) to run power from the
breaker/fuse to the heater
NOTE: Only use copper wire rated at least 167°F.
Do not use aluminum wire.
• Proper size fuses and circuit breakers in accordance
with the National Electrical Code. See Heat Output
Adjustments, page 5.
• 3/8 x 2" Wood Screw Lag Bolt x 2
• 3/8" Washer x 2
• Wire connectors sized to application
NOTE: Conduit may be required. (See Figure 1)
Check local electrical codes. If wiring is run in
conduit, ensure there is enough flexible conduit
to allow heater to be turned, if necessary.
1234
Figure 1
Conduit
Flexible
Conduit
Flexible
Conduit
Connector
Flexible NM
Cable Connector
Flexible
NM Cable
Conduit
Connector
Para Español, vea páginas 8-14.
Pour le français, consulter les pages 15-21.
