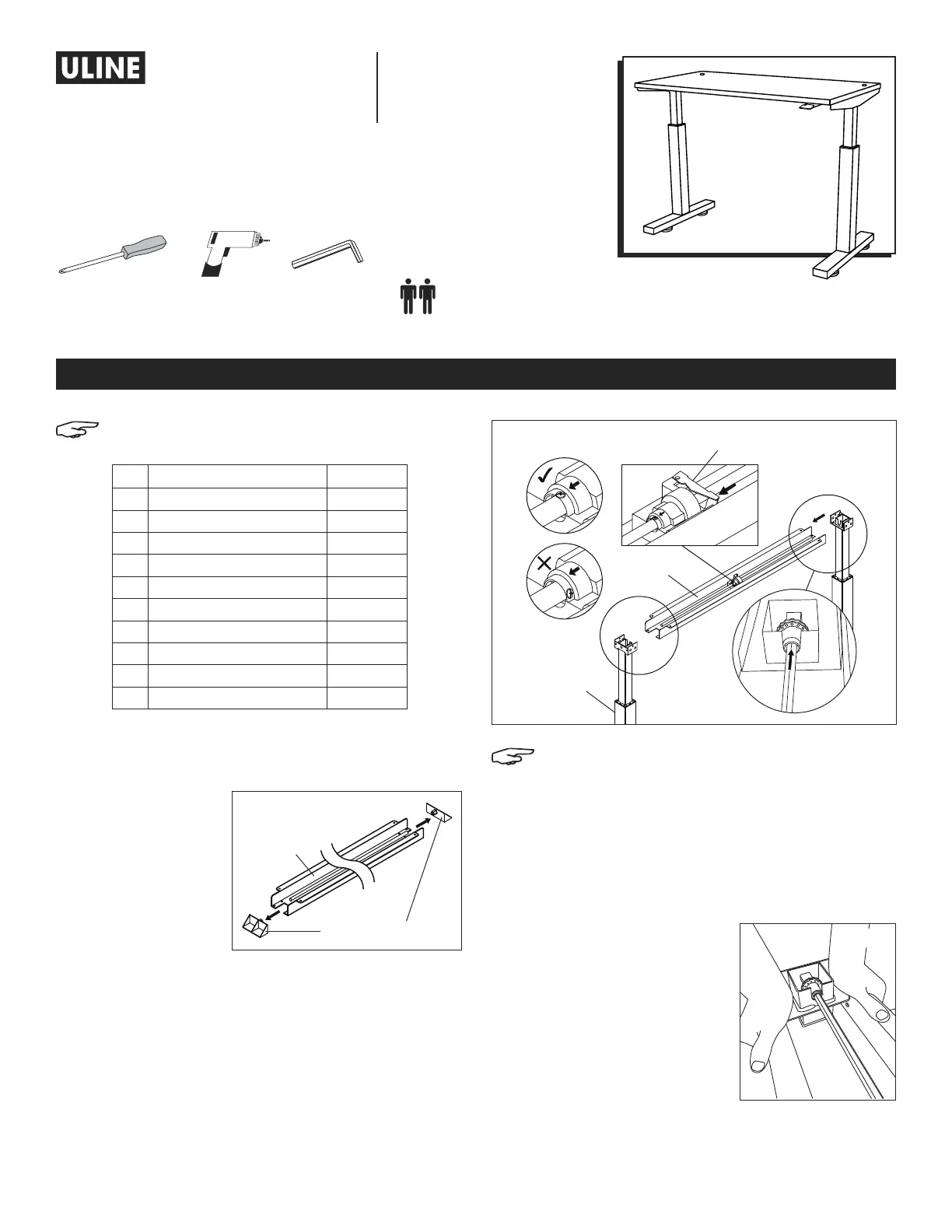

PAGE 1 OF 9 0323 IH-10242
PNEUMATIC ADJUSTABLE
HEIGHT DESK
1-800-295-5510
uline.com
H-10242, H-10243,
H-10244
NOTE: Count and inspect all pieces before
disposing of any carton or packing materials.
#DESCRIPTIONQTY
1Channel1
2Leg2
3Leg Screw, 6 x 12 mm16
4Side Frame2
5Tabletop1
6Wood Screw, 4.8 x 16 mm18
7Lever1
8Foot2
9Foot Screw, 8 x 65 mm8
10Glide4
1. Remove the two
plastic protectors
on the sides of the
channel (1).
(See Figure 1)
2. For easier assembly, place channel (1) on a raised
surface, such as a table. Insert metal rod located
inside of channel (1) into the mechanism opening
on the top of the leg (2). Repeat this step on the
opposite side. (See Figure 2)
NOTE: If it is difficult to insert the rod into the
mechanism opening on the top of the leg:
• Align the arrow on the mechanism with
the screw. If metal rod will not insert into
mechanism opening on top of leg, press
center mechanism lever and rotate metal
rod to align arrow with screw on top of metal
rod. (See Figure 2)
• If still experiencing
difficulty inserting
the rod into the
mechanism opening,
slowly press down on
top of leg to turn
mechanism opening.
As opening turns,
push rod into opening
until it is inserted fully.
(See Figure 3)
ASSEMBLY
1
Plastic Protector
Figure 1
Figure 2
2
Center Mechanism Lever
1
Phillips Head
Screwdriver
DrillAllen Wrench
(included)
TOOLS NEEDED
Two Person Assembly
Recommended
Figure 3
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
