Quickstart Guide

TCS series

TCS Series Quickstart Guide - Page - 1

Models covered by this Quick Start Guide

TCS-61, TCS-122, TCS-152, TCS-1561, TCS-B15A, TCS-B15B, TCS-B218

Thank youfor choosing a TURBOSOUNDloudspeaker product for your application. If you would like further information about

this or any other TURBOSOUNDproduct, please contact usby phone at +44 (0)1562 732299or visit our website at

www.turbosound.com.

Unpacking theLoudspeaker

After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the

consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.

System Requirements– Passive, Bi-amped and Tri-amped Loudspeakers

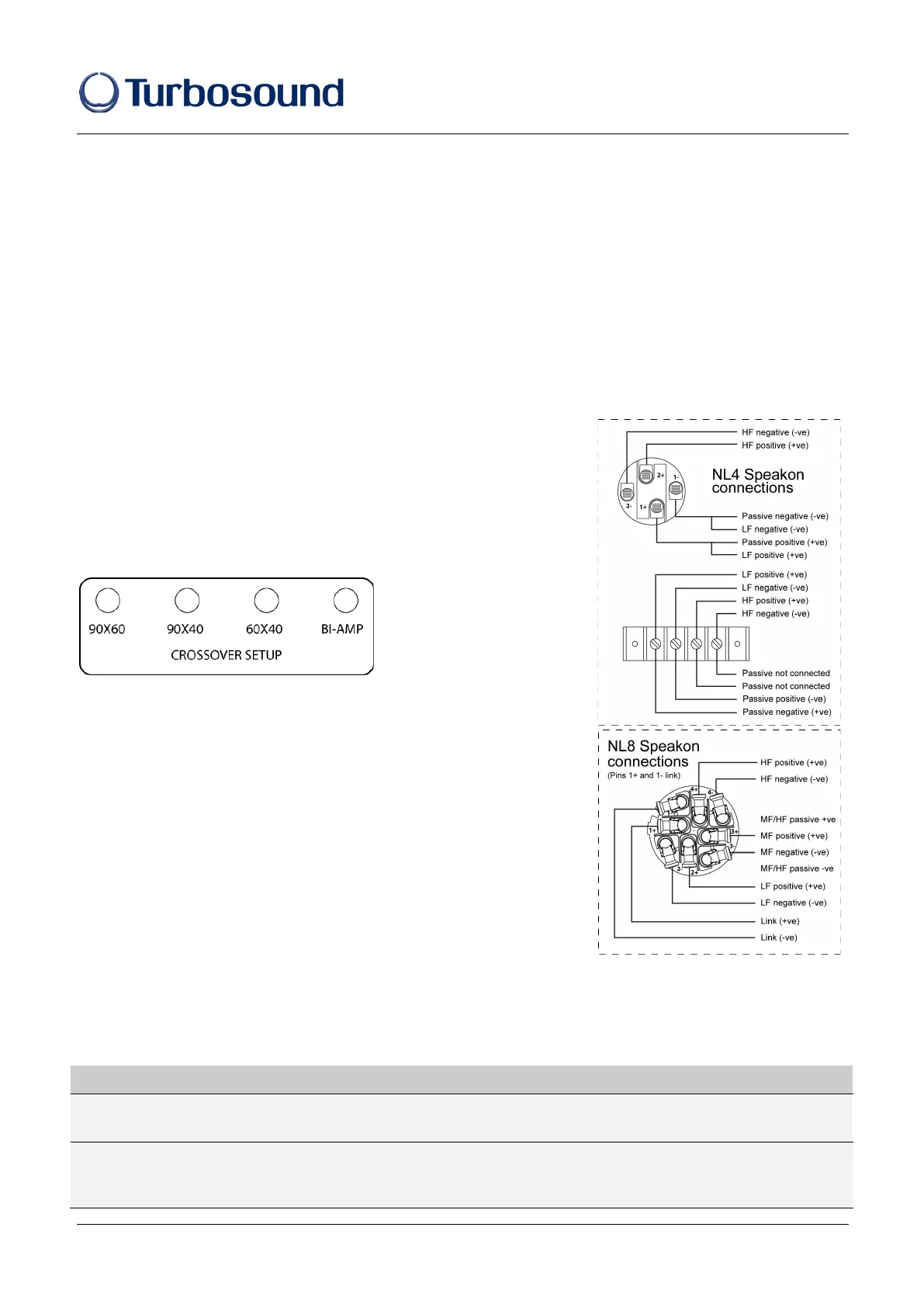

The TCS-61 two-way loudspeaker operates as a passive system and requires only one

amplifier channel for correct operation; the frequency splitting between the LF driver

and the HF driver being accomplished by the internal passive crossover network built

into each enclosure. It is equipped with a Neutrik speakONNL4 wired in parallel with

a 4-way barrier strip connector, providing input and loop-through connections to

additional TCS series loudspeakers.

The TCS-122 and TCS-152 will operate either in bi-amp mode; or in one of three

passive modes in which minor voicing adjustments are made within the crossover

networkdepending on the

supplied HF horn option, as

indicated by the position of the

internal jumper on the crossover

setup section of the connector

panelshown here (all models are

shippedby default in passive mode). They are each equipped with a Neutrik speakON

NL4connector wired in parallelwith a 4-way barrier strip. The TCS-122 and TCS-152

two-way loudspeakers in bi-amped moderequire two amplifier channels and an

external electronic crossover.

The TCS-1561 is a switchable bi-amp/tri-amp loudspeaker(shipped as bi-amp)

requiringeither two or three amplifier channels, together with an electronic

crossover. All connections are provided on two parallel-linked Neutrik speakON NL8

connectors.

To avoid wasting amplifier power you should use heavy-duty speaker cable with a

minimum wire size of 12 gauge (1.5mm²), and preferably 10 gauge (2.5mm²) for

longer runs. For extreme cable lengths be aware of cable impedanceand resistive

losses. Always observe the correct polarity as shown.

Amplifier considerations

TCSseries speaker enclosures should be driven by high quality power amplifiers designed for true professional use. Amplifiers

should be capable of delivering long term broadband power equal to the loudspeaker’s program power rating at its

stated nominal impedance. The use of under-powered amplifiers must be avoided as heavily clipped signals can cause

permanent loudspeaker damage.

Model&

TCS*61&

TCS*122&

TCS*152&

TCS*1561&

TCS*B15A&

TCS*B15B&

TCS*B218&

Impedance&

8Ω"

HF:8Ω,"LF:8Ω"

LF:8Ω,"HF:8Ω"

HF:16Ω,"MF:16Ω,"LF:8Ω"

Passive:12Ω"

8Ω"

8Ω"

4Ω"

Amplifier&

power&

350w"

HF:200w"

LF:1000w"

HF:200w"

LF:1000w"

HF:100w"

MF:200w"

LF:1000w"

1000w"

1000w"

2400w"
