Pagina 1/3

V1.0

User Manual

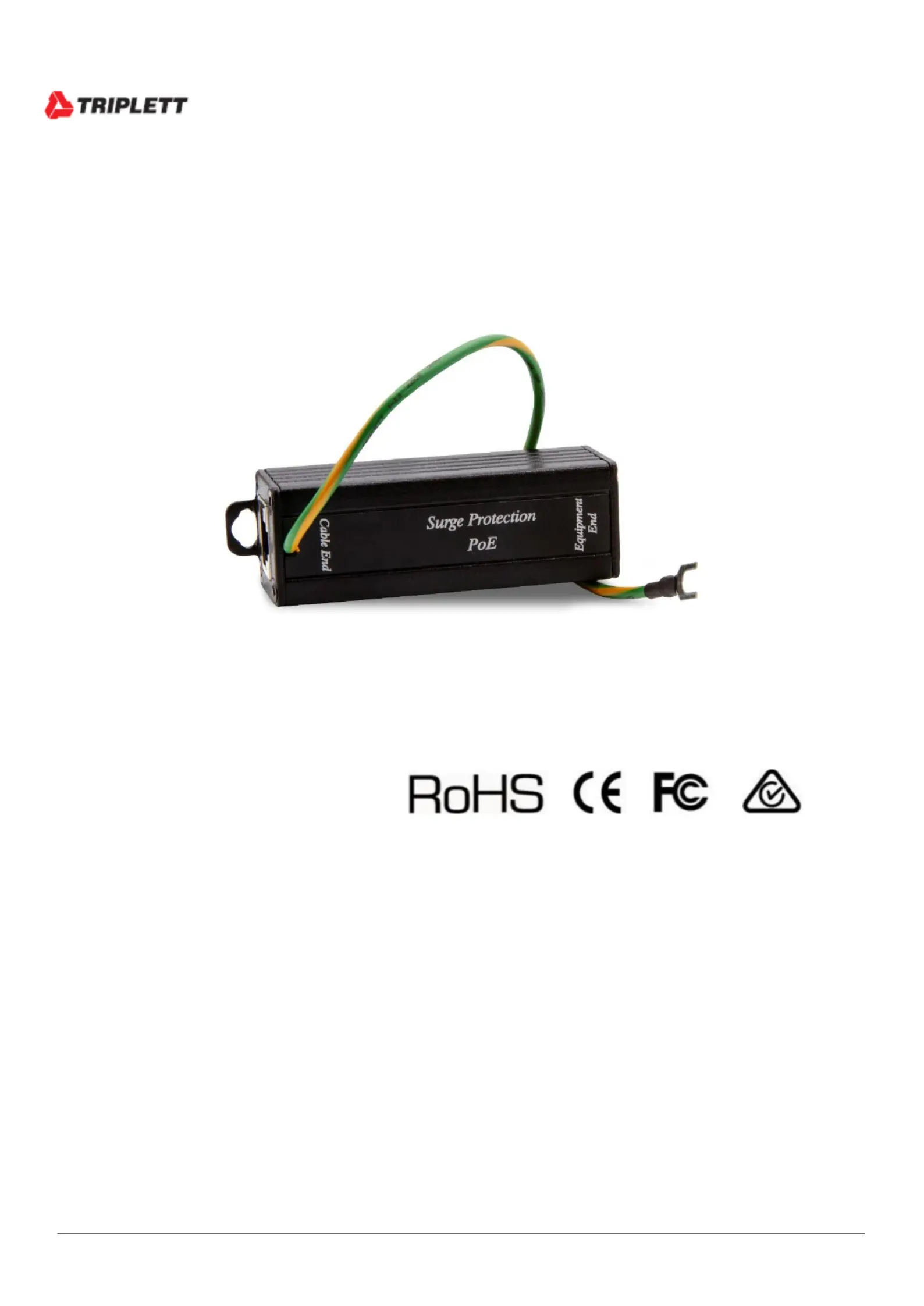

SP200

PoE Surge Protector

Introduction

The Triplett 200 is an in-line surge protector designed to protect a valuable PoE (Power over Ethernet) SP

device from high voltage surges, with network bandwidth up to 100Mbps.

Features

• Supports bandwidth up to 100Mbps

• Supports IEEE 802.3af, IEEE 802.3at PoE Standard.

• Supports Mid-span and End-span.

• Response time less than 1 ns.

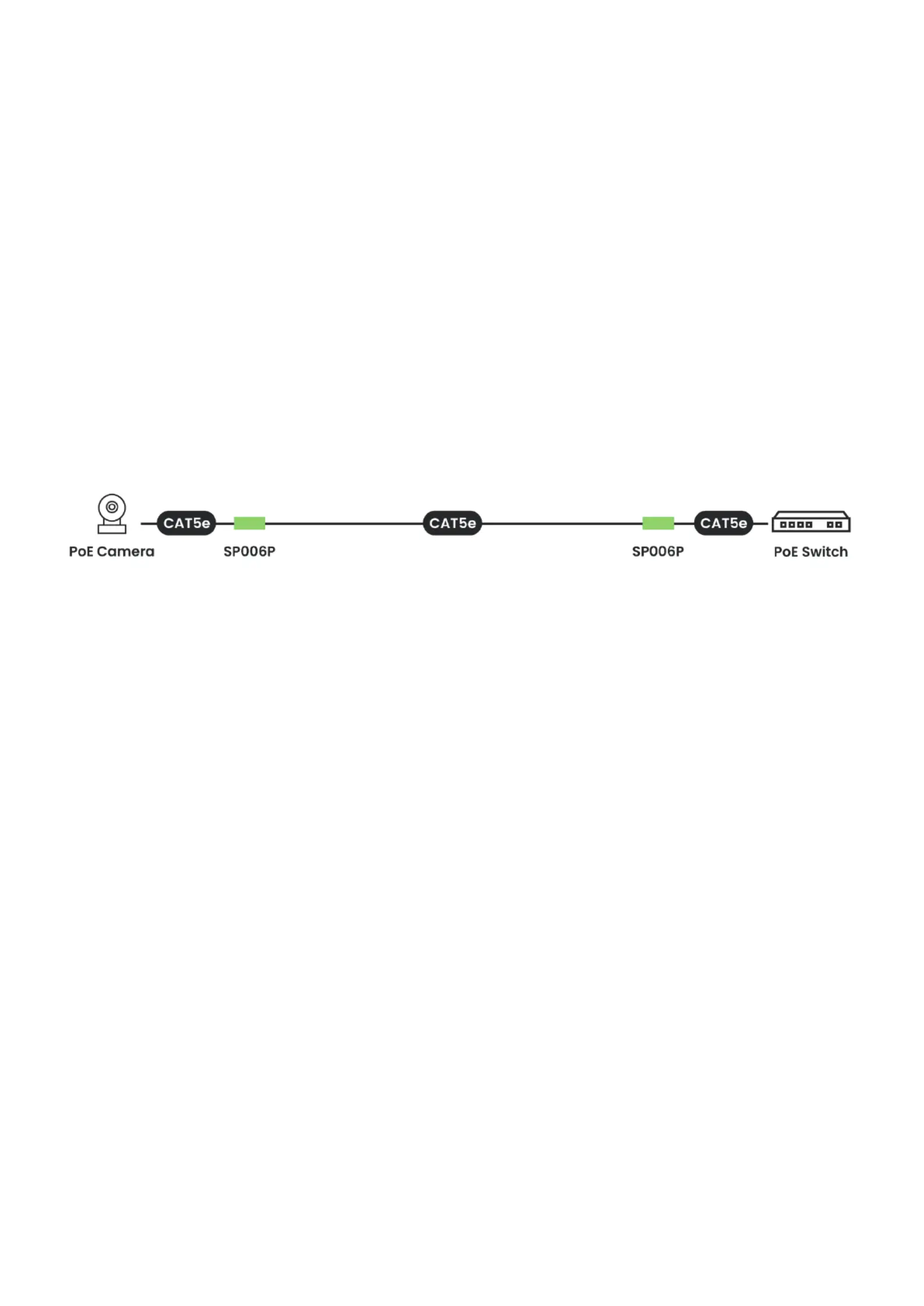

Installation View

Application

• Educational Institutions

• Server Farms

• Manufacturing Facilities

User Manual

SP006P

Specification

ITEM NO.

SP200

Support

Compliance

IEEE 802.3af, IEEE 802.3at, IEC 61000-4-5 2

Network Bandwidth

10/100Mbps

Response Time

Less than 1ns

ESD Protection

30KV(Air, Contact)

Lightning Protection

10KV@8/20us, 10KV@10/700us

Surge Life

300 times (100A per surge@ 8/20us)

Insertion Loss

Less than 0.2 dB

Return Loss (75 ) Ω

-16dB

Ports & Interfaces

Input

1 x RJ45

Output

1 x RJ45

Ambient Temperature

Operation

-10 to 75℃

Storage

-40 to 90 ℃

Humidity

95%

Physical Characteristics

Dimensions

88.8 x 25.4 x 25.4mm

Weight

80g

Warranty

Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the

products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our

products which have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors so as, in our sole judgment, to injure their

stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence, accident or which have had the serial numbers altered, defaced, or removed.

Accessories, including batteries are not covered by this warranty
