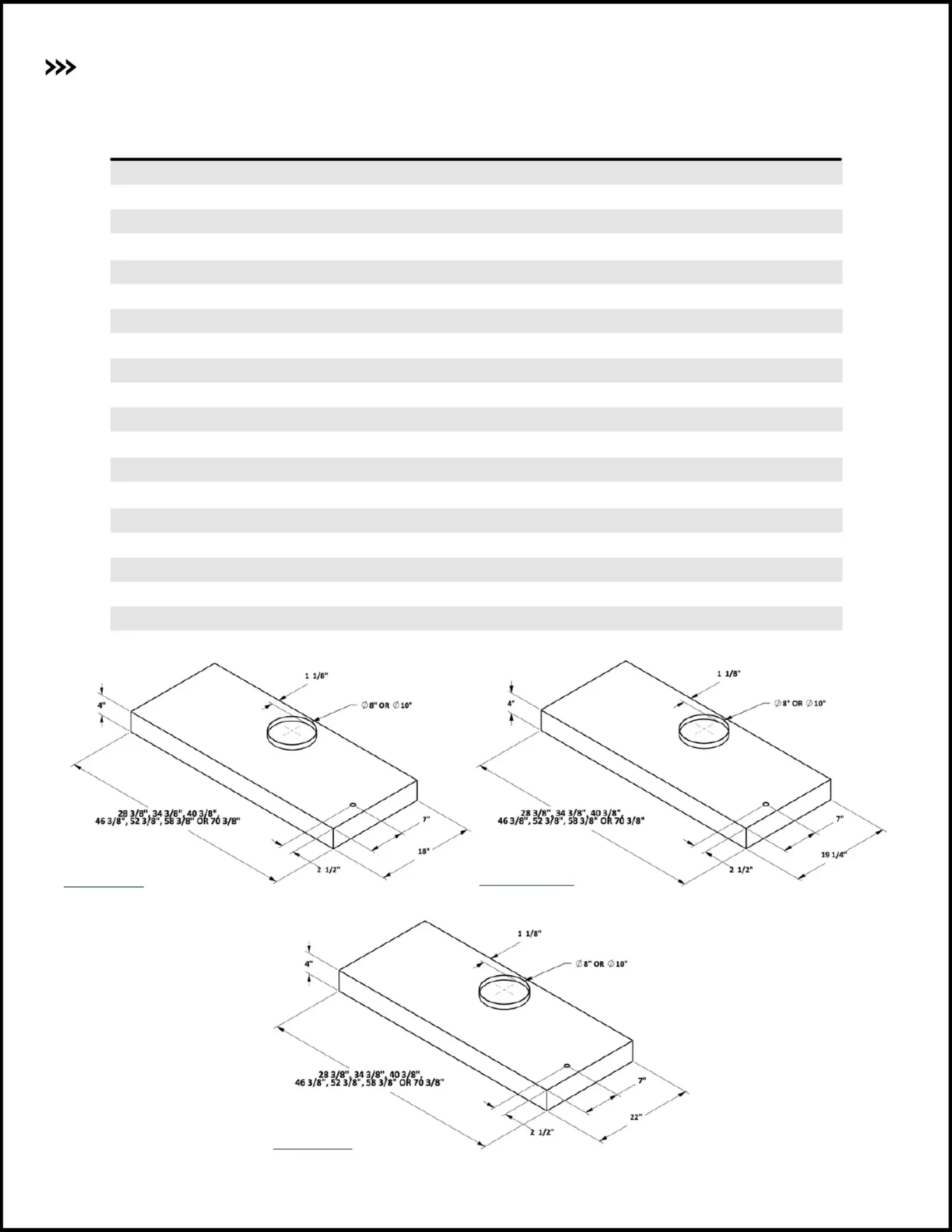

These models connect to an In-Line, Roof or Wall-

Mounted Remote Blower (sold separately). The blower

used determines the CFM. The Trade-Wind In-Line

blowers are either 836 CFM or 1266 CFM.

Before beginning installation, please thoroughly read and

become familiar with these instructions. Installation and

service must be completed by a qualified installer. Failure to

properly install this product may void the warranty.

VSL430BF

VSL436BF

VSL436-0-19BF

VSL436-0-22BF

VSL442BF

VSL442-0-19BF

VSL442-0-22BF

VSL448BF

VSL448-0-19BF

VSL448-0-22BF

VSL454BF

VSL454-0-19BF

VSL454-0-22BF

VSL460BF

VSL460-0-19BF

VSL460-0-22BF

VSL472BF

VSL472-0-19BF

VSL472-0-22BF

18"

18"

19 ¼"

22

18"

19 ¼"

22"

18"

19 ¼"

22"

18"

19 ¼"

22"

18"

19 ¼"

22"

18"

19 ¼"

22"

28 ⅜"

34 ⅜"

34 ⅜"

34 ⅜"

40 ⅜"

40 ⅜"

40 ⅜"

46 ⅜"

46 ⅜"

46 ⅜"

52 ⅜"

52 ⅜"

52 ⅜"

58 ⅜"

58 ⅜"

58 ⅜"

70 ⅜"

70 ⅜"

70 ⅜"

MODEL

FRONT TO

BACK

WIDTHCFM

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

PERFORMANCE QUALITY CUSTOMER SERVICE··

REVISED: JANUARY 1, 2024

INSTALLATION INSTRUCTIONS

USE & CARE GUIDE

VSL 400 SERIES

FOR REMOTE/IN-LINE BLOWERS

Installer:

Owner:

Please leave Installation Instructions with the range hood liner.

Please keep Installation Instructions for local electrical inspector’s use and for future reference.

WARNINGS:

IMPORTANT:

TIPS:

Must be followed carefully to avoid personal injury.

Must be followed carefully to avoid damage and incorrect installation.

Contains helpful information to facilitate installation.

WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:

a)Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the

manufacturer at the address or telephone number listed in the warranty.

b) Before servicing or cleaning unit, switch power off at service panel, lock service panel, and lock the service

disconnection means to prevent power from being switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION:For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

READ AND SAVE THESE INSTRUCTIONS

WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a)Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.

Heat oils slowly on low or medium settings.

©2023 TRADE-WIND MANUFACTURING, LLC

PROVERBS 22:29

1

Product specificaties
