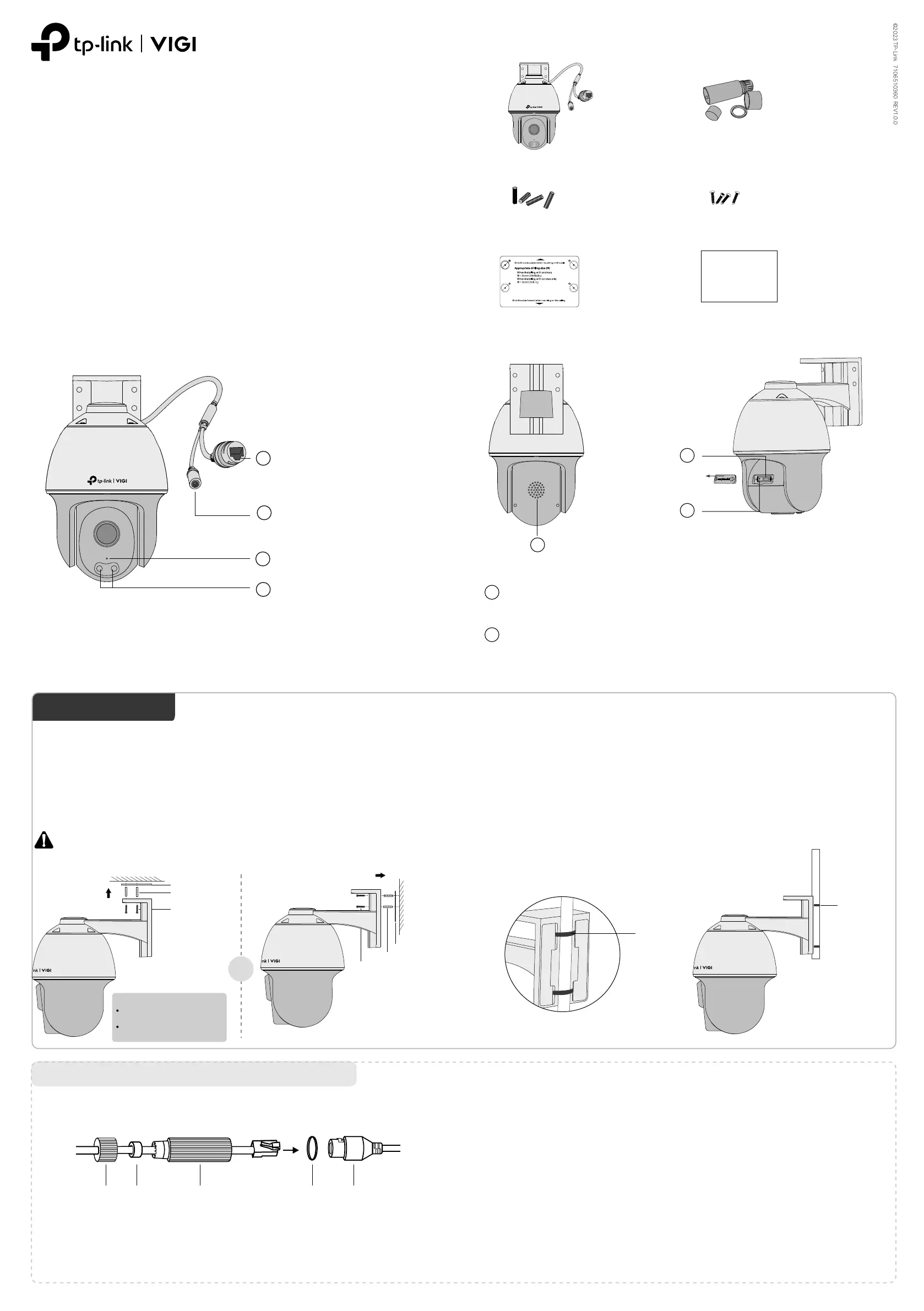

Quick Start Guide

*Images may dier from actual products.

Appearance

Power Supply Interface

(12V DC)

5

Built-in Microphone

RJ45 Network Interface

(supports PoE)*

White LED

1

2

4

Package Contents

Network Camera

Waterproof Cable

Attachments

Quick Start Guide

Quick

Start

Guide

Option 1: Wall/Ceiling Mounting

1. Stick the mounting template to the desired mounting place. Drill 4 screw holes

according to the template.

2. Insert the anchors into the holes, use the provided screws to x the camera’s

bracket to the wall or ceiling.

Installing Waterproof Cable Attachments

Wall Mounting

Install the waterproof cable attachments for the network interface when the camera is installed outdoors.

Note: Make sure each part is securely attached and the waterproof rings are ush to keep out water.

1. Route the network cable through the following components in order: x nut,

waterproof ring, and then the waterproof jacket.

2. Fix the O-ring to the network interface of the camera and connect the network

cables.

1

Mount Camera

Fix Nut

Waterproof

Ring

O-ring

Network

Interface

Waterproof

Jacket

OR

Mounting Template

Anchor

Self-tapping Screw

Anchor

Self-tapping Screw

Mounting Template

Option 2: Pole Mounting

1. Thread each of the two cable ties through the slits on the back of the camera’s

bracket indicated below.

2. Slip the two cable ties through the pole. Tighten them to rmly attach the pole.

Cable Tie

Cable Tie

3

Speaker

6

microSD Card Slot

Insert a microSD card for local storage. Initialize the SD card via VIGI app or other

management tools before recording videos.

7

Reset Button

Long press the button to reset the camera to factory settings.

6

7

Note: Before inserting the microSD card or resetting the

camera, rotate the sphere and unfasten the two xed

screws to remove the cover.

3. Attach the network interface with the waterproof jacket, then twist to lock.

4. Insert the waterproof ring into the waterproof jacket. Rotate the x nut to secure

it to the waterproof jacket.

Mounting Template

Anchors x 4

Screws x 4

©2023 TP-Link 7106510360 REV1.0.0

Note: Make sure that the wall is strong enough to withstand 3 times the

weight of the camera and mounting bracket .

Φ6 mm Φ3.5 mm

When installing with anchors

Φ = 6 mm (15/64 in.)

When installing with screws only

Φ = 3 mm (1/8 in.)

Appropriate drilling size (Φ)
