OR

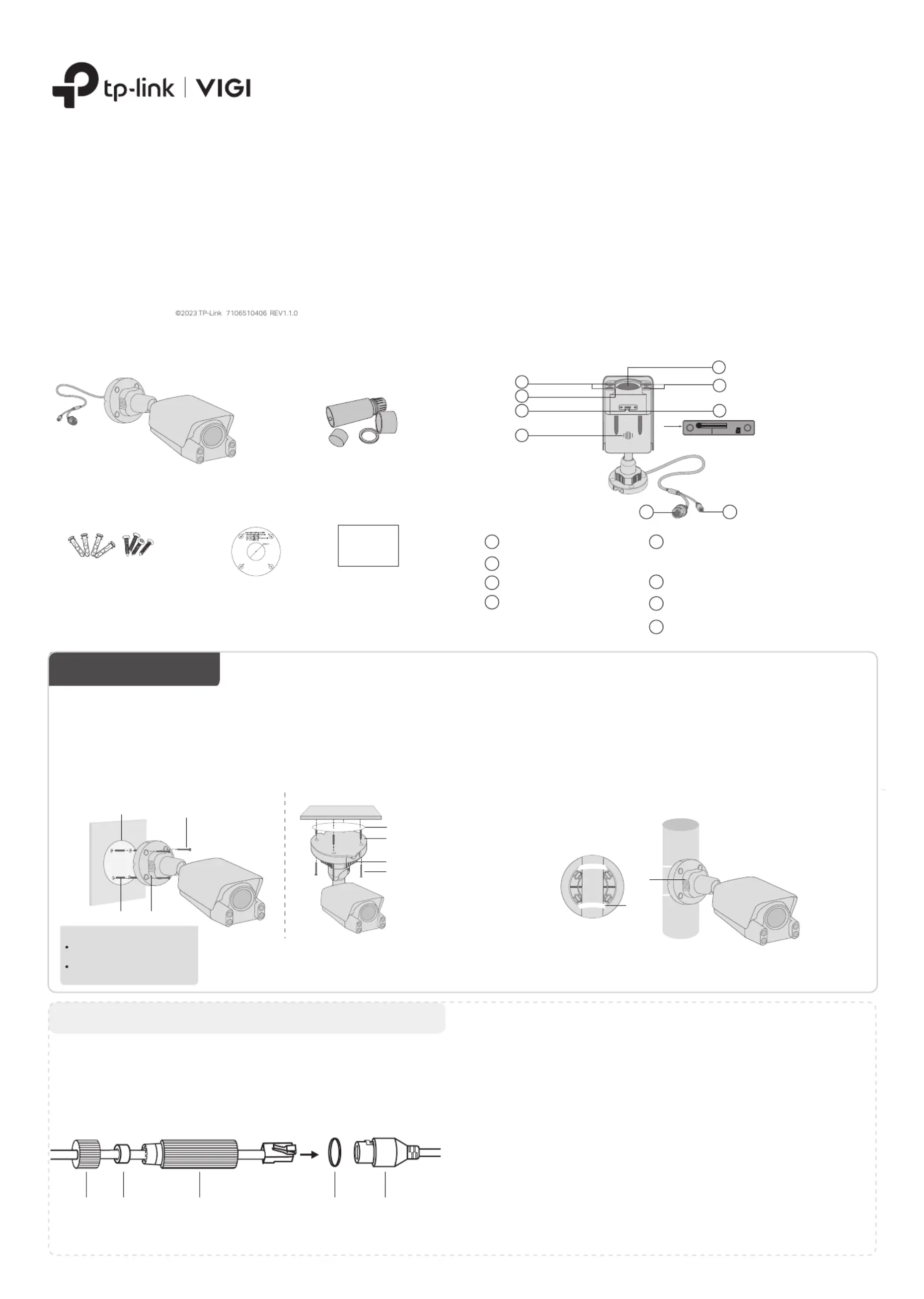

Quick Start Guide

*Images may dier from actual products.

Appearance

Reset

4

Microphone

3

White LED

2

Power Supply Interface (12V DC)

8

7

RJ45 Ethernet Port (supports PoE)

6

Speaker

5

Lens

1

4

3

2

7

Package Contents

Network Camera

Waterproof Cable

Attachments

Quick Start Guide

Anchors and Screws

Quick

Start

Guide

•

Make sure your power supply matches your camera.

The camera’s standard power supply is 12V DC or

PoE (802.3af/at). The power source should comply

with Power Source Class 2 (PS2) or Limited Power

Source (LPS) of IEC 62368-1.

•Make sure that the wall is strong enough to

withstand 4 times the weight of the camera and

mounting bracket.

• If you are uncertain or uncomfortable performing the

installation, consult a qualied electrician.

Safety First:

Installing Waterproof Cable Attachments

Install the waterproof cable attachments for the network

interface when the camera is installed outdoors.

Note: Make sure each part is securely attached and the waterproof

rings are ush to keep out water.

Done! The network interface is now waterproof.

1

Mount Camera

Fix Nut

Waterproof

Ring

O-ring

Network

Interface

Waterproof

Jacket

1. Route the network cable through the following

components in order: x nut, waterproof ring, and then

the waterproof jacket.

2. Fix the O-ring to the network interface of the camera and

connect the network cables.

3. Attach the network interface with the waterproof jacket,

then twist to lock.

4. Insert the waterproof ring into the waterproof jacket.

Rotate the x nut to secure it to the waterproof jacket.

5

2

6

Note: Before inserting the microSD

card, unfasten the two xed screws to

remove the cover.

Mounting Template

1

microSD Card Slot

Insert a microSD card for local storage. Initialize

the SD card via VIGI app before recording videos.

Option 1: Wall/Ceiling Mounting

1. Stick the mounting template to the desired mounting place. Drill

4 screw holes according to the template.

2. Insert the anchors into the holes, use the provided screws to x

the camera’s bracket to the wall or ceiling.

3. Loosen the nut and rotate the camera to the desired position,

then tighten the nut.

Option 2: Pole Mounting

1. Thread each of the two cable ties through the slits on the back

of the camera’s bracket indicated below.

2. Slip the two cable ties through the pole. Tighten them to rmly

attach the pole.

3. Loosen the nut and rotate the camera to the desired position,

then tighten the nut.

8

Long press the button to reset

the camera to factory settings.

Reset microSD

Mounting Template

NutAnchor

Self-tapping Screw

Cable Tie

Mounting Template

Anchor

Nut

Self-tapping Screw

Nut

Φ6 mm Φ3.5 mm

When installing with anchors

Φ = 6 mm (15/64 in).

When installing with screws only

Φ = 3 mm (1/8 in.)

Appropriate drilling size (Φ)
