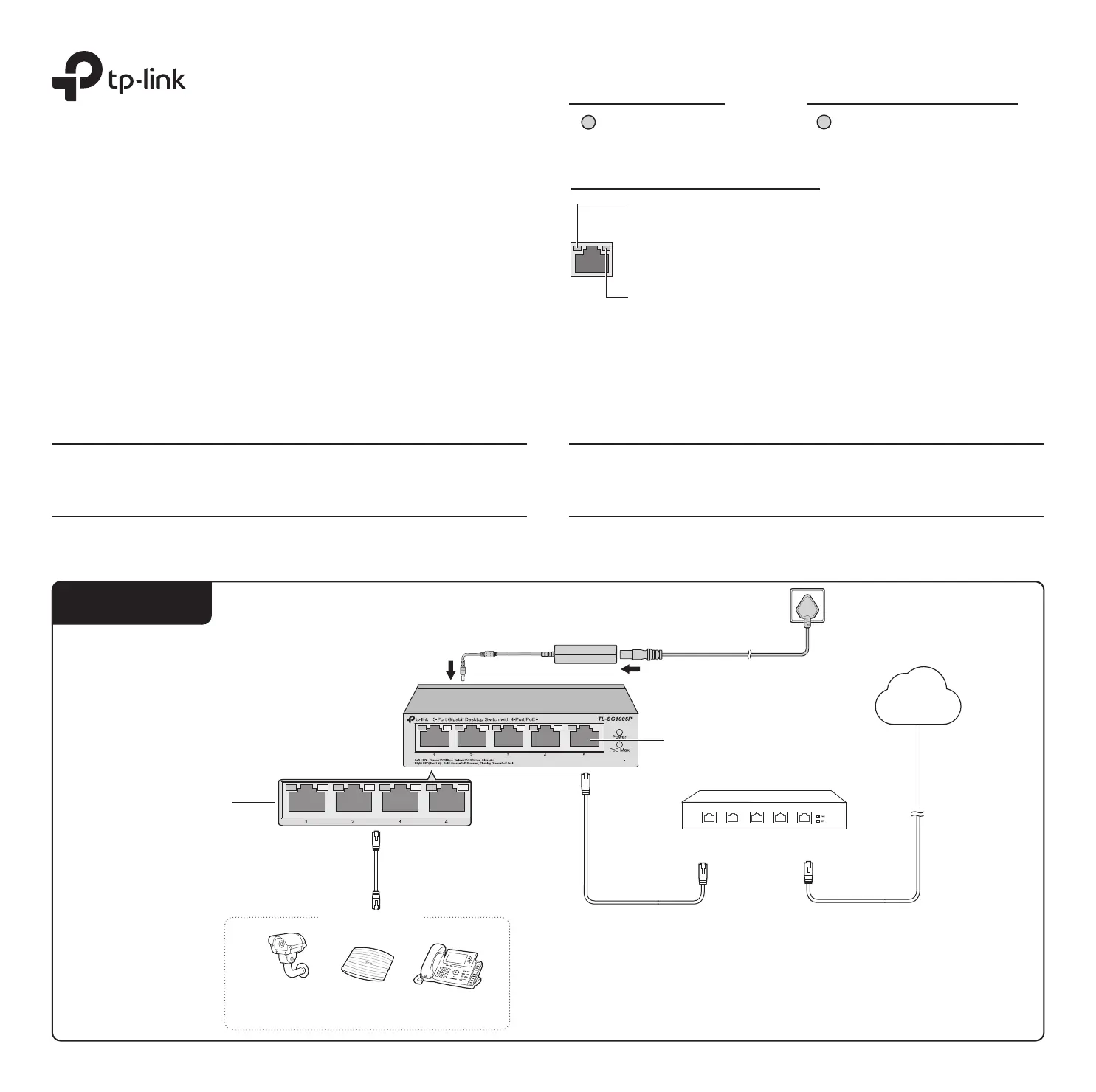

Connection

© 2024 TP-Link 7106510936 REV4.3.0

Installation Guide

5/6/16-Port Gigabit Desktop PoE Switch

LED Explanation

Note: For simplicity, we will take TL-SG1005P for example throughout this Guide.

Note:

1.PoE ports can also connect to non-PoE devices, but only transmit data.

2. TL-SG1005LP can supply up to 30 W for each PoE port and 40 W for all PoE ports.

3. TL-SG1005P can supply up to 30 W for each PoE port and 65 W for all PoE ports.

4. TL-SG1006PP can supply up to 60 W for port 1, 30W for other single PoE port, and 64 W

for all PoE ports.

5. TL-SG116P can supply up to 30 W for each PoE port and 120 W for all PoE ports.

DC Power Adapter

AC Power Cord

IP CameraAPIP Phone

Router

LAN PortWAN Port

Internet

Ethernet Ports (1-5)

PoE Ports (1-4)

Power

On: Power on

O: Power o

Power

Link/Act and PoE Status

On: Providing PoE power

Flashing: Current-overload/Short-circuit

O: Not providing PoE power

On (Green): Connected to a 1000 Mbps

device

On (Yellow): Connected to a 10/100

Mbps device

Flashing: Transmitting/receiving data

O: No device is connected to the

corresponding port.

PoE MAX

PoE Max

TL-SG1005LP

On: 33 W ≤ Total power supply < 40 W

Flashing: Total power supply ≥ 40 W

O: Total power supply < 33 W

TL-SG1005P

On: 58 W ≤ Total power supply < 65 W

Flashing: Total power supply ≥ 65 W

O: Total power supply < 58W

TL-SG116P

On: Total power supply ≥ 113 W

Flashing: Total power supply ≥ 113 W and

lasts for more than 2 minutes

O: Total power supply < 113W

PoE Devices

Switches Explanation

Priority(for TL-SG116P)

O: All the ports transmit data with the same priority.

On: The corresponding ports transmit data with a higher priority than other ports. When congestion

occurs, packets which are transmitted by the ports with a higher priority occupy the whole bandwidth.

Isolation(for TL-SG116P)

O: Ports can transmit data with each other.

On: The corresponding ports cannot transmit data with other downlink ports. They can transmit data

only with the uplink ports (ports 15-16 of TL-SG116P).

Extend(for TL-SG1005LP/TL-SG1005P/TL-SG1006PP/TL-SG116P)

O: The corresponding ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.

On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m away.

Recovery(for TL-SG1005LP/TL-SG1005P/TL-SG1006PP/TL-SG116P)

O: The PoE Auto Recovery function is disabled.

On: The switch will constantly detect the working status of a PoE powered device (PD). When the switch

nds that the PD works abnormally, the switch will reboot it.

Note: The numbers in brackets indicate the ports where the feature takes eect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.

TL-SG1006PP

On: 57 W ≤ Total power supply < 64 W

Flashing: Total power supply ≥ 64 W

O: Total power supply < 57W
