UNIFIT ROUGH-IN

INSTALLATION INSTRUCTION

Rev. 10/17

0GU185

PEOPLE-FIRST INNOVATION

™

P: 888-295-8134

F: 770-282-8701

MATERIALS REQUIRED:

1. Mounting bolts

2. Wax ring/seal

TOOLS NEEDED:

1. Tape measure

2. Screwdriver

3. Putty knife

4.

Power drill, ⁄”drill bit (for

woo

d floor

installation) &

⁄

”

masonry drill bit

(for

masonry/tile floor installation)

- for mounting block

5. Pencil

PACKAGE CONTENTS:

1. Rough-In - 1

2. Mounting screw w/washer - 2

3. Anchor - 2

4. Installation template - 1

5. Installation instruction - 1

“RI”

12inch

10inch

14inch

TSU08W.12

(supplied)

TSU08W.10

(optional - must be purchased separately)

TSU08W.14

(optional - must be purchased separately)

Rough-InPartNumber

6"

4"

8"

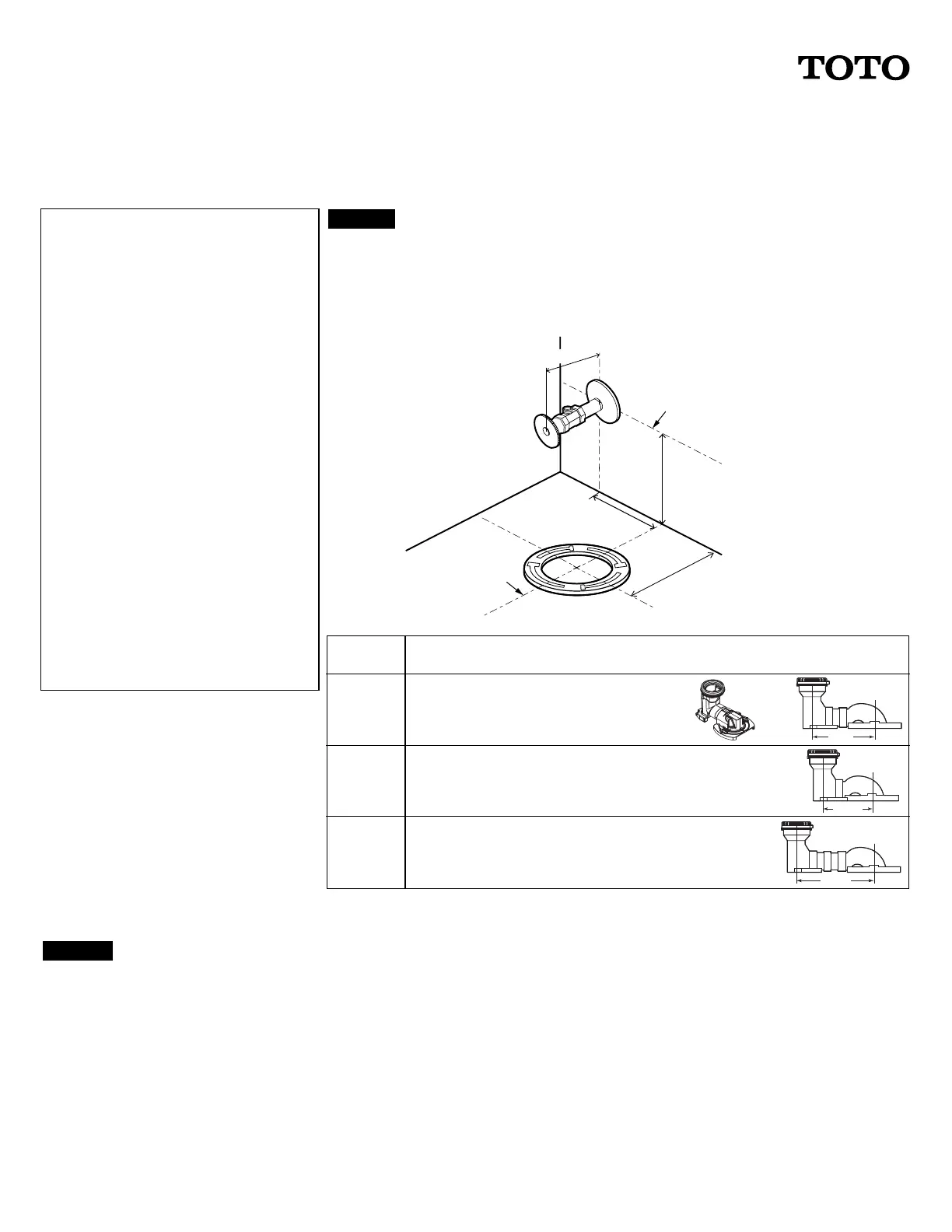

STEP 1 PIPING CHECK AND ROUGH-IN

1. In order for your new TOTO toilet to fit correctly, check the

dimensions in the Table below. Rough-In (“RI”): Distance between

finished wall to the center of the toilet outlet.

2. Remove existing toilet (if necessary)

Please make sure that you have the correct outlet connection part.

1155 Southern Road

Morrow, GA 30260

totousa.com |

STEP 2 INSTALLING MOUNTING BOLTS

1. Cover/block the drain opening to prevent items from falling into the drain and prevent smell from

coming up.

2. Clean any debris out of the closet flange.

3. Install the mounting bolts (either provided by the original closet flange or new wax ring) into the slots

of the flange. Insert the bolts into the slot with its head down and threaded shank pointed upward.

PAGE 1 of 2

Centerline of stop valve

Finished wall

4¾”

(120mm)

Centerline of ange

4¾”

(120mm)

3½” (90mm) M

AX

“RI”
