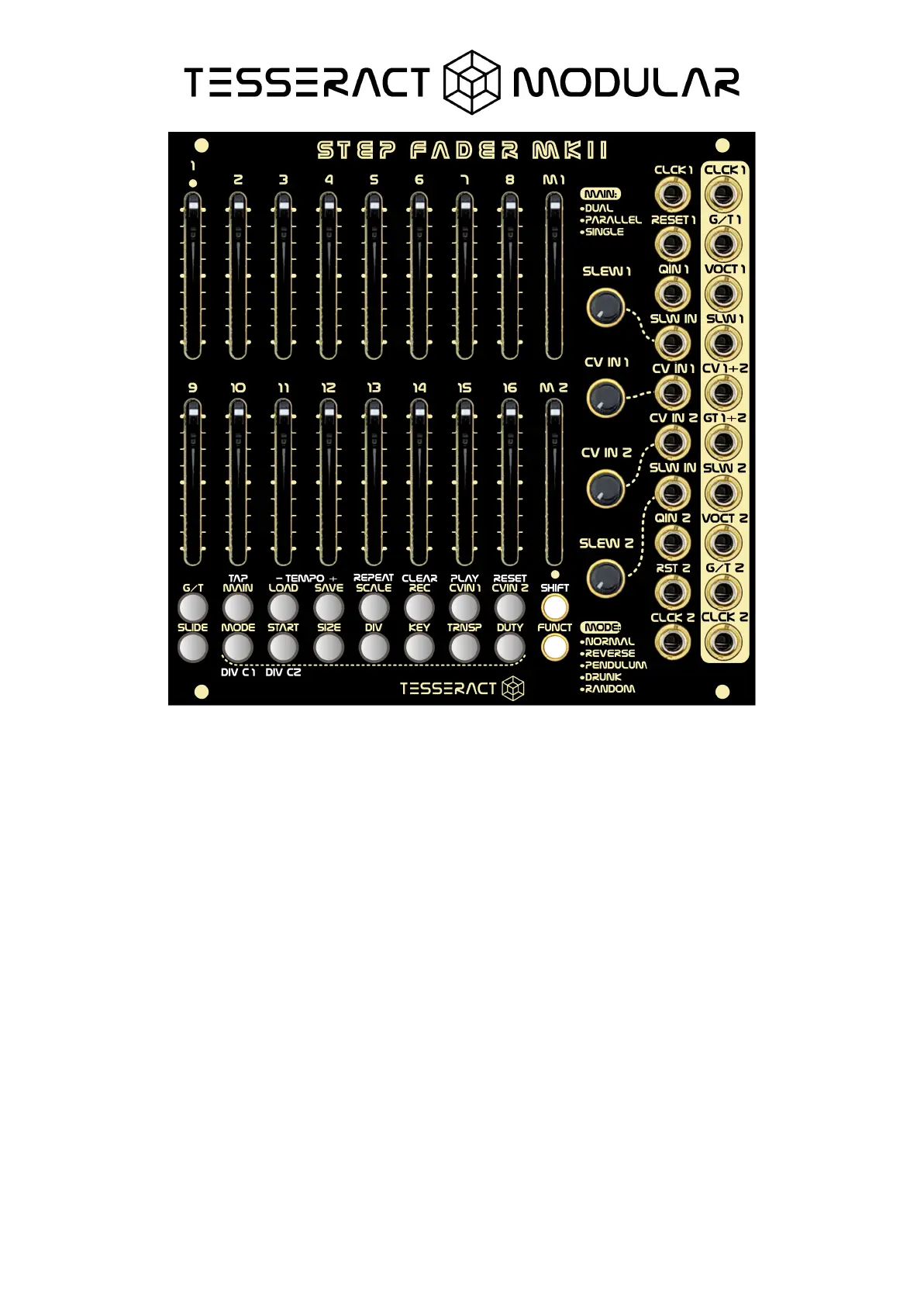

Step Fader mkII
Step Fader mkII it’s a ‘hands on’ eurorack dual sequencer, featuring two 8 step lines or one with 16 steps plus
quantizer, slew limiter, internal clock generator, CV inputs to control several parameters and more…
Each sequencer has independent settings for the play mode, start point, length, clock divider, transposition
and duty cycle.
The 2 channels of the quantizer can be used for processing external signals, and the same applies for the slew
limiter.
There are also 16 presets to store & recall all the sequencer settings.
The range of the sequencers is 5V approx, and the sum output (CV 1+2) is about 10V.

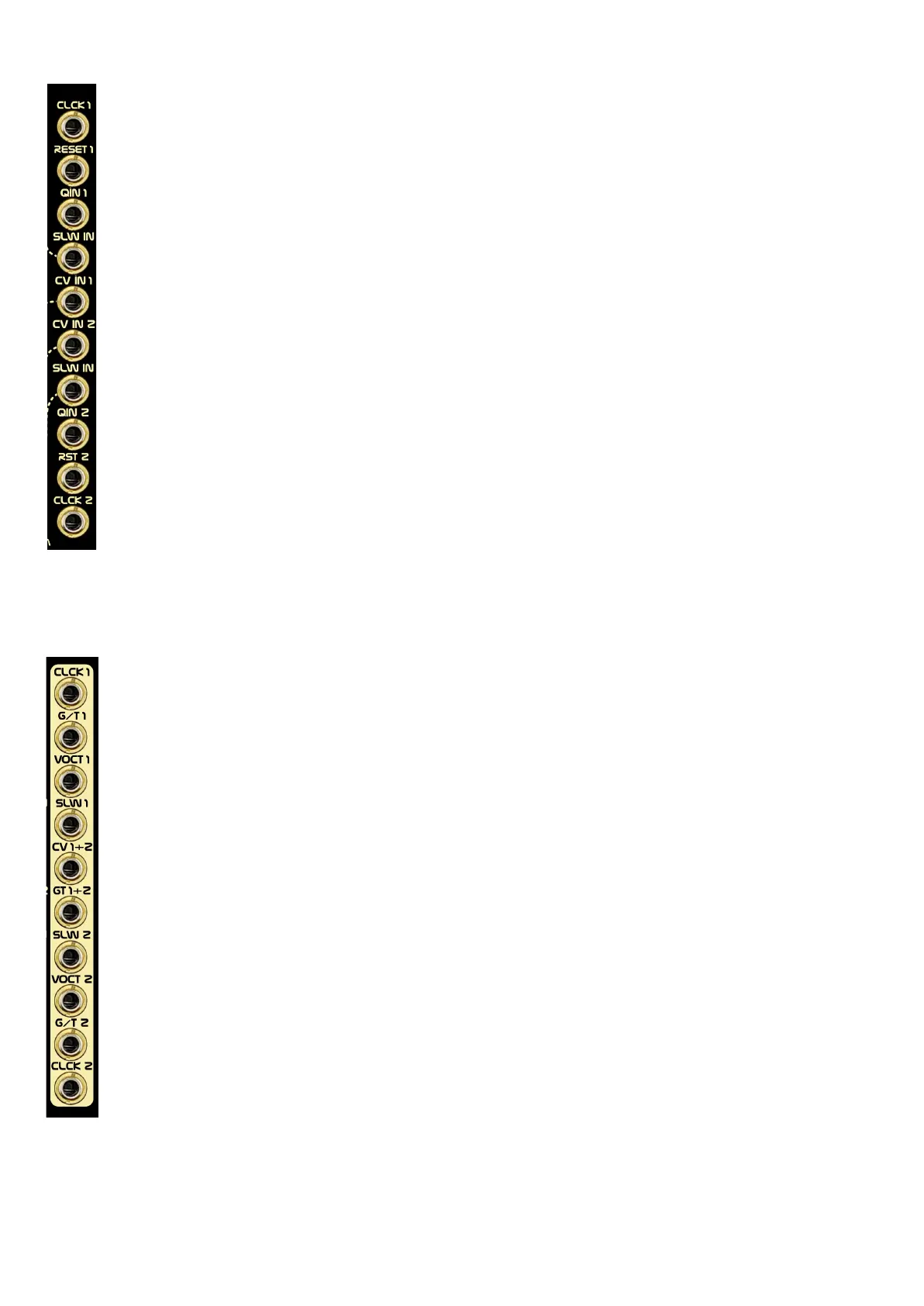

INPUTS
● clock input for sequencer 1 (normalized to CLK 2)CLK 1
● reset input for sequencer 1RESET 1
● input for quantizer 1, range 0 to +10 voltsQIN 1
●SLW IN input for the slew limiter 1
● CV input for modulationCV IN 1
● CV input for modulationCV IN 2
● input for slew limiter 2SLEW IN
● input for quantizer 2, range 0 to +10 voltsQIN 2
● reset input for sequencer 2RESET 2
● clock input for sequencer 2CLK 2
OUTPUTS
● clock output for sequencer 1CLK 1
● gate & trigger 1 outputG/T 1
● quantizer 1 output (V/OCT)VOCT 1
●SLW 1 slew limiter 1 output
● sum of both CVs (taken from both slew outs)CV 1 + 2
● sum of both G/T outputs (aka OR)GT 1+2
● slew limiter 2 outputSLEW 2
● quantizer 2 output (V/OCT)VOCT 2
● gate & trigger 2 outputG/T 2
● clock output for sequencer 2CLK 2
FUNCTION BUTTON AND KEYPAD MODES
The 16 illuminated buttons can be used to set several parameters, even to play the sequencer as a keyboard.
Clicking on the button will make the keypad blink, clicking again on one of the 16 illuminated buttonsFUNCT
will select the overall behavior (aka ).key modes
The selected will remain active, with the exception of ‘LOAD’ and ‘SAVE’. For those ones, thekey mode
previous key mode will be recalled after loading or saving the actual state of the sequencer.
G/T
Gate / Trigger mode (long press will set gate, short set trigger)
MAIN
sets the ‘Main Setup’ of the module (dual, parallel, single)
LOAD
load preset
SAVE
save preset
SCALE
set the scale for the quantizer of both sequencers
REC
record mode
CV IN 1
set the destination for the CV input 1
CV IN 2
set the destination for the CV input 2
SLIDE
quantizer will do a slide when a step is active
MODE
set the play mode of each sequencer
START
set the starting step of each sequencer
SIZE
set the length of sequencer
DIV
set the clock divider of each sequencer
KEY
use the keypad to play like a sort of keyboard
TRNSP
set the transposition of each quantizer (from -19 to +19 semitones)
DUTY
set the duration of the triggers (from 5 milliseconds to ⅞ of the step length)
